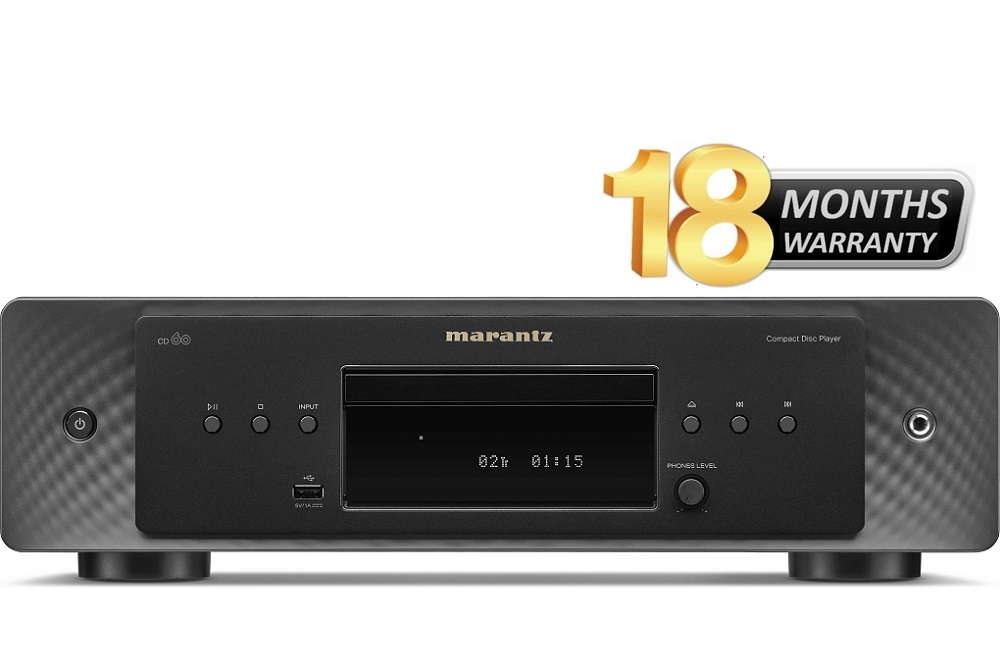

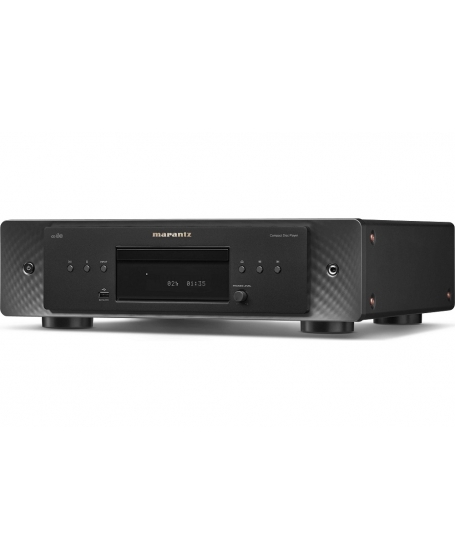

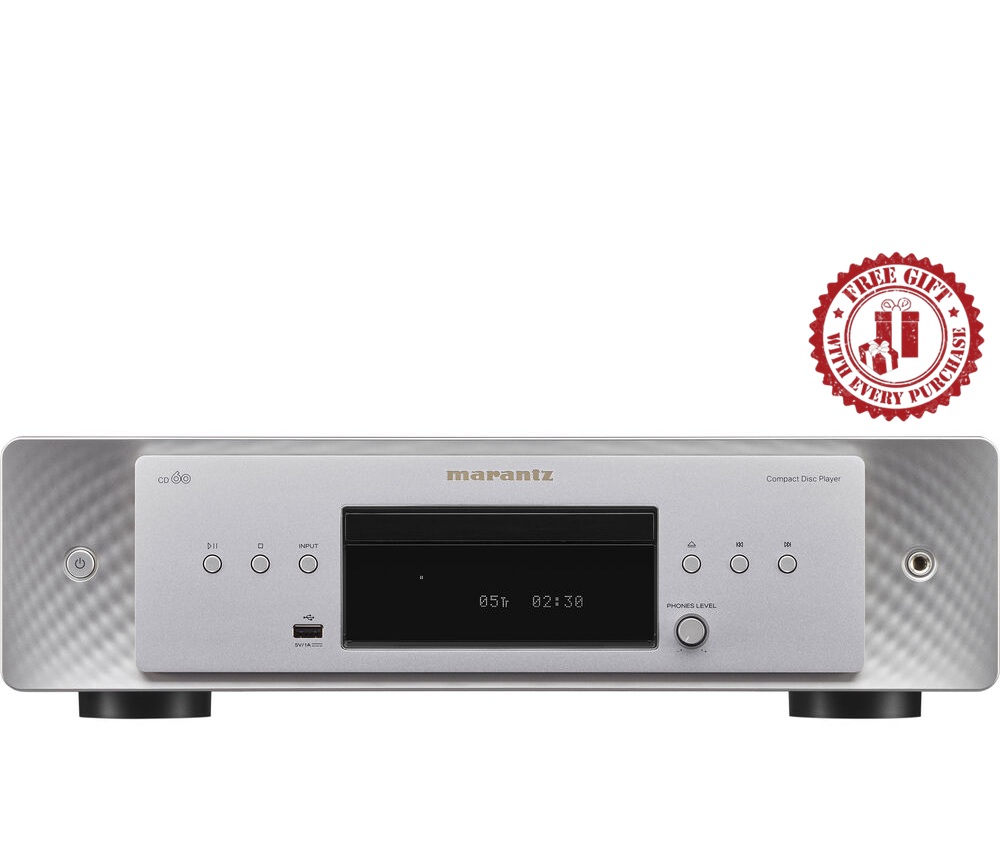

Marantz CD 60

HIGH-QUALITY CD PLAYER WITH MODERN DESIGN

Featuring contemporary styling and excellent sound

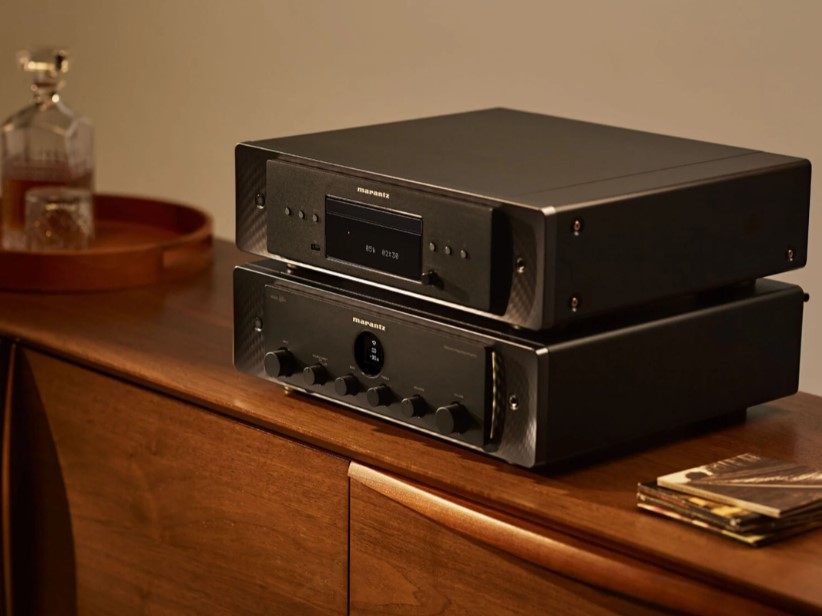

Iconic design for modern CD enthusiasts

Built with high quality materials and Sound Master tuned to inspire listeners to discover new details in their favorite CDs.

Believe in Quality

Rich, Warm, and Spacious Sound

Expertly tuned by the legendary Marantz Sound Master for The Most Musical Sound. CD 60 is the CD player your cherished collection deserves.

Optimized
HDAM Circuit

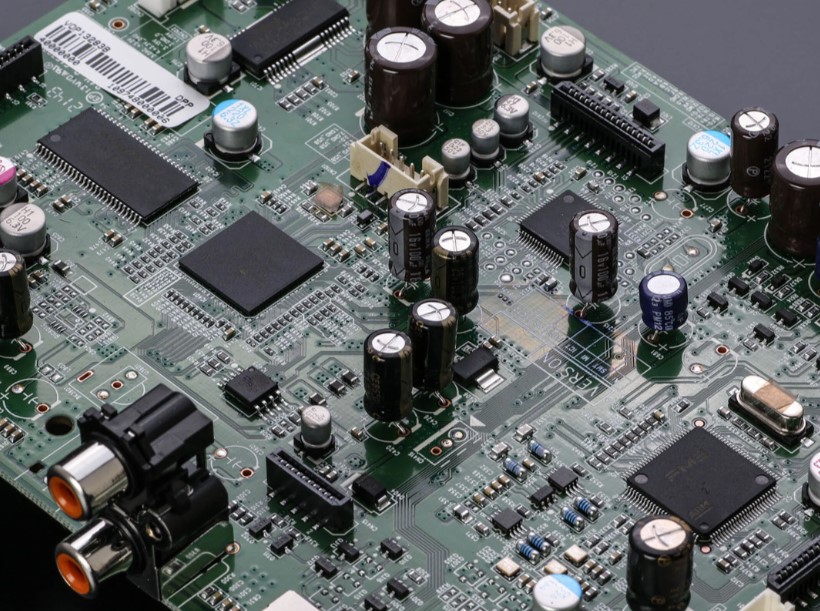

In the CD 60, the proprietary HDAM circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.

High-Current
Power Supply

The CD 60 power supply uses highspeed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply improve current stability and reduced noise during highly demanding listening sessions.

Plays Hi-Res Audio
USB Sources

The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.

Technical Specifications
General
Unit (W x H x D mm)    442 x 129 x 396
Net weight    7.5kg
Packaging Dimensions (W x H x D mm)    525×249×511

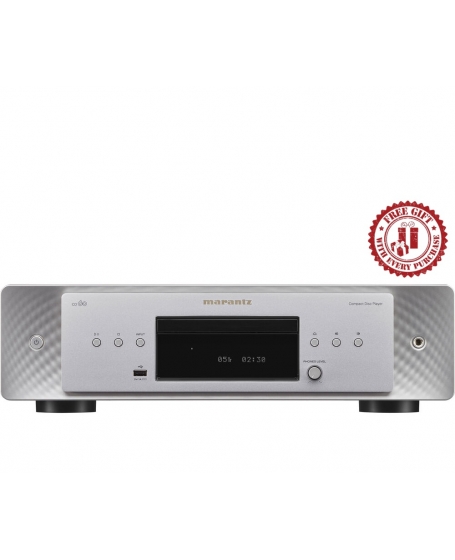

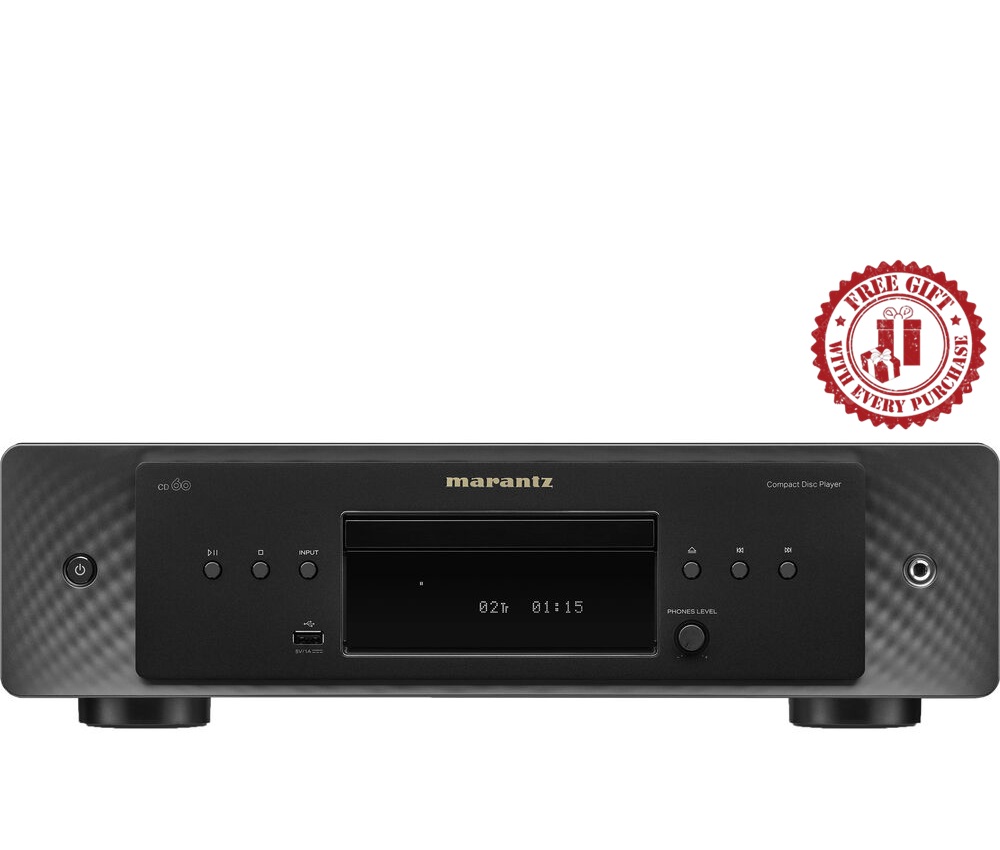

Panel Color    Available Colors: Silver/Gold and Marantz Black
Front (Center) Panel    Aluminum
Specifications
Frequency response    USB DSD: 2Hz - 50kHz (-3dB)
USB PCM: 2Hz - 50kHz (-1.5dB)
CD: 2Hz - 20kHz
Total Harmonic Distortion    USB DSD: 0.0006%
USB PCM 24bit: 0.0005%
CD: 0.0015%
Signal to Noise Ratio    USB DSD: 110dB
USB PCM 24bit: 118dB
CD: 118dB
Dynamic Range    USB DSD: 110dB
USB PCM 24bit: 118dB
CD: 101dB
Line Output Level    2.2Vrms
Headphone Output Level    28mW / 32 ohms
Power Consumption    38W
at Standby    0.3W
Audio Feature
HDAM    New HDAM + HDAM-SA2
Power Transformer    EI
Headphone Amp    High slew rate op-amp
+ HDAM-SA2
H/P Amp Gain Setting    Yes (Low / Mid / High)
Digital Filter    Filter 1, 2 Selectable

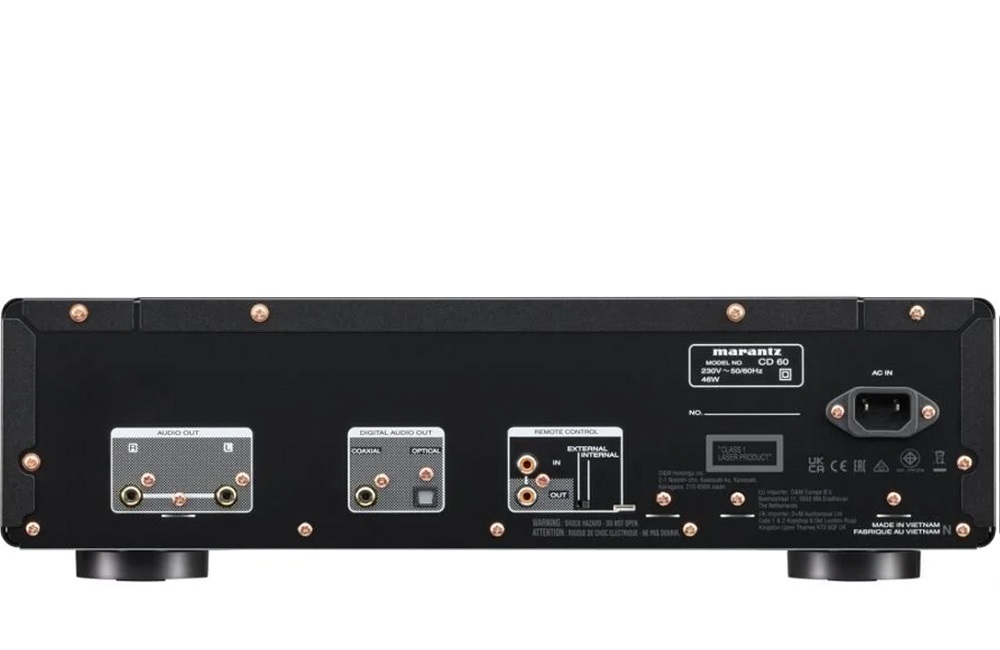

Connectivity / Playback Capability
CD Compatibility    CD / CD-R/RW / WMA / MP3 / AAC
Data Disc Compatibility    DSD / WAV / ALAC
Fixed Analog Output (RCA)    1 (Gold Plated)
Optical input / output (Maximum Support)    0 / 1
Coaxial input / output (Maximum Support)    0 / 1
Headphone Output    1
Remote Control Bus Terminal    Yes (RC-5 In / Out)
w/ External / Internal Select Switch
Flasher Input    Yes (U ver)
USB A    1 (Front)
Mass Storage Class
5V/1A
Support format    FAT 16/32
USB-A: FLAC / WAV / AIFF / ALAC / DSD    Yes / Yes / Yes / Yes
DSD Native Playback    Yes
USB Firmware Update    Yes
Easy to use
Remote Controller    System Remote
(Amp and CD Player Control)
Unit control (Button)    POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev
Unit control (Knob)    1
Phones Level
Dimmer for Front Display    Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus)    Yes
Last Function Memory    Yes
Timer Play (Need external audio timer)    Yes
On/Off selectable in Menu
Auto Standby Mode    Yes
Other    Stereo RCA Cable x1
Remote connector cable x1
Accessory Box    Yes
Battery    Yes (AAA x2)
Power Cord    Yes
