Ready Stock

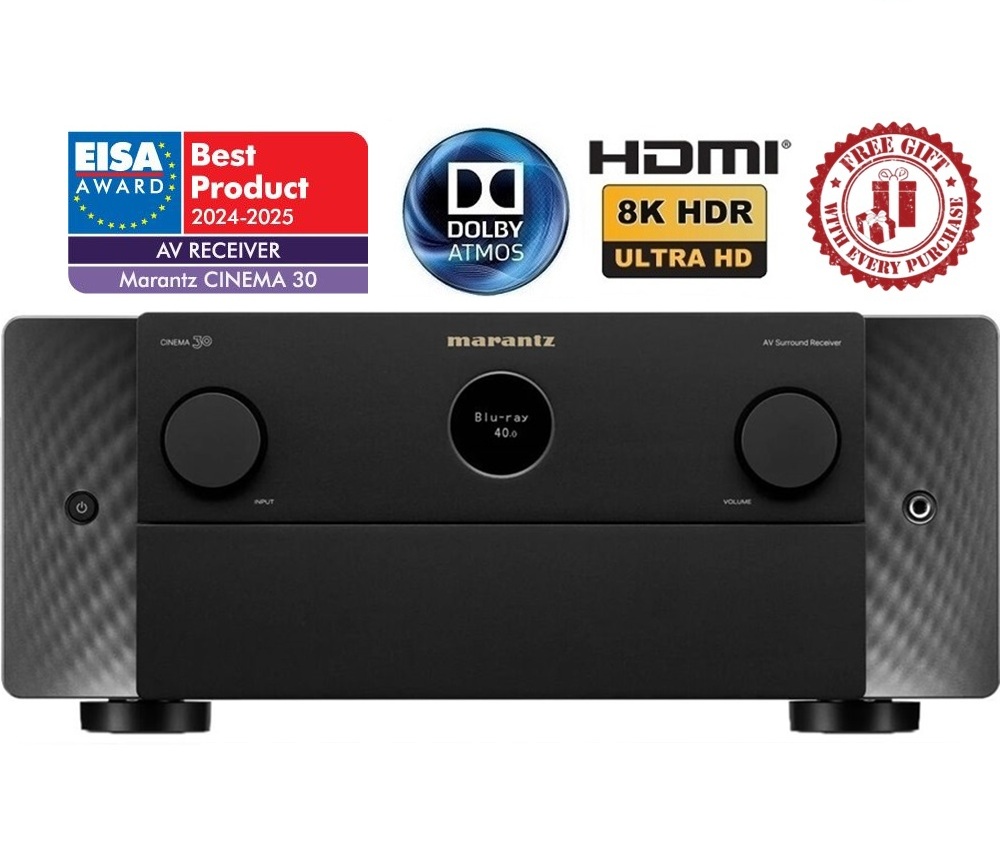

Marantz Cinema 30 11.4Ch Atmos Network AV Receiver Made In Japan
SKU: Marantz Cinema 30
RM 23,999.00
Up to 140W per Channel at 8 Ohms
7 x HDMI Inputs
8K Video with Pass-Through & Upscaling
Dolby Atmos, DTS:X, Auro 3D & IMAX
Audyssey or Dirac Live Room Calibration
Wi-Fi, Bluetooth & Ethernet Connectivity
HEOS Built-In for Multi-Room Streaming
Re-Transmit to Bluetooth Headphones
Amazon Alexa & Google Assistant
Three-Zone Multi-Room Audio
18 Months Warranty
7 x HDMI Inputs
8K Video with Pass-Through & Upscaling
Dolby Atmos, DTS:X, Auro 3D & IMAX
Audyssey or Dirac Live Room Calibration
Wi-Fi, Bluetooth & Ethernet Connectivity
HEOS Built-In for Multi-Room Streaming
Re-Transmit to Bluetooth Headphones
Amazon Alexa & Google Assistant
Three-Zone Multi-Room Audio
18 Months Warranty
CINEMA 30
CINEMA 30 is the most refined AV Receiver Marantz has created and redefines premium home theater sound. Engineered with proprietary technology optimized from decades of rich heritage, its 11.4 channels deliver unrivaled performance and can power even large-scale home theaters with ease.
- Crafted in Shirakawa, Japan
- 11.4 Channels
- 140 Watts per Channel
- 7 HDMI Inputs plus eARC
- 8K & Dolby Atmos
- HEOS Built-in
Engineered To Perform
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.
Timeless Yet Modern Style

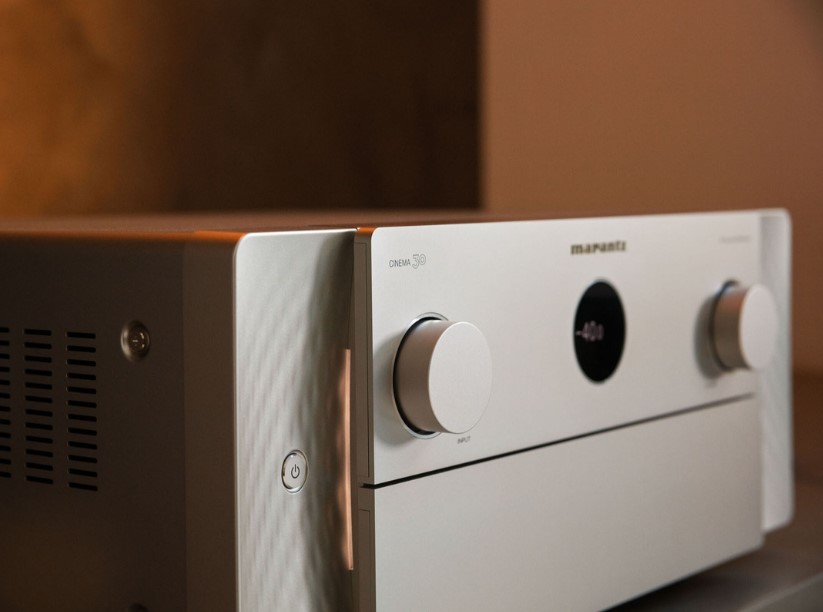

Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.
No Compromise Engineering
HiFi performance technologies like HDAM SA-2, and more elevate the CINEMA 30 to performance levels seldom found in an AVR.
Sound Master Tuned & Calibrated For You
Powerful calibration and tuning tools are included, enabling you to get the best performance from your system.
Technology Leader

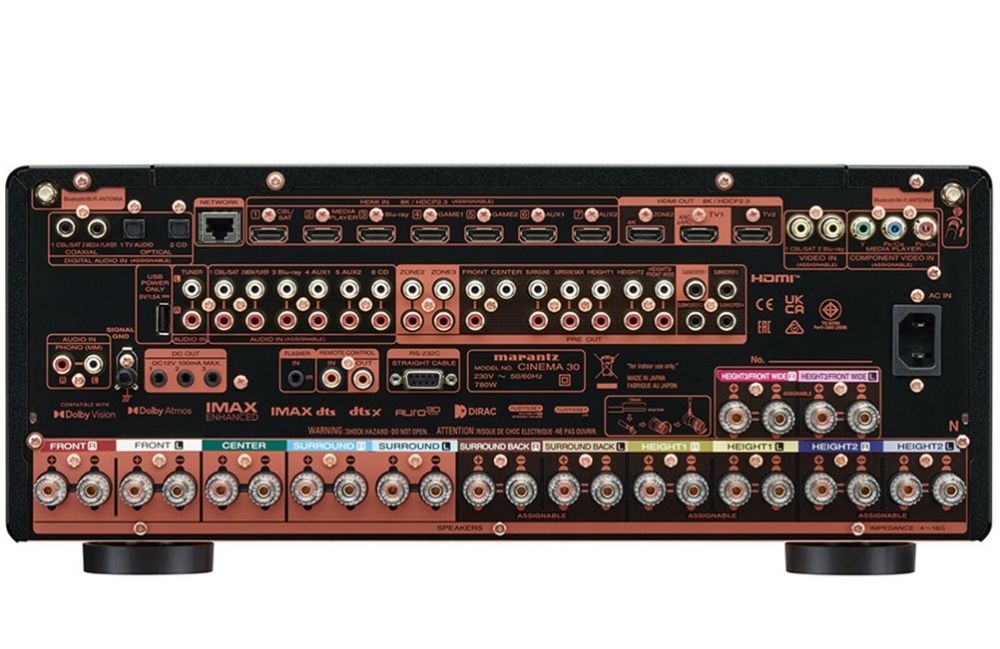

Seven HDMI inputs, plus digital, analog, and phono inputs – even analog video plus loudspeaker and pre-amp outputs – ensure connectivity to virtually any components you have.
Technical Specifications
Power Amplifier
| Number of Powered Channels | 11 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | - |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 140 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 175 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 250 W |
| 70% Guarantee | Yes |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Current Feedback Topology | yes |
| Bi-Amp Drive | assignable |
Multichannel Surround Technologies
| DTS | DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X |
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Other | |
| Max Number of Processing (Preamp) Channels | 13.4 |
| IMAX Enhanced | Yes |
| Auro 3D | Yes |
| Audyssey DSX | Yes |
| Multichannel Stereo | Yes |
Inputs/Outputs
| Composite In / Out | 2 / 0 |
| Component In / Out | 1 / 0 |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out via HDMI | 0 / 0 |
| Analog In / Fixed Level Out | 3 in / 0 out |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: analog / digital | 2 / 0 |
| Multichannel Preamp Out | 7.2 |
| Subwoofer Out | 4 (independent) |
| 7.1 multichannel input | No |
| Number of Speaker Terminals | 13 |
| Speaker A / B | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs | USB-A |
| USB Audio | Yes / No / No |
| FM Tuner with RDS | Yes |
| DAB+ Tuner | No |
| Multi-Room Video Out: Video / HDMI | 7/3 |
| analog In/out | 6 / 0 |
| Multichannel Pre Out | Yes (13.4) |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / No / Yes |
HDMI
| Total HDMI Inputs / No. Support 8K | 6 / 3 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Analog to HDMI Video Conversion | No |
| HDMI Upscaling | 1080P/4K to 8K |
| Max resolution @ framerate | |
| Audio Return Channel | ARC, eARC |
| Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate / Quick Frame Transport | Yes / Yes / No |
| HDMI Pass-Through in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio over HDMI | No |
| Auto LipSync | Yes |
| HDMI Inputs: Back / Front | 7 / - |
| Video Conversion Analog -> HDMI | Yes |
| HDMI to HDMI Scaling | 1080P/4K to 8K |
| HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB | Yes / Yes |
| 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out | 7 / 2 (up to 40Gbps) |
| HDMI 2.0: 3D / 4K / CEC / ARC | Yes / Yes / Yes / Yes |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR | Yes / Yes / Yes / Yes / Yes |
| Variable Refresh Rate / Quick Flame Transport / Quick Media Switching | Yes / Yes / No |
| 8K signal pass-through / scaling / GUI overlay | o / o / o |
| 4K Signal Pass-Through / Scaling / GUI Overlay | o / o / o |
| DSD Audio Capability | Yes |
Performance Technologies
| Copper Plated Chassis | Yes |
| Toroidal Power Supply Transformer | Yes |
| Hyper Dynamic Amplifier Modules (HDAM) (List version) | Yes |
| Pure Direct Mode | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
Acoustic / Room Correction
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Dirac Live Support | Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| Dirac Live Upgradability | Yes |
Music File Support
| Lossy Formats | MP3 / WMA / AAC |
| Lossless formats | FLAC HD 192/24 / WAV 192/24 / ALAC 192/31 |
| DSD Audio | 2.8 MHz / 5.6 MHz |
| Gapless Playback | FLAC, WAV ,ALAC ,DSD |
| Compressed Audio Enhancer: MDAX2 | Yes |
| Network Audio Sharing | Yes |
Streaming Services
| HEOS Multi-room and Streaming | Yes |
| AirPlay Audio Streaming | AirPlay2 |
| Internet Radio | TuneIn |
| Spotify* | Spotify Connect |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services * | Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix |
| Roon tested | Yes |
Network Connectivity
| Ethernet Ports | Yes |
| Wi-Fi (include version / band) | Yes |
| Bluetooth (Include version) | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes |
Smart Home Integration And Control
| Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
| App for Smart Phones & Tablets (iOS & Android) | Marantz AVR App |
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR/ IP | Yes /Yes |
| Multi-Room zones | 2 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2 Ch / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| Control Connectivity | IP Control / RS232 Control / Web Control / App Control |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 3 |
| HDMI Diagnostics | Yes |
Others
| Front Display | 2 line FLD + port hole OLED |
| Primary Display Size (diagonal in/mm) | |
| Secondary Display Size (diagonal in/mm) | |
| GUI Languages | 3 |
| Setup Assistant | Yes |
| Smart Select on Remote | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep Timer | Yes |
| GUI Overlay on HDMI | |
| CEC | Yes |
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32Dirac Live (upgrade) |
| Graphic User Interface - GUI | Modern HD GUIModern HD GUI |
| Smart Select | Yes |
General
| Available Colors | Black/Silver-Gold |
| Metal Front Panel | Yes |
| System Remote Control | RC-051SR |
| Power Consumption in W | 780 |
| Power Consumption No-Sound (ECO on/off) in W | 65 W / 110 W |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm Antenna:Vertical :(W x D x H) in mm W/o Antenna:(W x D x H) in mm |
442 x 384 x 109 ( 442 x 384 x 178 ) 【 442 x 372 x 109 】 |
| Weight in kg | 8.7 |
| What's in the box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord |
| Weight in lbs. | 42.8 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm Antenna:Vertical :(W x D x H) in mm W/o Antenna:(W x D x H) in mm |
17.4 x 18.0 x 7.5 (17.4 x 18.0 x 10.2) 【17.4 x 17.6 x 7.5】 |
| Pre-Programmed / Learnable / LCD Display | Yes / Yes / Yes |
