MODEL 10

MODEL 10 is the new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever.

• 2 Channels
• 250 Watts per Channel
• All-New Marantz SMPS
• Fully balanced dual mono amplifiers
• Phono MM/MC
• Copper-plated chassis

Inspired by our past, engineered for our future

MODEL 10 is the new reference in amplifier design and the most powerful and finest sounding integrated amplifier Marantz has ever made.

The Best of the Best

From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and all new HDAM modules, MODEL 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.

Sound Master Tuned

MODEL10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail, lower distortion, and higher dynamic range than ever before.

Iconic Details Reimagined for Tomorrow

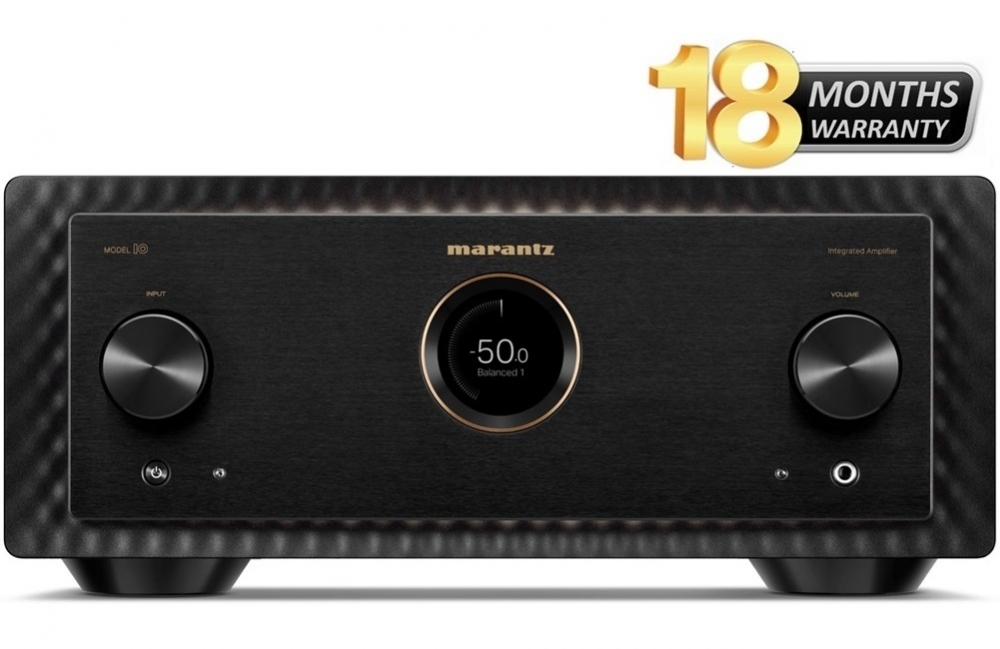

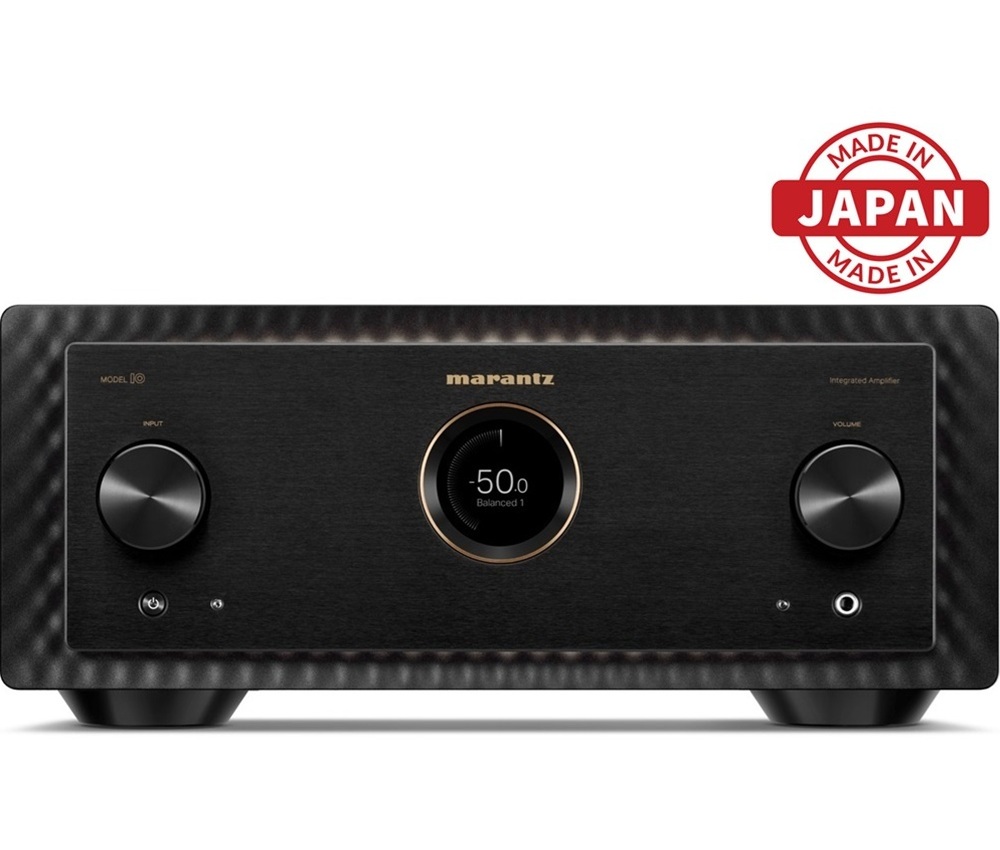

Designed with a brushed aluminum front, MODEL 10 is encased in a copper-plated, triple-layered chassis with illuminated mesh cover grille. Lighting inside the amplifier showcases the circuit boards, high-quality components, and specially designed transformer case. In a nod to the Marantz design DNA, MODEL10’s porthole houses a high-resolution full color OLED display for volume and input selection, along with a digital VU meter that behaves like vintage analog meters.

Crafted in Shirakawa

MODEL 10 was conceived and engineered in our facilities in Shirakawa, Japan to deliver the highest performance.

General
Unit (W × H × D mm)440 × 192 × 473
Cabinet Size4 40 × 192 × 422
Net weight 33.7kg
Packaging Dimensions (W × H × D mm) 600 × 379 × 540
Packaging gross weight 39.0kg
Carton Color 1 Color (Material color: Brown Printing: Black)
Panel ColorBlack / Marantz Champagne
Front (Center) PanelAnodized machined aluminum
Back-shellAAnodized machined aluminum
Front panel illuminationYes (All sides, Dimmer)
Side coverAluminum (Thickness: Max 15.8mm)
Top coverAluminum (Thickness: 6mm)
Top cover (Centor) ventilation hole materialStainless mesh
Interior iluminationYes, dimmable
Rear PanelCopper Plated
Chassis MaterialCopper Plated
Bottom Layer / Bottom plateTriple layer Copper plated
Front panel illumination Yes (All sides, Dimmer)
Volume Knob Solid aluminum (Bearing construction)
Input Selector Solid aluminum (Bearing construction)
Foot Solid Alminum Copper plated (H: 18.5mm)
Heatsink for Power Amplifier Extruded Aluminum

Audio
Rated Output Power250W + 250W
(8ohm,20Hz-20kHz,THD 0.05 %)
500W + 500W
(4ohm,20Hz-20kHz,THD 0.05 %)
Speaker Impedance4~16ohm
Frequency Response5Hz~60kHz +0dB/-3dB
20Hz~20kHz +0dB/-0.3dB
Total Harmonic distortion0.005%
(125W, 8ohm, 20-20kHz)
(CCIF IMD, DFD IMD)
Damping Factor500 (8ohm, 20Hz-20kHz)
Input Sensitivity: Phono inputMM: 3.6 mV / 36 kohm
MC (Low): 400 μV / 33 ohm
MC (Mid): 400 μV / 100 ohm
MC (High): 400 μV / 390 ohm
RIAA Deviation20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum InputMM : 80mV
MC : 8mV
Input Sensitivity: CD/LINE/RECORDER350 mV/41kohm (Unbalanced)
700 mV/36kohm
Input Sensitivity: Power Amp inputUnbalanced: 1.58V / 41kohm (Gain : 29dB)
Balanced: 3.16V / 15kohm (Gain : 24dB)
SN RatioPHONO (MM): 88dB
PHONO (MC): 76dB
CD: 122dB
Balanced: 122dB
Headphone Output Level 130mW / 32 ohms
Tone ControlBASS : 50Hz ±10dB
TREBLE : 15kHz ±10dB
Power Consumption 270W

Audio/ Video
Phono InputYes (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
PHONO (MC Low): 400 μV / 33Ω
PHONO (MC Mid): 400 μV / 100Ω
PHONO (MC High): 400 μV / 390Ω
PHONO (MM): 3.6 mV / 39kΩ

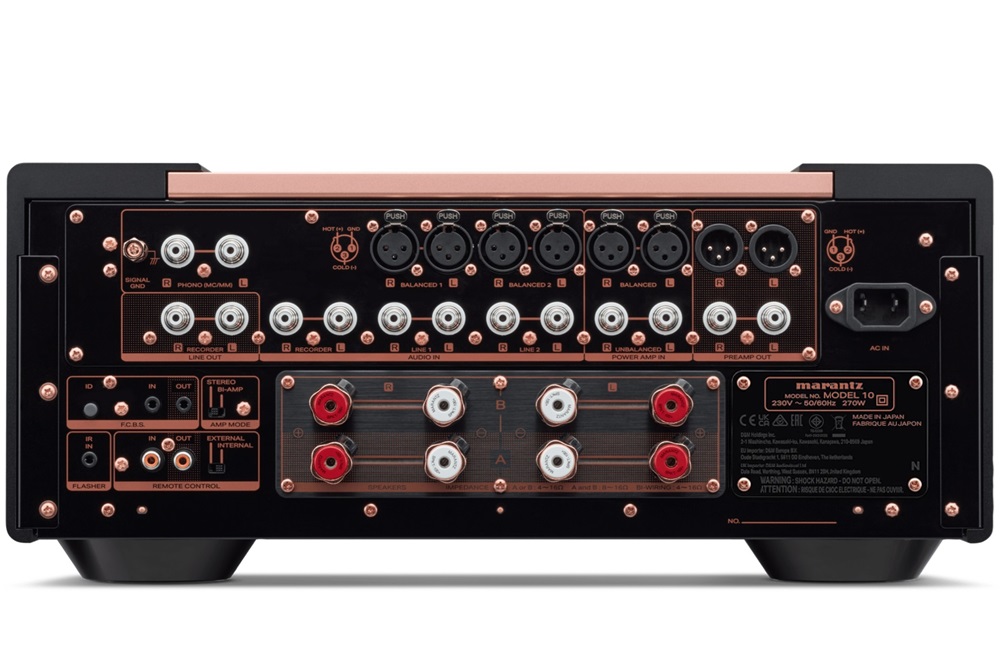

Analog Input (include Phono) / REC Out (RCA)4 /1
(LINE1, LINE2, PHONO: Thick nickel plated independent terminals)
(RECORDER: Thick nickel plated independent terminals)
Balanced XLR input 2
Power Amp DirectYes [RCA (Thick nickel plated independent terminals) / XLR]
Pre outYes [RCA (Thick nickel plated independent terminals) / XLR]
2 sets of Speaker OutputYes (Bi-wiring)
Speaker TerminalMarantz Original SPKT-100+
2 (High quality and high-purity copper plated)
Headphone Output 1
(Turns off the speaker automatically when headphone is inserted)

Control/ Other
Remote Control Bus Terminal Yes (RC-5 In / Out)
Remote Internal / External SwitchYes
Flasher Input Yes
AC Inlet Yes
OtherF.C.B.S.
(Floating Control Bus System)
Remote Controller10 series Universal Remote control
Unit control (Button)Tact Switch : 1
POWER
Unit control (Knob)2
VOLUME, INPUT SELECTOR
LEDPOWER: 1 White
Protection: 1 Orange
Illumination (Edge): White
Interior: White
Front Panel DisplayNew HD TFT Color Display
Dimmer for Front Display20 steps
Level meterYes (HD Display)
Volume Display-infinity/-99.5dB - 0dB / 0.5 step (default)
0-100 / 0.5 step
switchable
Last Function Memory Yes
Auto Standby Mode Yes
Remote Controller RC004PMND
Battery Yes (AAA ×2)
Power Cord Yes
(ALL region / Audio Grade / OFC)
Other CoA card
