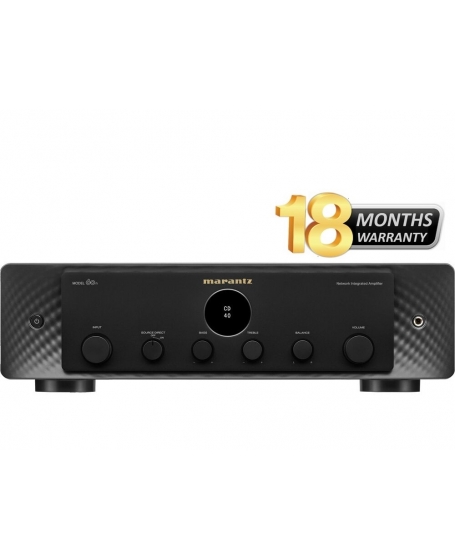

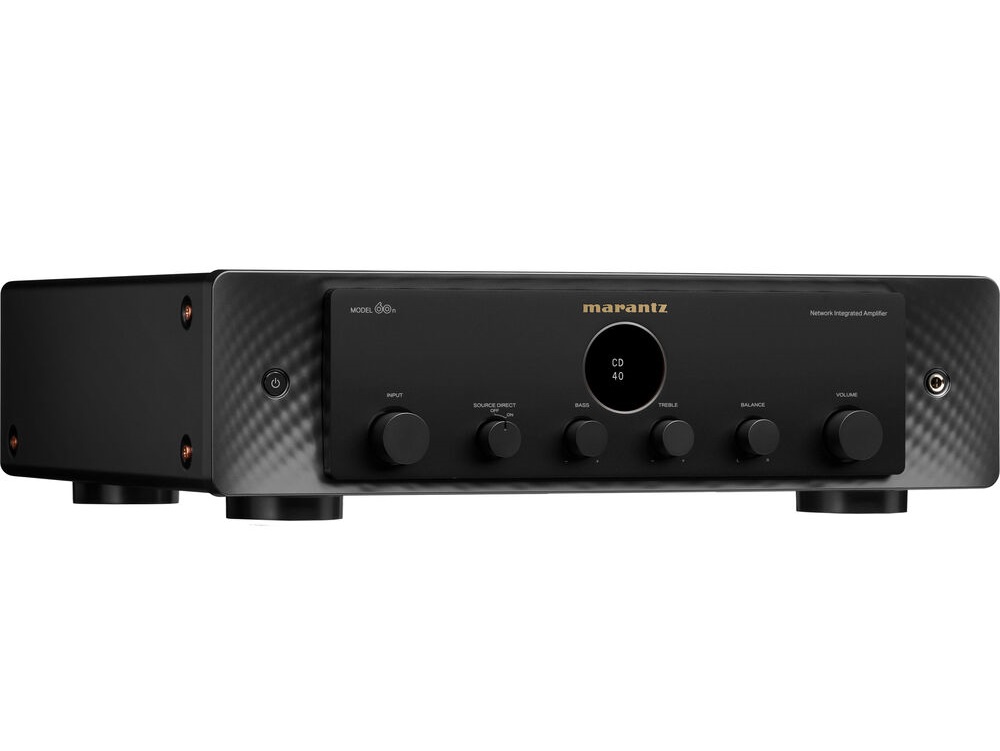

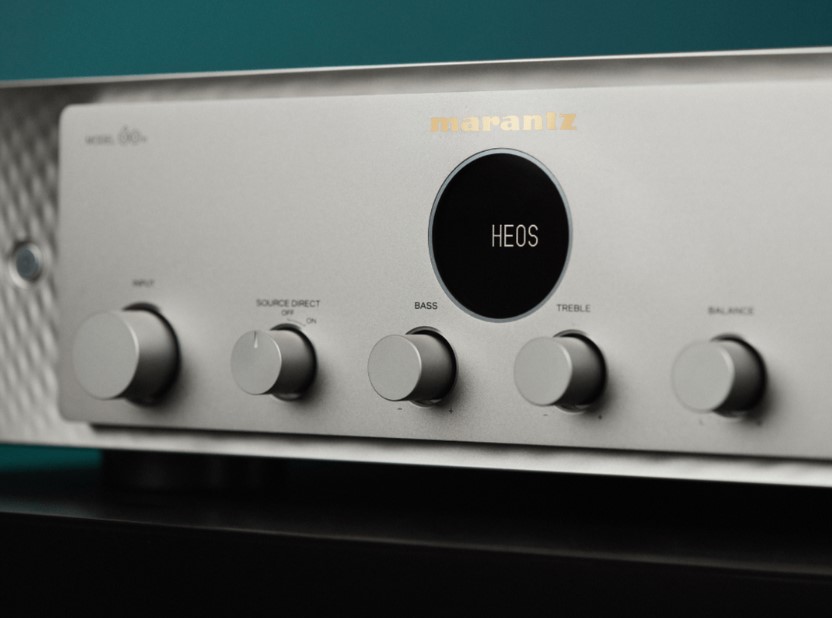

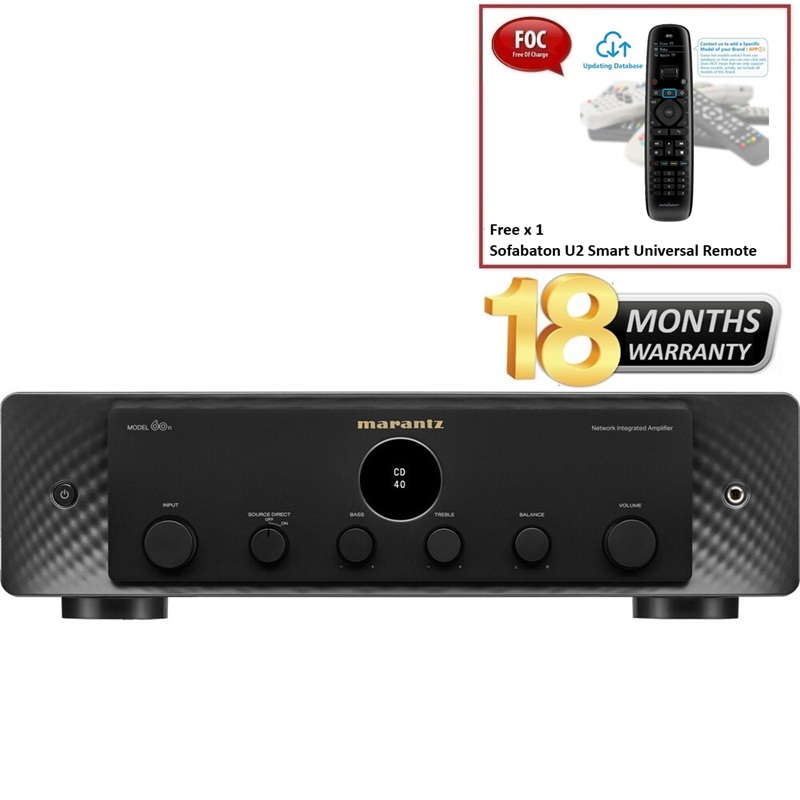

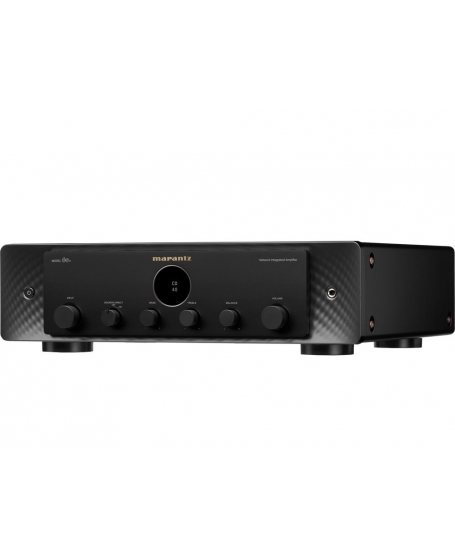

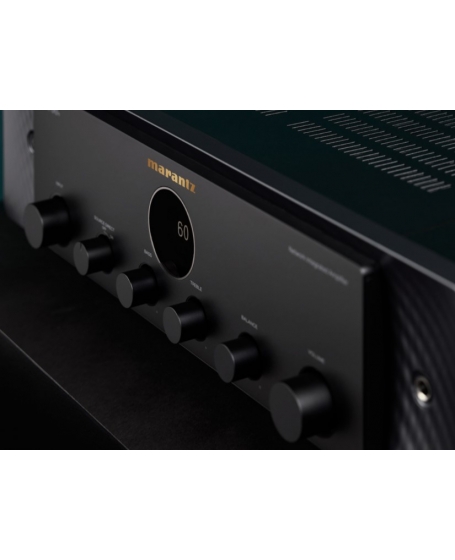

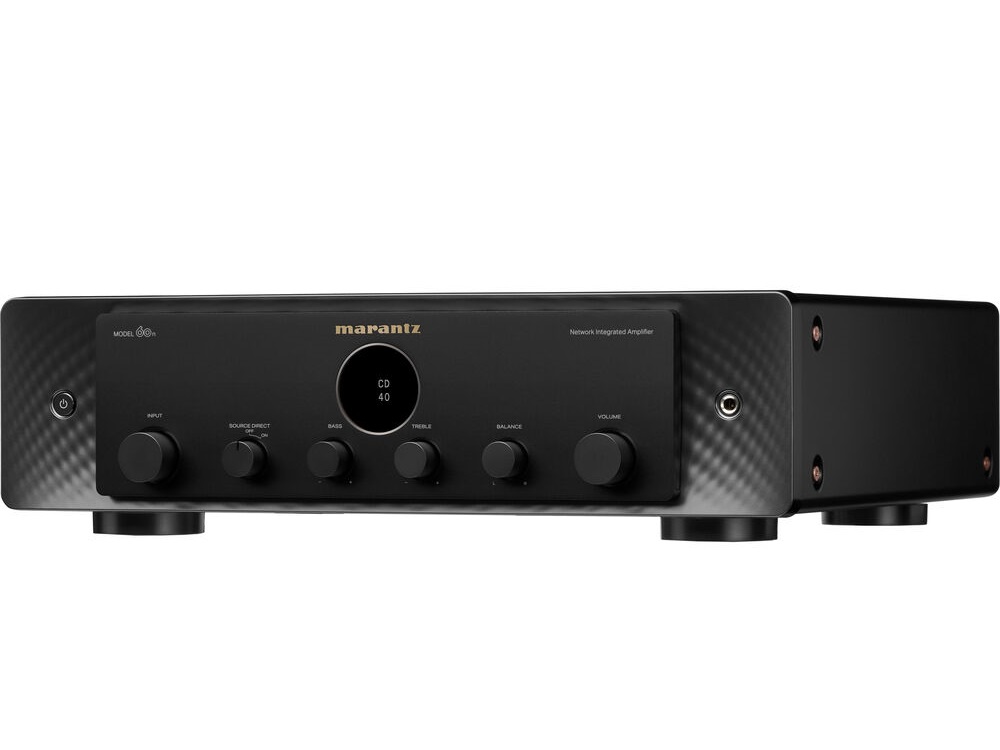

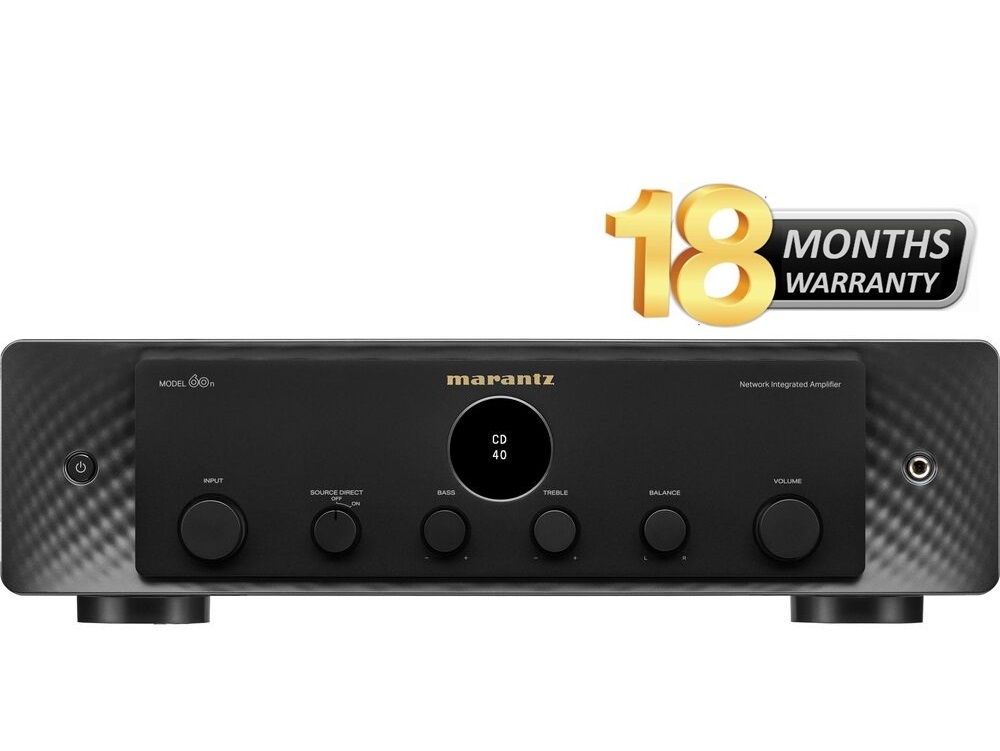

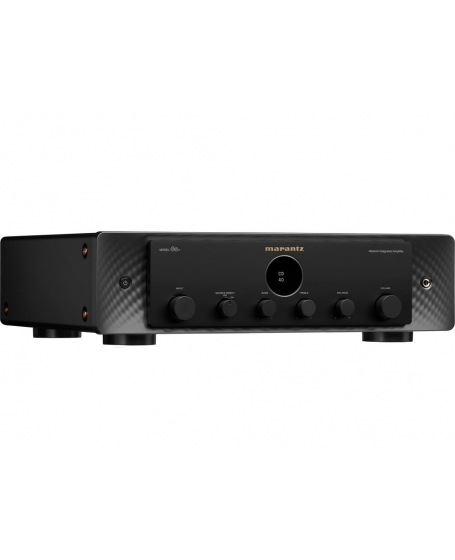

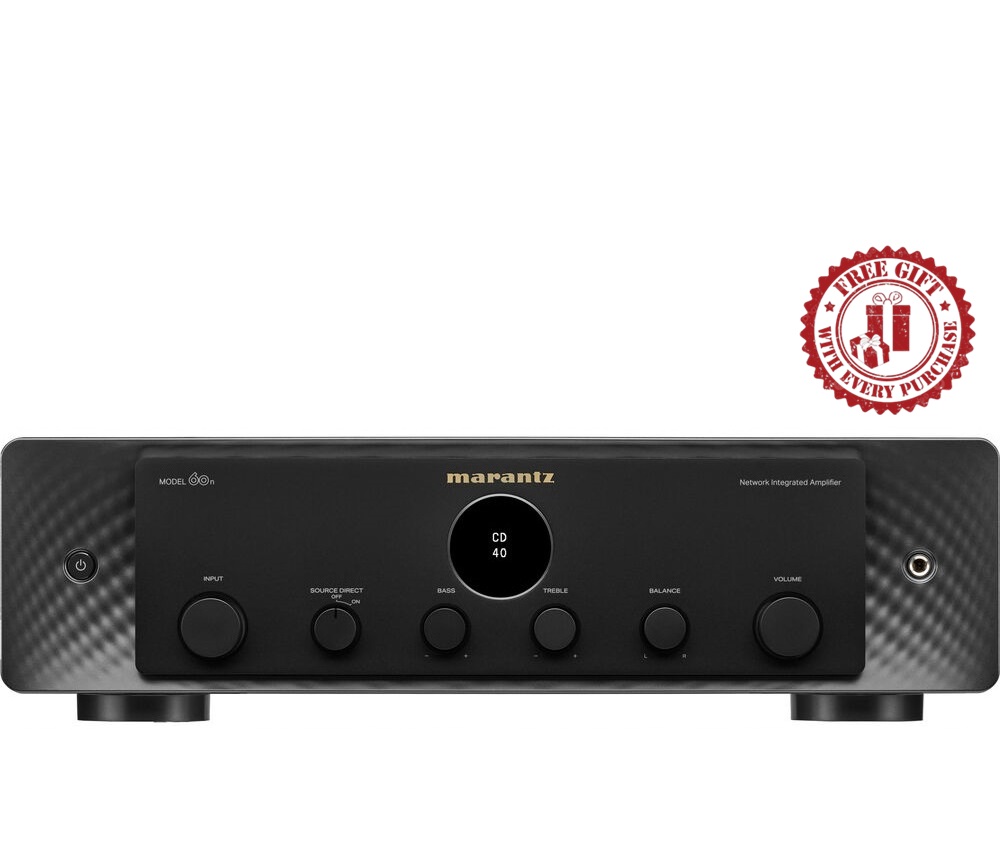

MODEL 60n

MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity. Stream in high-resolution via HEOS® Built-in, connect your CD player or turntable and complete your hi-fi system with the speakers of your choice, or an optional subwoofer.

• 60W per channel
• HEOS® Built-in
• HDMI ARC
• Marantz HDAM® circuits
• Hi-Res audio support
• CD and MM phono inputs

The perfect blend of performance and connectivity

MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity.

MODEL 60n

Superb Marantz Sound

Sound Master tuned and engineered to bring you all the texture, nuance, and clarity of the Marantz signature sound.

High Resolution Streaming

Stream in high-resoultion from today’s most popular music services, including TIDAL, with HEOS® Built-in.

Build Your Hi-Fi System

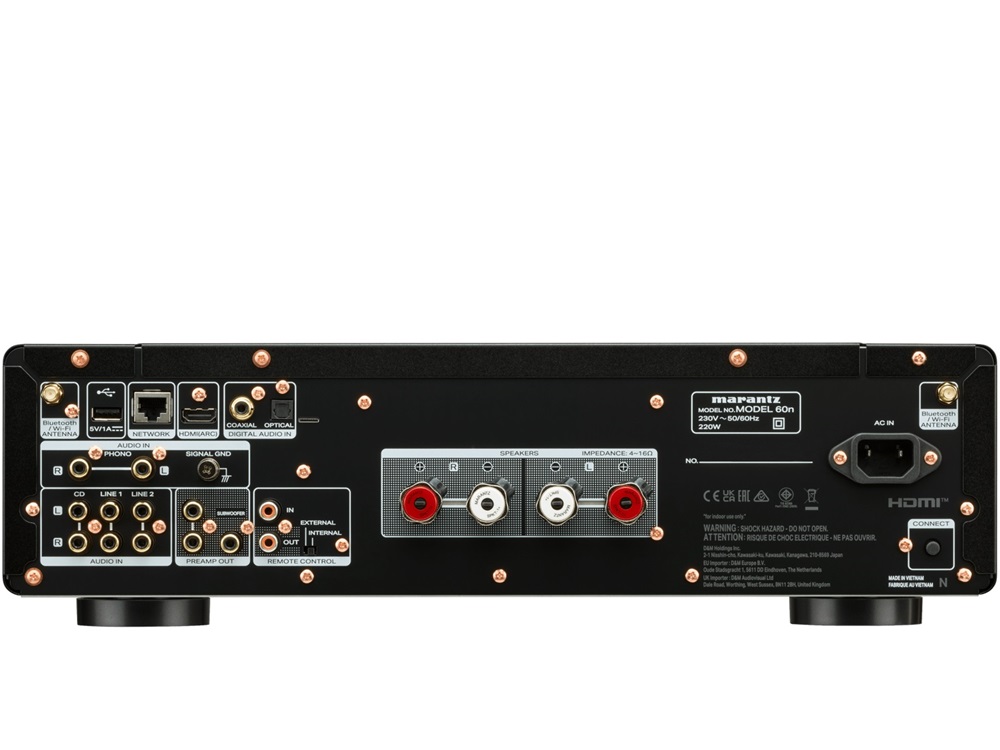

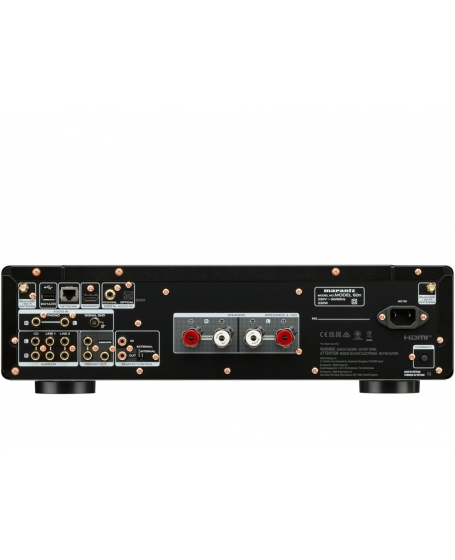

Wide range of connections, including for a CD player and turntable, enable you to build a comprehensive hi-fi system.

Enhanced TV Sound

Enjoy superior TV sound for your favorite movies and shows and enhance your gaming experience with MODEL 60n’s HDMI ARC connection.

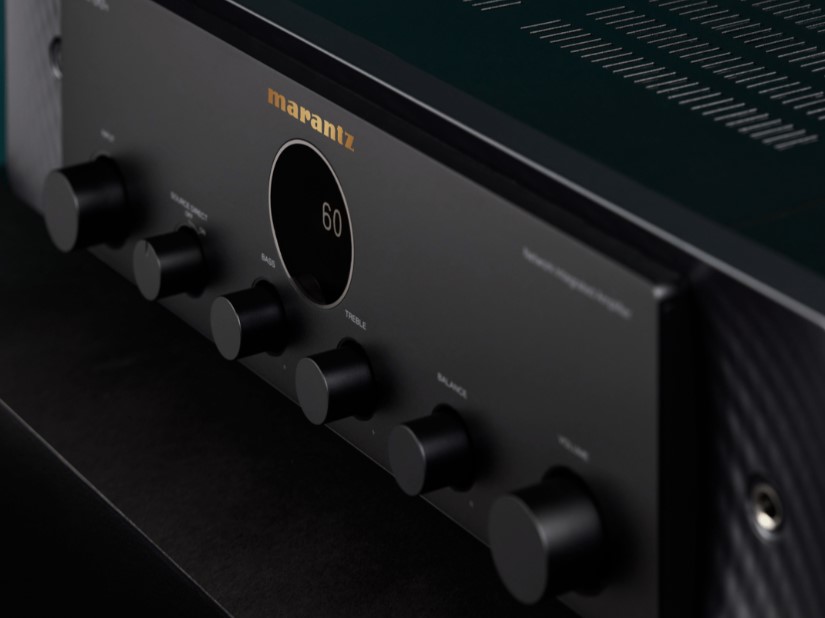

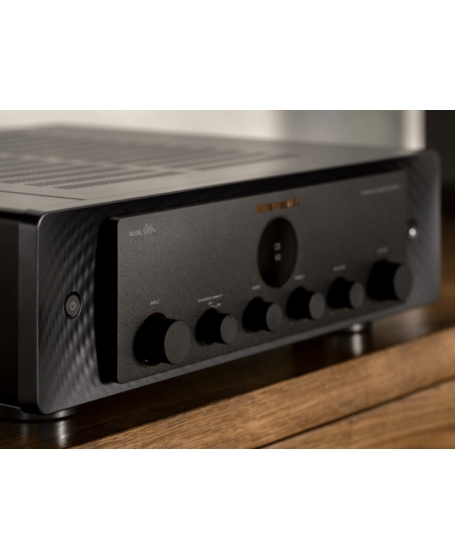

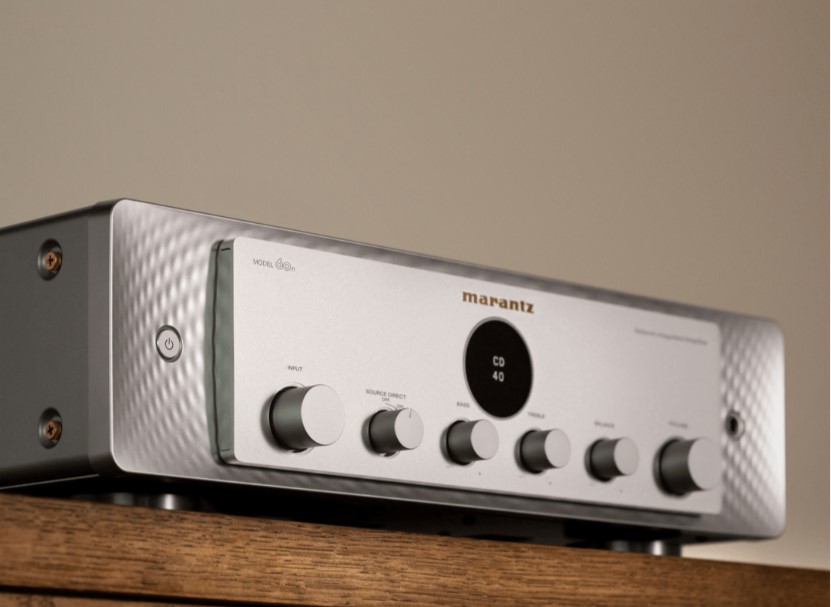

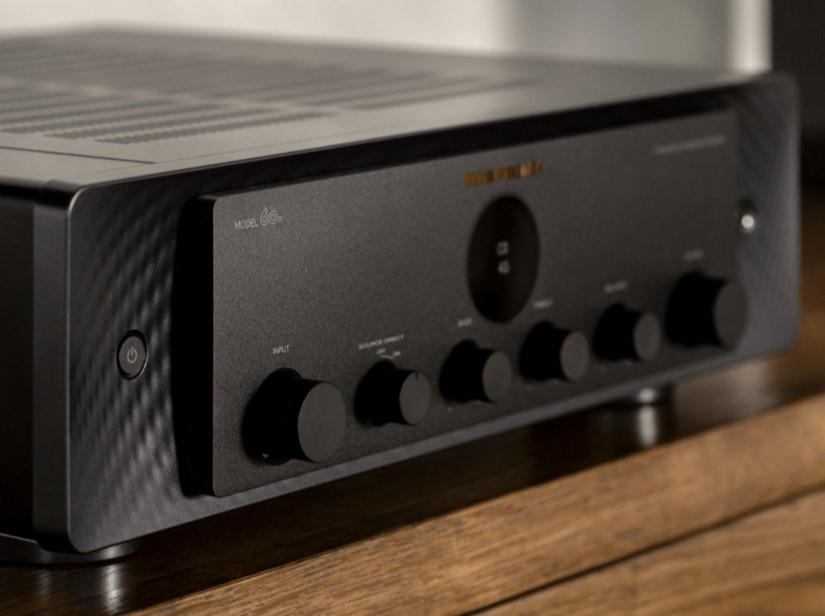

Marantz Industrial Design

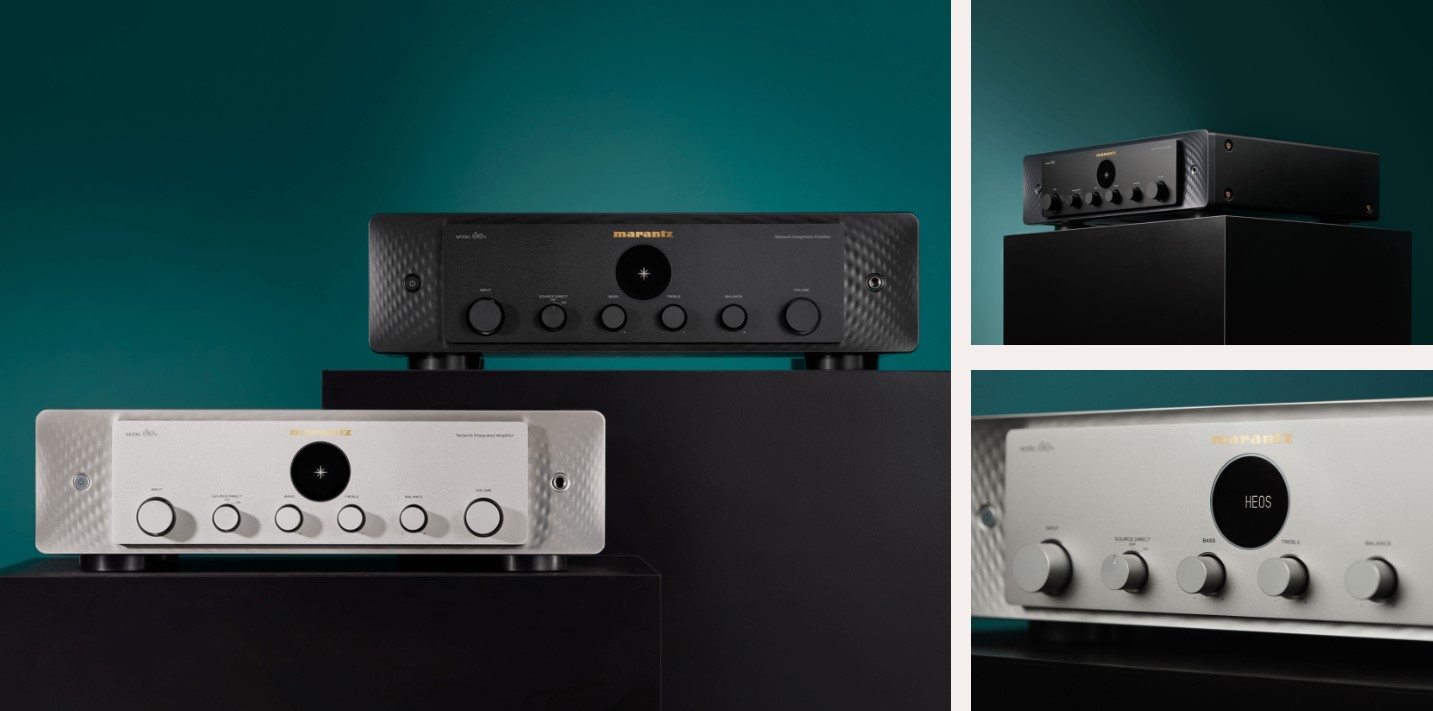

Intuitive operation, designed with robust yet refined materials and available in two colorways: black and silver-gold.

Technical Specifications
Amplifier
Channels 2
PSU Transformer Toroidal
Speaker A / B No
Speaker Terminals Marantz SPKT-1+
Number of Terminals 2
Power Output (8 / 4 Ohm RMS) 60 W / 80 W
Topology Class A/B
Audio Components and Technologies
Current Feedback Topology Yes
HDAM Version SA3, SA2
High Grade Audio Components Yes
Customised Components Yes
Symmetric PCB Layout Yes
Aluminium Extrusion Heat Sink Yes
Copper Plated Chassis No
Marantz Musical Digital Filtering No
Linear Drive Power Supply Yes
BI-AMP and Multichannel Option No
Shottky Diodes Yes
Control
D-Bus Yes
DAC
Digital Inputs Coaxial, Optical, USB-A
Max PCM Sample Rate 192 kHz / 24-bit
Max DSD Sample Rate DSD 4X (11.2 MHz)
HDMI 1 ARC
HEOS
Streaming Technologies Bluetooth, Airplay 2, Roon Ready,
Spotify Connect, Tidal Connect
Streaming Services (subject to change and local availability) Tidal (Hi Res), Deezer (Hi Res),
Amazon Music HD, TuneIn,
SoundCloud, Mood:Mix
HEOS Multiroom and Streaming Yes
Lossy Formats MP3, WMA, AAC
Lossless Formats DSD/DSF, FLAC, ALAC, WAV
Gapless Playback Yes
HEOS App iOS, Android
Network
Wi-Fi / Wired LAN Yes / Yes
Other
Display Low-Noise OLED Monochrome
Preamp
Phono EQ MM Standard
Tuner: FM / AM No
Audio Adjustments Bass / Treble EQ, Balance
Source Direct Yes
Power Amp Direct No
Analogue Audio Inputs 4
Balanced In / Out No / No
Preamp Outputs 1
Subwoofer Output 1 Mono
Headphone Out Yes
Specifications
Frequency Response 5 Hz-100 kHz
Total Harmonic Distortion 0.02 %
Damping Factor 100<
Input Sensitivity: MM 1.9 mV / 47 kOhm
Signal to Noise Ratio: MM/MC 87 dB / -
Input Sensitivity: High Level 190 mV / 20 kOhm
Signal to Noise Ratio: High Level 113dB
Treble Control ± 10 dB at 15kHz
Bass Control ± 10 dB at 50Hz
Metal Front Panel Yes
Power Consumption in W 220
Standby Consumption in W 0.3
Auto Power Off Yes
Detachable Power Cable Yes
Remote Control RC006PM
System Remote Function Yes
Maximum Dimensions (W x D x H) mm 442 x 431 x 129
Carton Maximum Dimensions (W x D x H) mm 527 x 517 x 255
Carton Weight (inc. product) in kg 15.5
SAP/EAN MODEL60N/N1B
747192143671 (BLACK)
MODEL60N/N1SG
747192143688 (SILVERGOLD)
