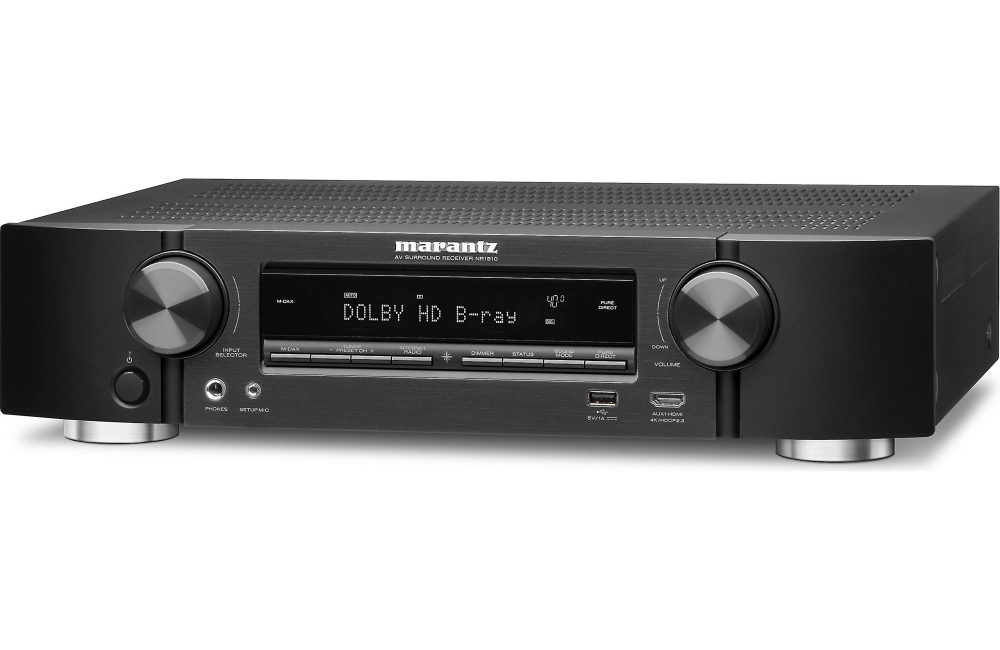

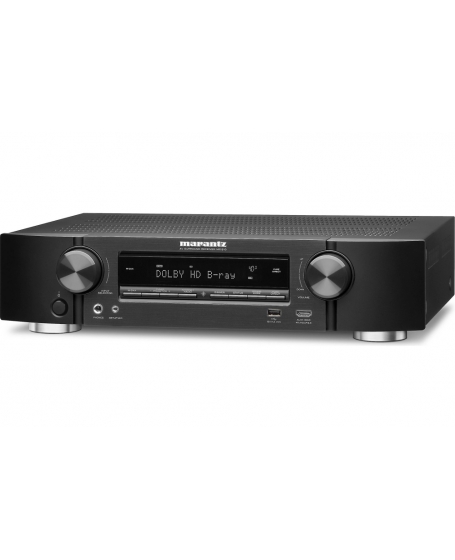

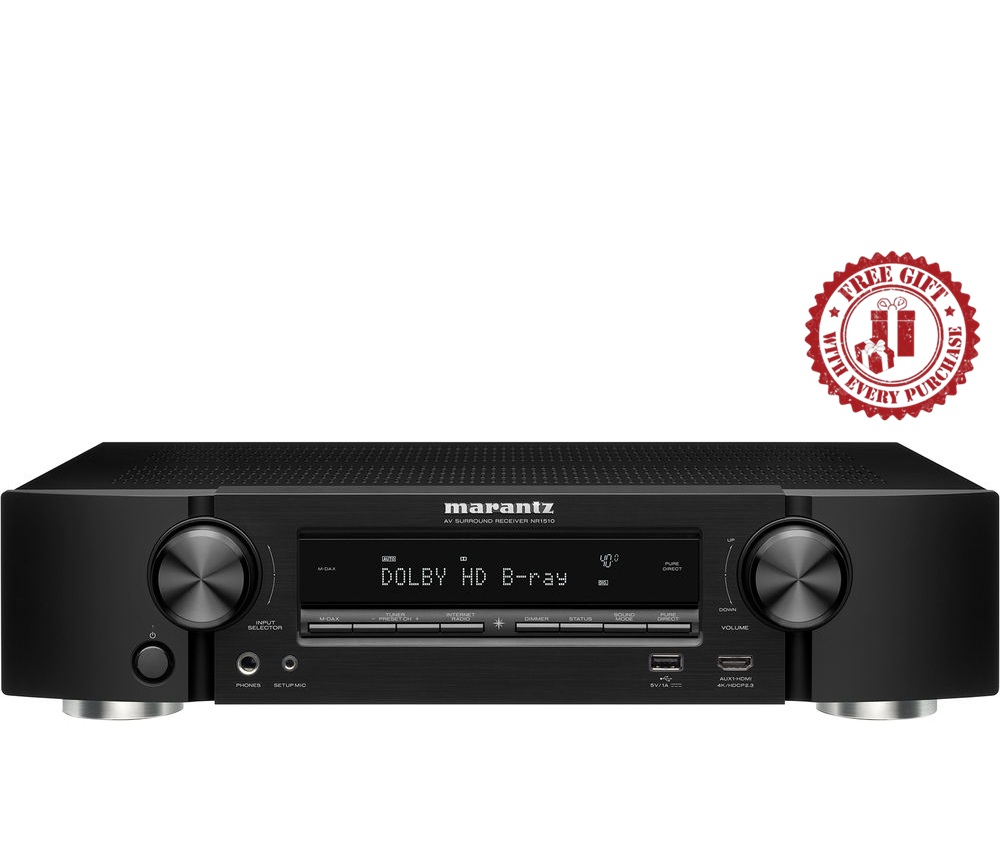

Marantz NR1510

SLIM 5.2 CHANNEL 4K ULTRA HD AV RECEIVER WITH HEOS BUILT-IN

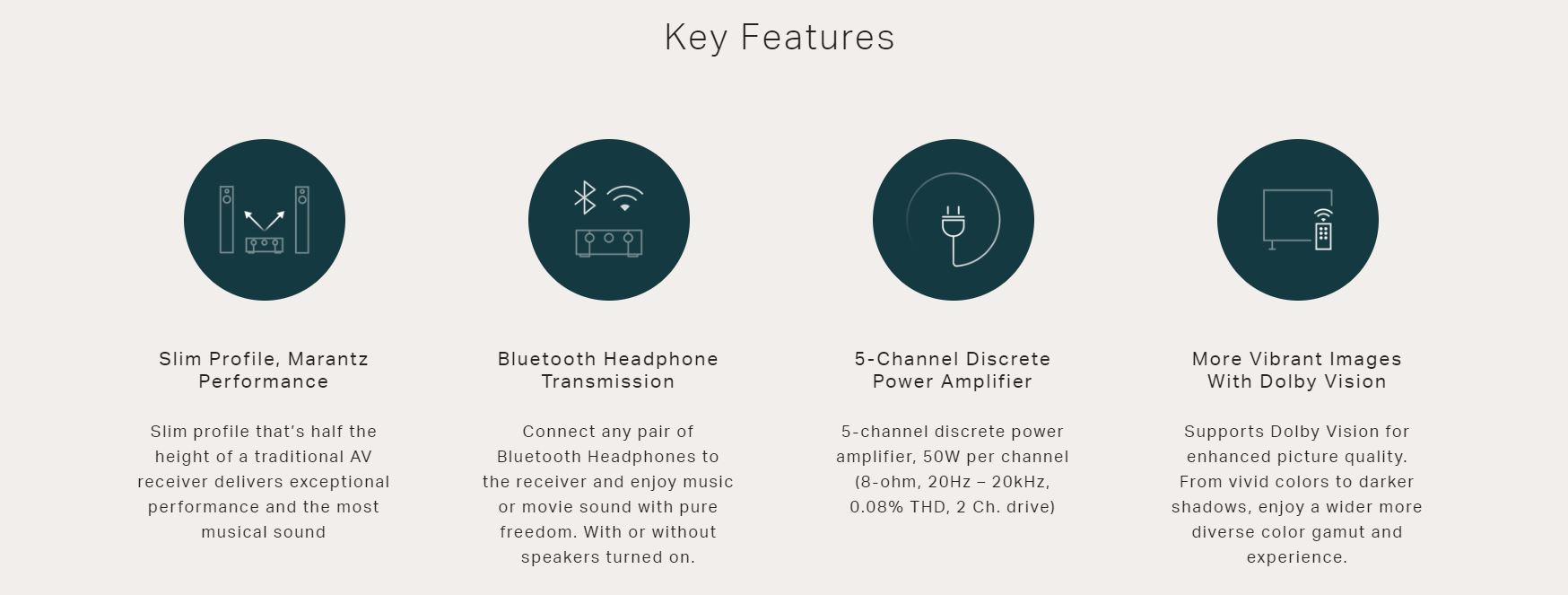

Slim Profile

Enjoy the most musical performance from a compact, slim chassis. At half the height of a traditional AV receiver, the Marantz NR1510 delivers the musical sound that’s synonymous with Marantz.

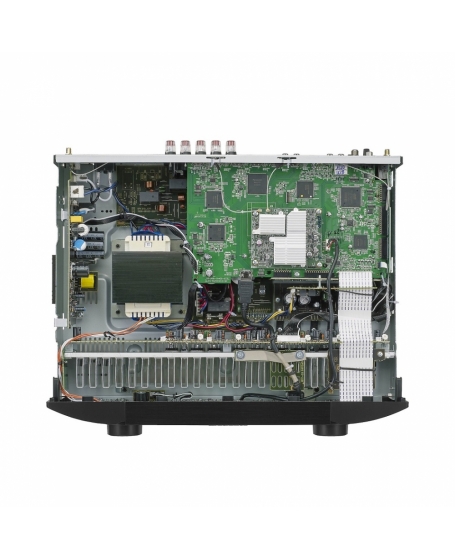

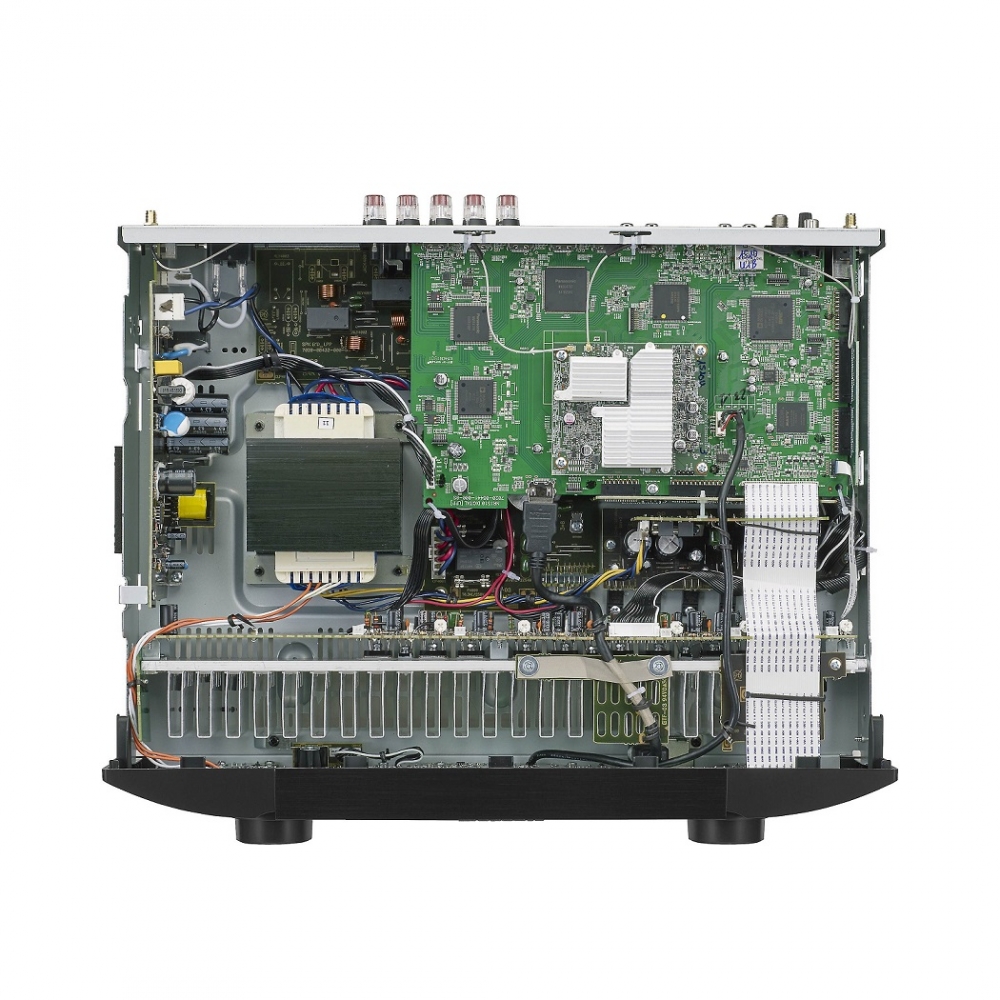

Powerful 5-Channel Discrete Amplifier

Featuring a high-current discrete power amplifier section, enjoy elevated sound for movies and music with identical power on all five channels (50W per channel: 8-ohm, 20Hz – 20kHz, 0.08% THD, 2 Ch. Drive) with low-impedance drive capability for superb speaker control.

Connectivity, Streaming & Multi-Room Listening

Stream the most popular music services — like Spotify, Pandora, Tidal and many more — via Bluetooth, AirPlay 2 or the HEOS app.

The Most Musical Sound

Extensively tuned by Marantz sound masters to deliver an exquisite sonic signature. No component leaves the hands of Marantz sound masters until it passes rigorous testing. Envelop yourself with the most musical sound, from any source.

Amplifier
Channels    5.2
Power Output per Channel    2-Channel Driven:
50 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
60 W at 6 Ohms / 1 kHz / 0.7% THD
1-Channel Driven:
100 W at 6 Ohms / 1 kHz / 10% THD
Frequency Response    10 Hz to 100 kHz +1/-3 dB (Direct Mode)
Audio Processing
DTS Compatibility    DTS-HD Master Audio
Dolby Compatibility    Dolby TrueHD
Auro 3D Support    No
Supported File Formats    AAC, ALAC, FLAC, MP3, WAV, WMA
Video
HDR Compatibility    HDR10, Dolby Vision, Hybrid Log Gamma
Pass-Through Support    4K60p 4:4:4 (BT.2020)
Connectivity

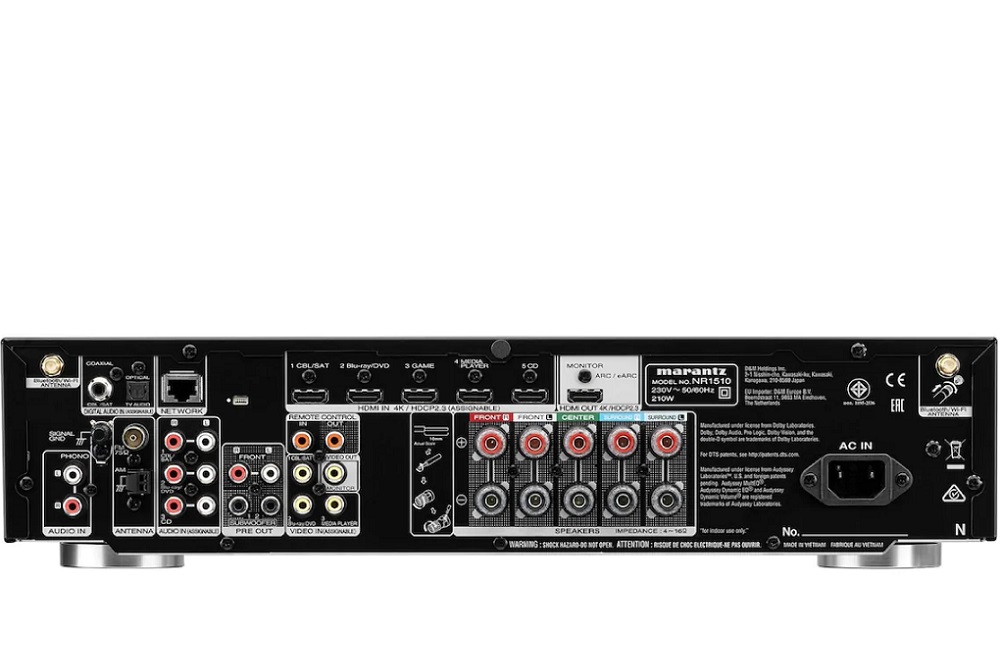

Rear A/V Inputs    5 x HDMI
3 x RCA Composite
4 x Stereo RCA (Phono) with Ground Screw
1 x Optical TOSLINK
1 x Digital Coaxial
Rear A/V Outputs    1 x HDMI
1 x RCA Composite
1 x Stereo RCA Pre-Out
2 x RCA Subwoofer Pre-Out
1 x 1/4" / 6.35 mm Headphone
Front I/O    1 x HDMI
1 x USB Type-A
Other Rear I/O    2 x Bluetooth/Wi-Fi Antenna Terminal
1 x RJ45 (Ethernet) Input
1 x AM Antenna Terminal
1 x FM Antenna Terminal
1 x 1/8" / 3.5 mm (IR) Input
1 x RCA (Remote) Input
1 x RCA (Remote) Output
1 x 1/8" / 3.5 mm (Setup Mic) Input
Speaker Connectors    5 x Binding Post Pairs
HDCP Support    Version 2.2
Audio Return Channel (ARC)    Yes, eARC
HDMI CEC    Yes
Input Sensitivity    Line: 130 mV
Phono: 2.5 mV
Signal to Noise Ratio    Line: 98 dB (A-Weighted / Direct Mode)
Phono: 74 dB
Wireless Connectivity
Wi-Fi    Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)
Wireless Security    AES, TKIP, WEP 128, WEP 64, WPA-PSK, WPA2-PSK
Bluetooth    4.1
Bluetooth Profiles    A2DP 1.2, AVRCP 1.5
Supported Audio Codecs    SBC
Bluetooth Range    98.4' / 30 m
Wireless Audio Protocols    AirPlay 2
Tuner Section
Tuner Type    AM, FM
Radio Frequencies    AM: 520 to 1710 kHz
FM: 87.5 to 107.9 MHz
Sensitivity    AM Effective: 18 µV
FM Effective: 1.2 µV / 12.8 dBf
FM Mono at 50 dB: 2.8 µV / 20.2 dBf
Power
AC Input Power    240 VAC, 50/60 Hz
Power Consumption    Active: 180 W
Standby: 0.2 W
CEC Standby: 0.5 W
Physical
Dimensions (W x H x D)    17.3 x 4.1 x 14.9" / 43.9 x 10.4 x 37.8 cm (Antenna Down)
17.3 x 6.9 x 14.9" / 43.9 x 17.5 x 37.8 cm (Antenna Up)
17.3 x 4.1 x 14.5" / 43.9 x 10.4 x 36.8 cm (Antenna Removed)
Weight    18.1 lb / 8.2 kg
