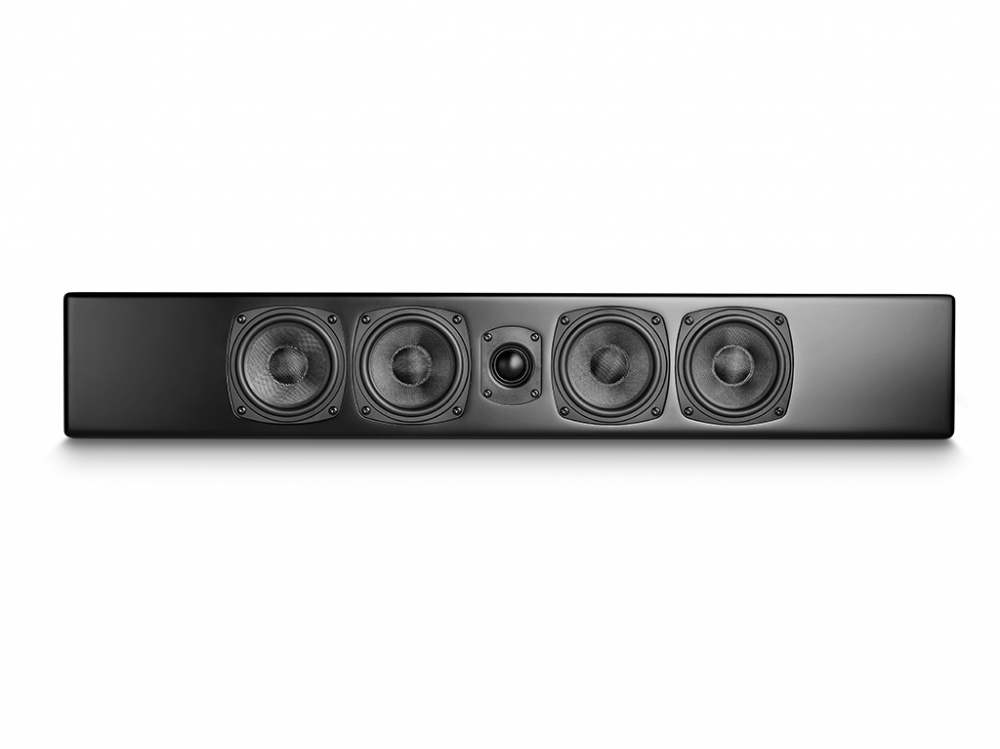

M90 Speaker

The NEW M90 Miller & Kreisel delivers everything and then a little more.

M90 a step-up to the M50 and M70 speakers. The décor-friendly On-Wall ultra slim and low enclosure design is the benchmark for all M Series.

In the NEW M90, we have added 2 additional bass drivers, it adds both sensitivity and bass response over its brethren. Ideally suited for rooms where extra output is needed.

• The M90 has each set of woofers in their own anti-resonant acoustic chamber, the center 2 working as a midrange, and the other 2 woofers covering bass frequencies. This is to ensure minimal distortion and cabinet resonances common with slim speakers.
• The M90 is also phase aligned to operate as an ideal center channel speaker, with 100% symmetric coverage vertically and horizontally

New high-performance components:

• 1” coated silk dome neodymium tweeter.
• 4” glass fiber woofers.
• Phase-focused crossover designs optimized for wall mounting.

In addition to the performance enhancements of the M90, it also sports a long profile, designed to match up to today’s large format flat screen TV’s for a more pleasing aspect ratio.

Sound
Nominal System Impedance    4 ohm    (Z-min 3.4 ohm)
Frequency Response:    70-20K Hz    (average response in room +/- 2 dB)
Frequency Roll Off:    70 Hz    (-10 dB 80 Hz near field wall mounted)
Crossover Frequency:    600 Hz / 2.0 KHz    “Phased focused” (2nd order) Tapered
Tweeter (shielded):    1” Dome    Coated Silk dome / Neodymium magnet
Woofer    4 x 4″    Coated Glass Fiber
Power Handling:    150 watt    Long term IEC-268-5 (cycled input 80-20K Hz)
Power Handling:    70 watt    Rated IEC-268-5 (constant input 80-20K Hz)
Recommended Amplifier Power:    25-200W    (Recommended amp power to driver speaker)
Sensitivity:    89 dB
System Princip:        Sealed enclosure
Connection:    Terminal gold plating    Screw for 5mm Cable / Banana
Accessories    Yes    Wall mount Brackets/Screws/Gloves
Welcome card    Yes    “Included in packing”
Dimensions
Dimensions    HxWxD:    31,5 x 5,1 x 3,3 inch / 80 x 13 x 8,5 cm (incl grill)
Weight:    Netto    12.40 lbs / 5.62 kg
