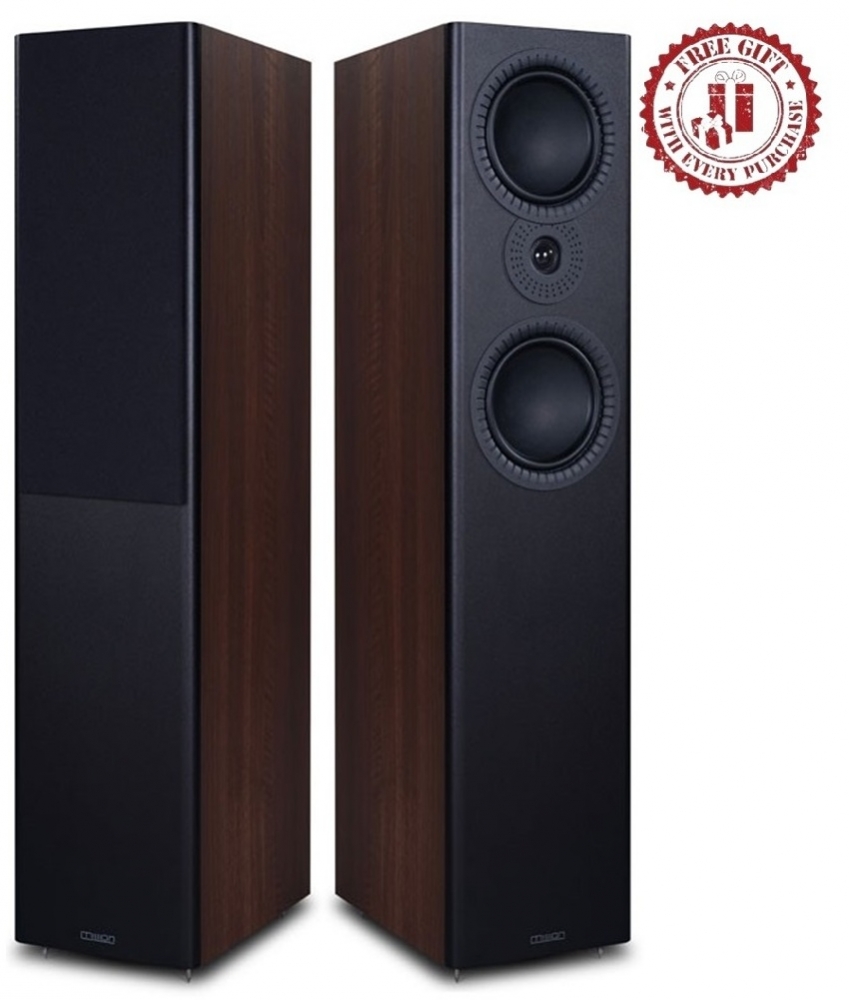

Mission LX-5 MKII Floorstanding Speaker

Mission LX-5 MKII

The LX-5 MKII uses a 25mm microfiber dome tweeter to produce crisp and detailed high frequencies, with a neodymium magnet for maximum magnetic force in a small space. The tweeter is lightweight, with impressive transient attack for all the high frequencies.

The two 6.5 inch bass drivers featured on the LX-5 MKII are a new version of the DiaDrive from Mission, using a seamless curvilinear diaphragm instead of a cone and hub cap. The drivers on the LX-5 MKII speakers are constructed from an advanced dual-layer fibre formulation, which exhibits excellent self-damping and has a very high stiffness to mass ratio. A high strength ferrite magnet ensures the magnetic is directed precisely within the voice coil, for an ultra-linear excursion and a focused performance. The bass drivers use comb-tooth separations around the drivers to help scatter interfering reflections. This helps the drivers produce a smoother frequency response with less resonance.

For the MKII version of the LX Series, Mission has updated the crossover to produce a smoother performance from the speakers, with a notable improvement on off-axis balance. To aid timing and rhythm, the LX series speakers use Mission’s inverted driver geometry, placing the midrange driver above the tweeter. The wavelengths from the woofers and tweeters coincide at the listener’s head height.

For the cabinet of the LX-5 MKII speakers, internal damping has been widely used, to reduce midrange colouration and improve bass response. Using Computer-aided design, the LX-5 MKII speaker cabinets have improved rigidity with less unwanted resonance. The speakers are available in three finishes of matte black, white or walnut.

Features

• Two 6.5 inch composite bass drivers
• 25mm microfibre dome tweeter
• Inverted driver geometry
• Internally damped cabinet for reduced colouration and better bass response

LX-5 MKII Specifications
General description    2-way floorstanding speaker
Enclosure type    bass reflex
Bass driver    6.5"(165mm) composite fibre x2
Treble driver    25mm microfibre dome
AV shield    No
Sensitivity (2.83V @ 1m)    90dB
Recommended amplifier power    30-150W
Peak SPL    106dB
Nominal impedance    8Ω Compatible
Minimum impedance    4.2Ω
Frequency response (+/-3dB)    42Hz ~ 20kHz
Bass extension(-6dB)    38Hz
Crossover frequency    2.3kHz
Cabinet Volume (in litres)    42L
Height (on plinth)    (975+20)mm
Width    226mm
Depth (with terminals)    (300+8)mm
Carton size    420 x 340 x 1090mm
Net weight    19.1kg/pcs
Gross weight    22.4kg/ctn
Finish    Walnut Pearl
