Mission M-CUBE+SE

CONTINUED SUCCESS

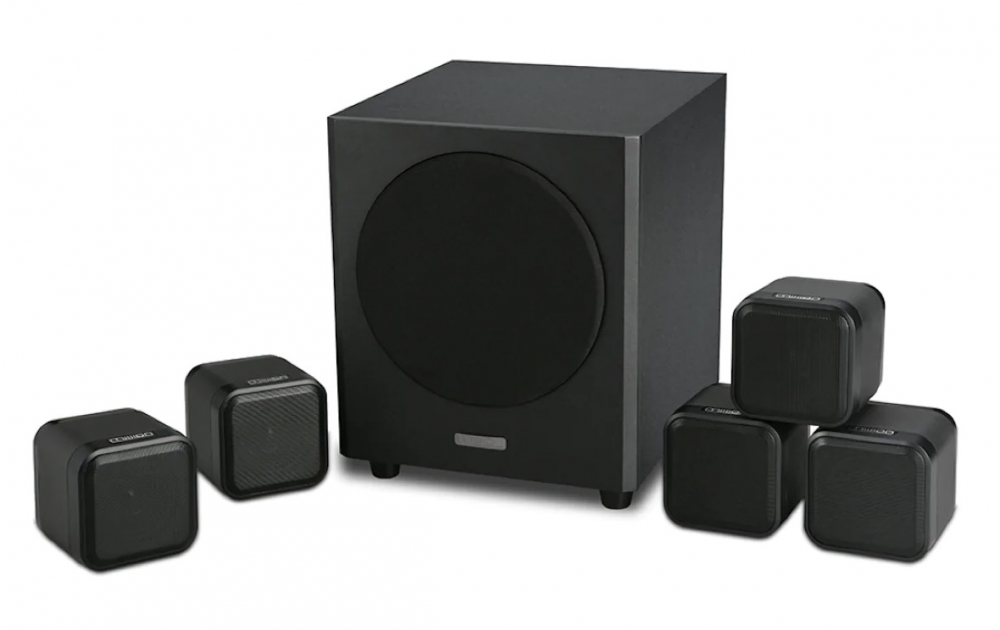

Continuing the success of the M-CUBE series we, at Mission, bring to you this latest version which is sure to be a favourite. This is the all-new M-CUBE+SE 5.1 surround sound system from the innovative M-CUBE range.

The M-CUBE+SE is designed specifically to meet the requirements of the home user who requires a fuss-free solution to Cinema and Surround Sound music in the home. Installation is simple thanks to the small, elegant appearance of the M-CUBE+SE satellite speakers multiple mounting arrangements and the wide dispersion characteristics.

5.1 SURROUND

The full-range driver in each M-CUBE+SE satellite speaker not only covers the frequency range 120Hz to 20kHz, output by an AV processor set to ‘Small’ but also disperses its output over a wide listening area.

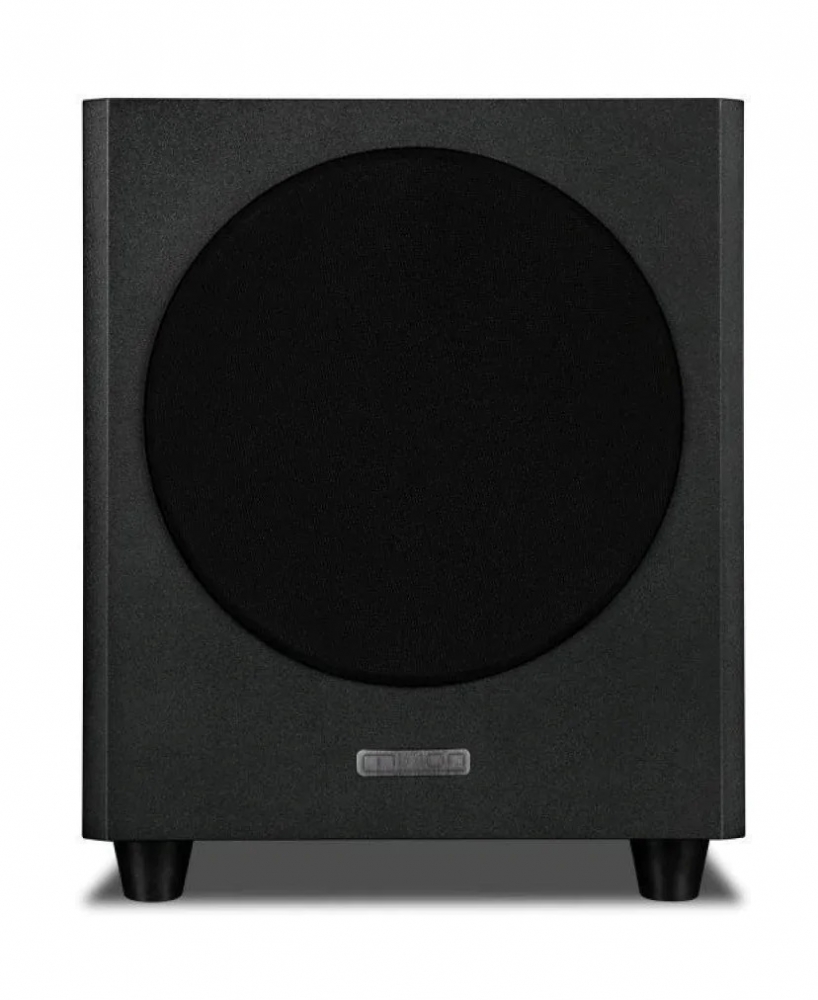

The M-CUBE+SE subwoofer is a powerhouse accepting LFE output from the AV processor and achieving a 35 – 150Hz power spectrum with exceptional dynamics and control. This is the result of using a 200mm long-throw, high linearity sub-bass unit driven by a new 150 Watt Class D amplifier equipped with precisely aligned equalization for a clear and powerful bass rendition that matches the satellites.

SATELLITE SPEAKER PLACEMENT

With easy-install on-wall or shelf mounting, the new Mission M-CUBE+SE is the solution for anyone looking for hi-fi quality sound from AV and music sources who require a versatile and discrete loudspeaker system.

ITEM    M-CUBE+SE SUBWOOFER
General Description    Active closed-box subwoofer system
Enclosure type    Closed box
Transducer complement    8 inch (200mm) long throw bass driver
Input sensitivity    200mV for maximum Ouput
Amplifier power output    70W
Peak power output    150W
Peak SPL    110 dB
Frequency response    40Hz -150 Hz
Bass extension (-6dB)    35Hz
Crossover frequency    35Hz -150 Hz
Signal -to-noise ratio(s/n)    >85dB
Special features    Phase inversion, Auto On/Off, low pass filter frequency adjustment
Dimension (H*W*D)MM    H(298+30)*W268*D294 MM
Carton Size (L*W*H) MM    390*390*525 MM (Packed in a system, incl. subwoofer and Spcs satellite speakers)
Net Weight (Kg)    12kg (Packed in a system, incl. subwoofer and Spcs satellite speakers)
Gross Weight (Kg)    14kg (Packed in a system. incl. subwoofer and 5pcs satellite speakers)
Finish colour    Black sandex & Ivory
Power requirements    AC 100V-120V~/60Hz or 220V-240V~50/60Hz
Standard accessories    Power cord, floor spikes, user manual, guarantee certificate
ITEM    M-CUBE+SE SATELLITE
General description    Wide bandwidth bookshelf/surround speaker
Enclosure Type    Close box
Transducer driver    3” Full range
AV shield    No
Sensitivity (2.83V@1M)    85 dB
Recommended amplifier power    40-80 W
Nominal impedance    8 Ohms
Minimum impedance    3.6 Ohms
Frequency response (+/-3dB)    120Hz-20KHz
Bass extension(-6dB)    110 Hz
Cabinet Volume (in litres)    0.52 L
Dimension (H*W*D)MM    100*100*103 MM
Carton Size (L*W*H)MM    390*390*525 MM (Packed in a system, incl. subwoofer and 5pcs satellite speakers)
Net weight (Kg)    12kg (Packed in a system, incl. subwoofer and 5pcs satellite speakers)
Gross weight (Kg)    14kg (Packed in a system.incl. subwoofer and Spcs satellite speakers)
Finish colour    Graphite black & Ivory
Standard accessories    Desk stand, User manual, guarantee certificate

ITEM    M-CUBE+SE SUBWOOFER
General Description    Active closed-box subwoofer system
Enclosure type    Closed box
Transducer complement    8 inch (200mm) long throw bass driver
Input sensitivity    200mV for maximum Ouput
Amplifier power output    70W
Peak power output    150W
Peak SPL    110 dB
Frequency response    40Hz -150 Hz
Bass extension (-6dB)    35Hz
Crossover frequency    35Hz -150 Hz
Signal -to-noise ratio(s/n)    >85dB
Special features    Phase inversion, Auto On/Off, low pass filter frequency adjustment
Dimension (H*W*D)MM    H(298+30)*W268*D294 MM
Carton Size (L*W*H) MM    390*390*525 MM (Packed in a system, incl. subwoofer and Spcs satellite speakers)
Net Weight (Kg)    12kg (Packed in a system, incl. subwoofer and Spcs satellite speakers)
Gross Weight (Kg)    14kg (Packed in a system. incl. subwoofer and 5pcs satellite speakers)
Finish colour    Black sandex & Ivory
Power requirements    AC 100V-120V~/60Hz or 220V-240V~50/60Hz
Standard accessories    Power cord, floor spikes, user manual, guarantee certificate
ITEM    M-CUBE+SE SATELLITE
General description    Wide bandwidth bookshelf/surround speaker
Enclosure Type    Close box
Transducer driver    3” Full range
AV shield    No
Sensitivity (2.83V@1M)    85 dB
Recommended amplifier power    40-80 W
Nominal impedance    8 Ohms
Minimum impedance    3.6 Ohms
Frequency response (+/-3dB)    120Hz-20KHz
Bass extension(-6dB)    110 Hz
Cabinet Volume (in litres)    0.52 L
Dimension (H*W*D)MM    100*100*103 MM
Carton Size (L*W*H)MM    390*390*525 MM (Packed in a system, incl. subwoofer and 5pcs satellite speakers)
Net weight (Kg)    12kg (Packed in a system, incl. subwoofer and 5pcs satellite speakers)
Gross weight (Kg)    14kg (Packed in a system.incl. subwoofer and Spcs satellite speakers)
Finish colour    Graphite black & Ivory
Standard accessories    Desk stand, User manual, guarantee certificate
