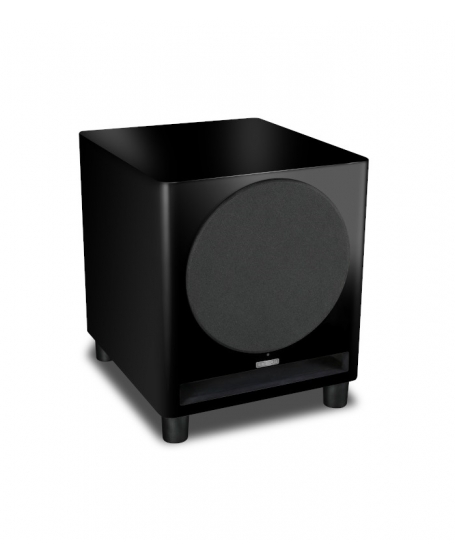

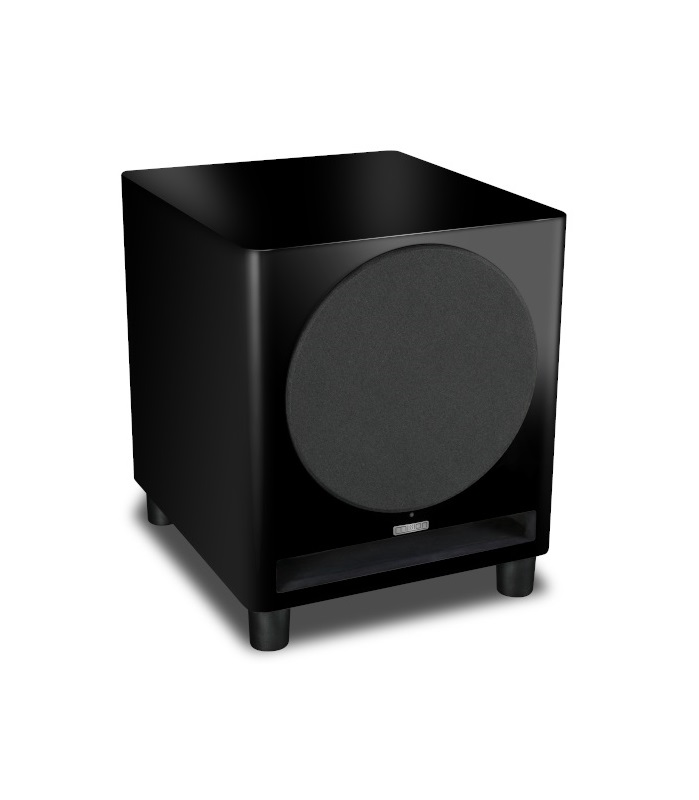

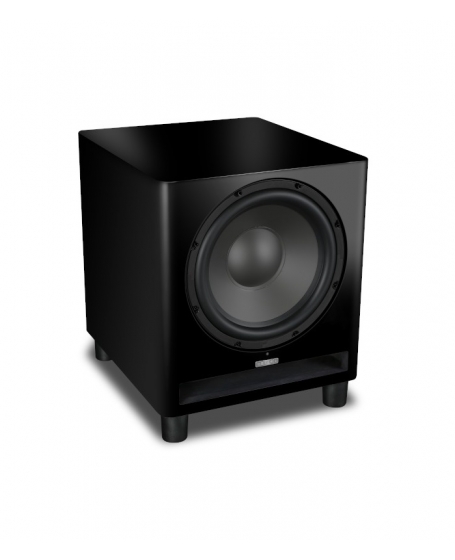

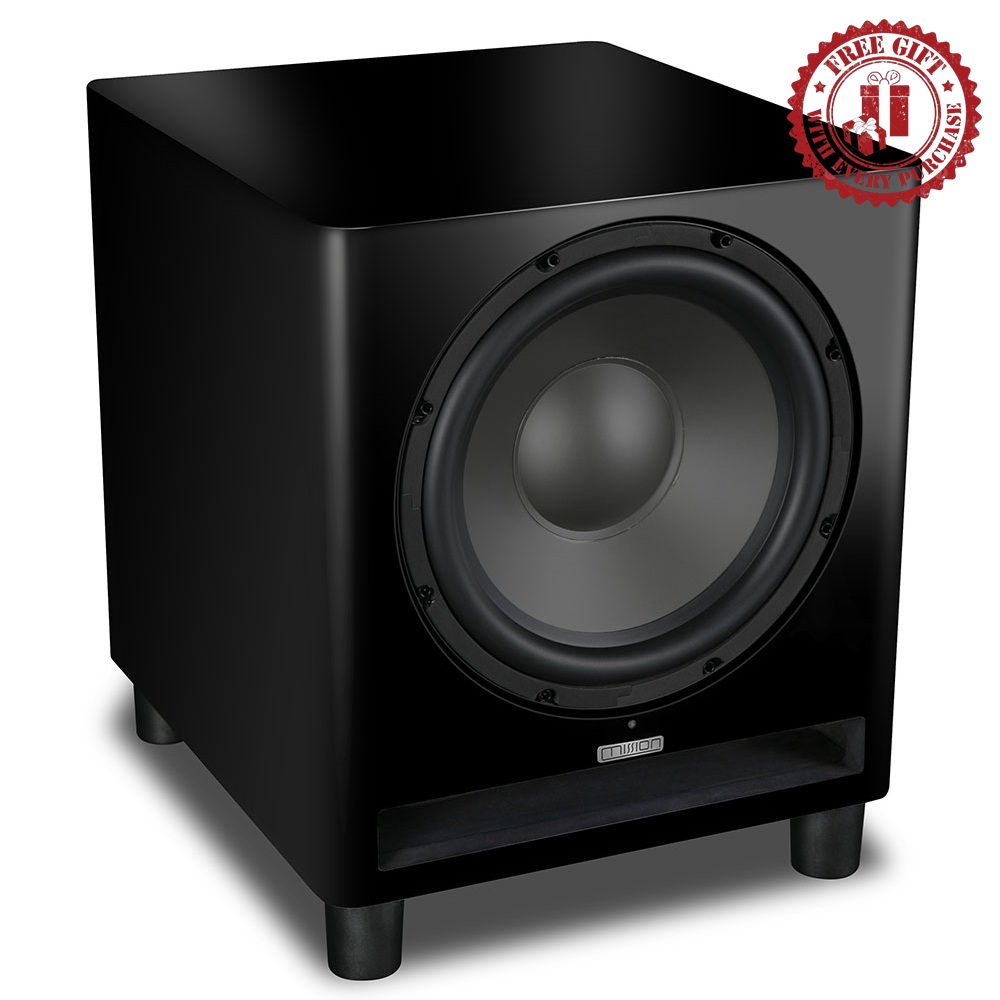

Mission ZX-12 Sub 12" Subwoofer

SKU: Mission ZX-12 Sub

RM 4,099.00

Mission ZX-12 Sub 12" Subwoofer Brand New

* Free Monster Essentials RCA2 Subwoofer Cable 3Meter
* Free gift will be packed nicely in the product’s box for shipping option
* 如果需要邮寄，我们将会把赠品放进产品包装内

Get it with 0% Credit Card Instalment Plan Up to 36 months
1) Maybank Credit Card up to 12 months ( Lazada )
2) Maybank Credit Card up to 18 months ( Shopee )
3) PBB Credit Card up to 12 months ( Shopee )
4) OCBC Credit Card up to 36 months ( SLAV )

Description
Specification

ZX-12 Sub

Subwoofer

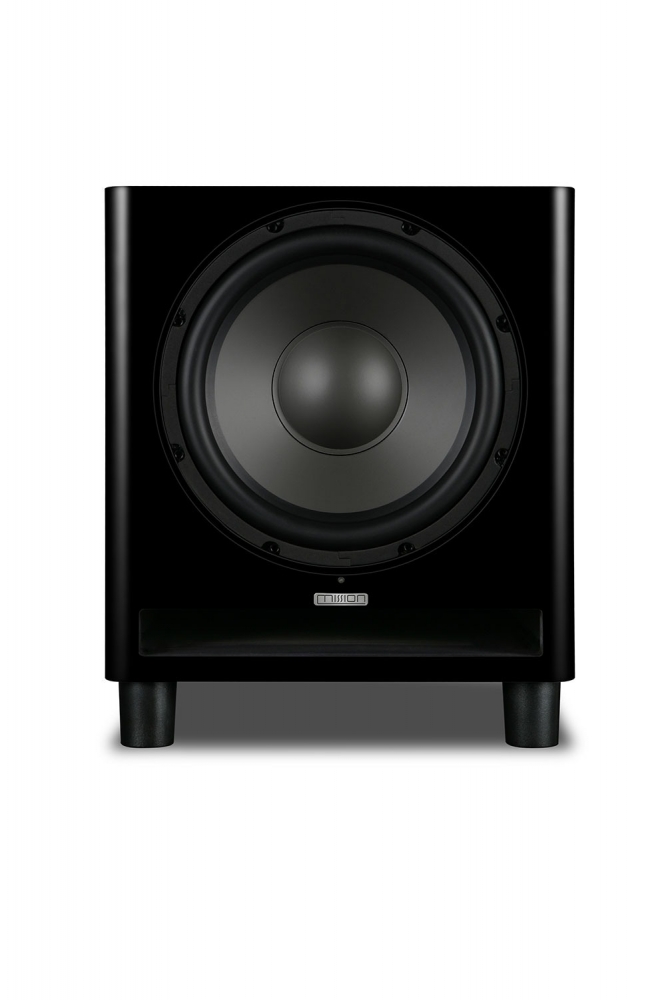

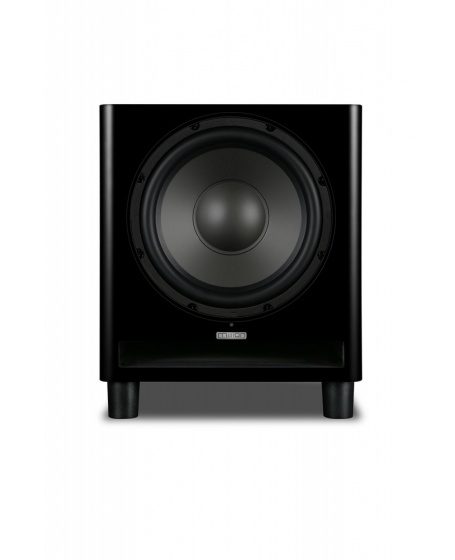

Perfect for a ZX Series home-theatre system or musical bass extension in 2-channel applications, the ZX-12 SUB utilises a 12-inch (300mm) long throw bass driver of astounding bass impact. Based on the same award-winning system found in the best-selling QX-12 SUB, the ZX-12 SUB offers a premium high-gloss paint ﬁnish to perfectly match the aesthetics of the stunning ZX Series loudspeakers.

The sealed box design provides fast and intensive bass response, while the employment of a custom designed balanced drive Class-D power ampliﬁer further provides power and speed that is usually unheard of in subwoofers of this price-class.

In addition, a variable crossover frequency control provides seamless integration into any system, offering incredible low-frequency punch, power and substance for all of your music and movies applications.

HIGH POWERED PRESICION

High Power Ampliﬁer
The built-in ampliﬁer is optimized for high impact at low frequencies. The fast response and high-power performance is perfect for movies or music.

No-Presses Paper Cones
A specially engineered 12” paper cone with increased self-damping properties offers an increased structural rigidity of the cone itself for a fuller performance and massive bass impact.

ACTIVE DYNAMIC-DRIVE

Copper Lined Vents
Reduce the magnetic distortion and also offers improved heat dissipation, letting the ZX-12 SUB rumble for hours but remain cool.

Low Pass Filter Slope
Continuously adjustable from 35Hz to 120Hz (@33dB) for seamless acoustic integration with your speaker’s performance.

High Sensitivity & Versatility

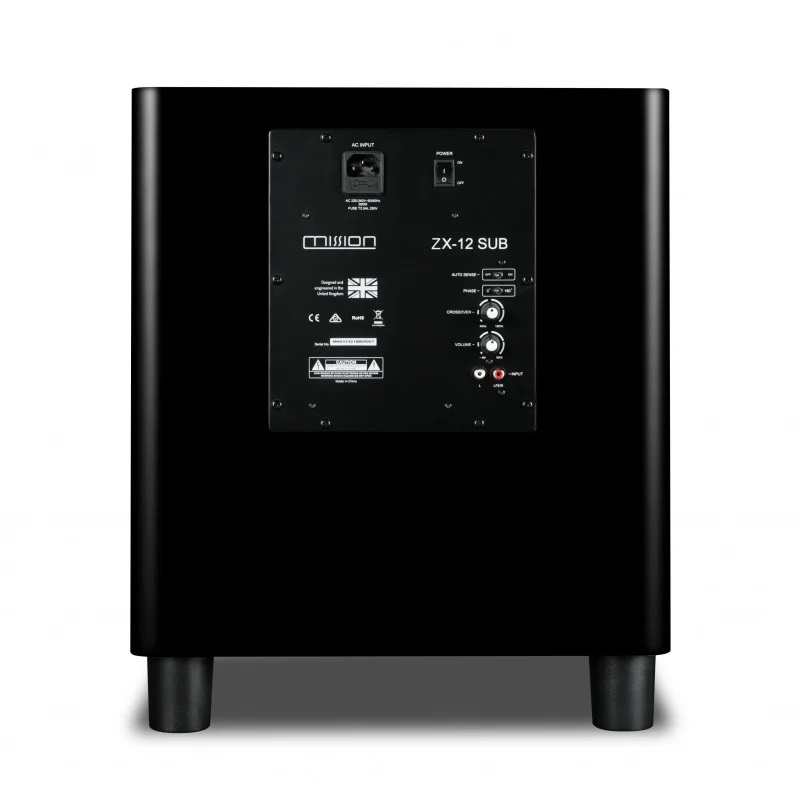

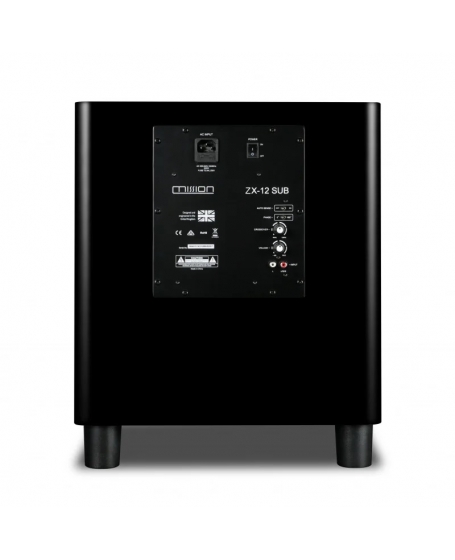

Low level inputs, output connections and a dedicated LFE input are provided. Additionally, the auto power sensor is sensitive enough to detect incoming signals of extremely low level for automatic activation of the subwoofer when required.

Drive Units   1 x (12") 300 mm cone long-throw
Frequency Response   35- 120 Hz (+-±3dB)
Ampliﬁer Power Output   300 W
Peak Power Output   450 W
Line Input Sensitivity   200mV for maximum output
Crossover Range   30 - 150 Hz
Inputs   Stereo line in (2 x RCA phono)
Mono (LFE) line in (RCA phono)
Input Impedance   Line input 10 k
LFE 5 kOhms
Signal-to-noise Ratio (s/n)   ≥ 85 dB
Avg. Max Output @1m   118 dB
Features   Phase inversion, auto on-off
Dimensions   Height: (420+58) mm (with feet)
Width: 400 mm
Depth: (450+15) mm
Net Weight   23 kg
