Mission ZX-2 + ZX-C2 + ZX-1 Speaker Package

Mission ZX-2 + C2 + ZX-1 Speaker Package

The ZX Series is the latest in a long line of distinguished and revered Mission loudspeakers and joins more recent Award winning products. The ZX series represents the most technologically advanced loudspeakers in the Mission family, with a distinct ID that will complement the finest electronics and décor.

Mission ZX incorporates purpose designed bass driver cones, precision engineered motor systems, advanced treble units and more. As ever with Mission products; ‘Music leads, Technology Follows’. No compromise.

NEW RING DOME TREBLE UNIT

Mission’s Ring Dome treble unit overcomes the problems inherent in conventional domes. With this technology the centre of the dome is fixed and voice coil attached part of the way across the dome. The dome is formed into two rings, with the voice coil in the centre so that it can drive the dome more accurately and efficiently

The result is lower distortion and superior performance, at frequencies up to 30 kHz and beyond. Transient performance is dramatically improved, as is musical detailing, particularly of instrument overtones and harmonics

NEW DIADRIVE BASS/MIDRANGE UNIT

Mission’s DiaDrive bass unit has an advanced aluminium matrix cone and is now vented to remove trapped air behind the diaphragm, thus reducing resonance and allowing a clearer midrange performance to beyond 3kHz

In ZX the driver surround is covered by a vented cover which controls the spurious output from the diaphragm edge, again improving midrange clarity

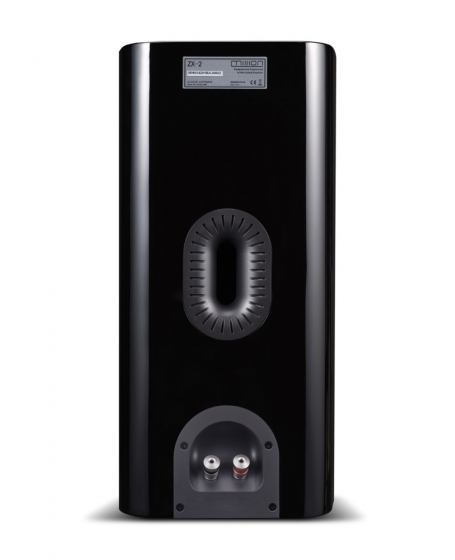

Matching ‘serrations’ are built into the flare of the slot port. High pressure airflow is streamlined from the port exit whilst the asymmetric design breaks up the ‘chuffing’ distortion normally heard from circular ports

NEW CABINET / DRIVER BRACING SYSTEM

Mission ZX bass/midrange units now feature, as standard, over-size magnet systems to deliver the punch and transient attack that feature in modern recordings

To improve the mechanical integrity of these magnet systems, special bracing methods have been developed to ensure that the bass diaphragms respond accurately to the musical waveform. Bass output is now thrillingly dynamic with superior detailing and extension

FINE TUNED CROSSOVER PERFORMANCE

Mission’s Inverted Driver Geometry (IDG) of bass/midrange and treble units has been applied to equalise acoustic path lengths. IAG’s Head of Acoustic Design, Peter Comeau, has worked tirelessly to ensure a seamless integration between the drive units, so the speaker behaves as one music making system

 ZX CONTINUES TO TELL THE STORY

Designed to stand out head and shoulders above the competition, the Mission ZX range oozes luxury in appealing gloss black and gloss white finishes. Carefully selected trims and driver materials do more than catch the eye and complement the technology at play. The Mission ZX series has an all-inclusive design that continues to tell the story of the music, not just deliver hi-fi sound

ZX-2 Specifications
General Description    2-way bookshelf speaker
Enclosure Type    Bass reflex
Transducer Complement    2-way
Bass Driver    5.25" (130mm) aluminium cone
Midrange Driver
Treble Driver    1.5" (38mm) ring dome
AV Shield    No
Sensitivity (2.0V @ 1m)    89dB
Recommended Amplifier Power    25-150W
Peak SPL    110dB
Nominal Impedance    8 ohms compatible
Minimum Impedance    3.8 ohms
Frequency Response(+/-3dB)    45Hz ~ 24kHz
Bass Extension(-6dB)    40Hz
Crossover Frequency    2.4kHz
Dimensions    420 x 240 x (350+12)mm
Net Weight    9.4kg/pcs

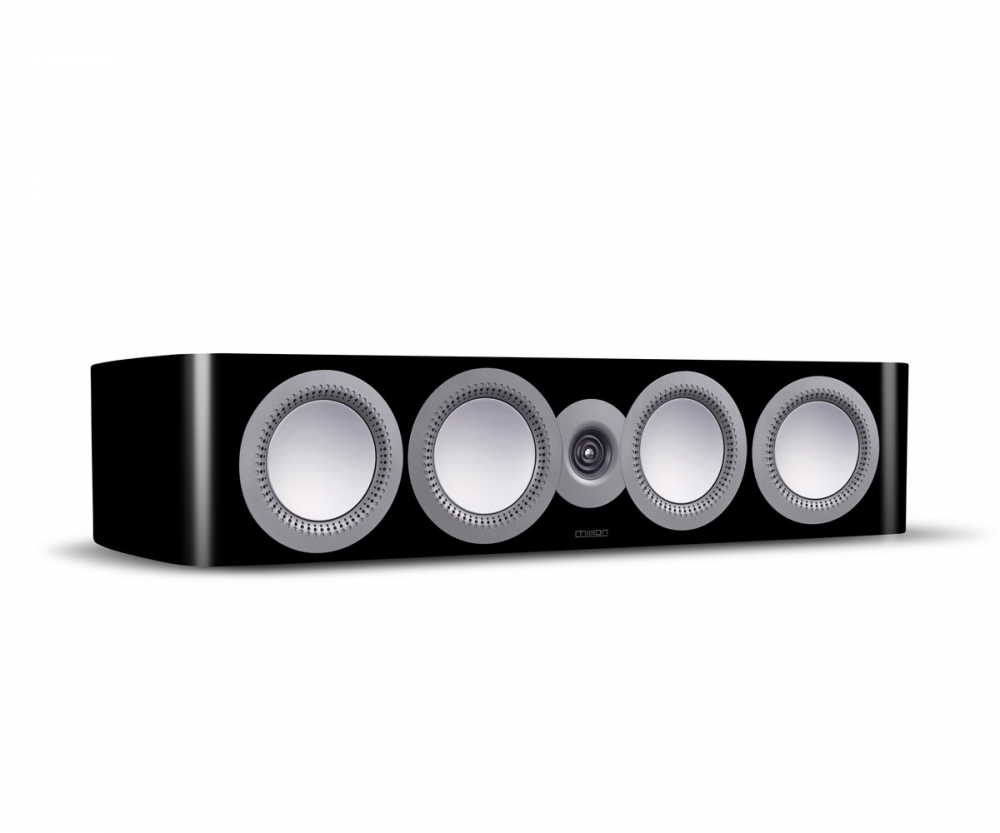

ZX-C2 Specifications
General Description    2.5-way centre speaker
Enclosure Type    Bass reflex
Transducer Complement    2.5-way
Bass Driver    5.25" (130mm) aluminium cone x4
Treble Driver    1.5" (38mm) ring dome
AV Shield    No
Sensitivity (2.0V @ 1m)    90dB
Recommended Amplifier Power    25-150W
Peak SPL    110dB
Nominal Impedance    8Ω compatible
Minimum Impedance    4.4 Ω
Frequency Response(+/-3dB)    48Hz ~ 24kHz
Bass Extension(-6dB)    42Hz
Crossover Frequency    430Hz, 2.1kHz
Dimensions (HxWxD)    180 x 880 x (300+12)mm
Net Weight    17.6kg/pcs

ZX-1 Specifications
General Description    2-way bookshelf speaker
Enclosure Type    Bass reflex
Transducer Complement    2-way
Bass Driver    5.25" (130mm) aluminium cone
Midrange Driver
Treble Driver    1.5" (38mm) ring dome
AV Shield    No
Sensitivity (2.0V @ 1m)    88dB
Recommended Amplifier Power    25-100W
Peak SPL    108dB
Nominal Impedance    8 Ohms compatible
Minimum Impedance    3.5 Ohms
Frequency Response(+/-3dB)    52Hz ~ 24kHz
Bass Extension(-6dB)    46Hz
Crossover Frequency    2.6kHz
Dimensions    300 * 240 * (350+12)mm
Net Weight    7.6kg/pcs
