Monitor Audio Bronze W10 6G 10" Subwoofer (DU)

Bronze 6G

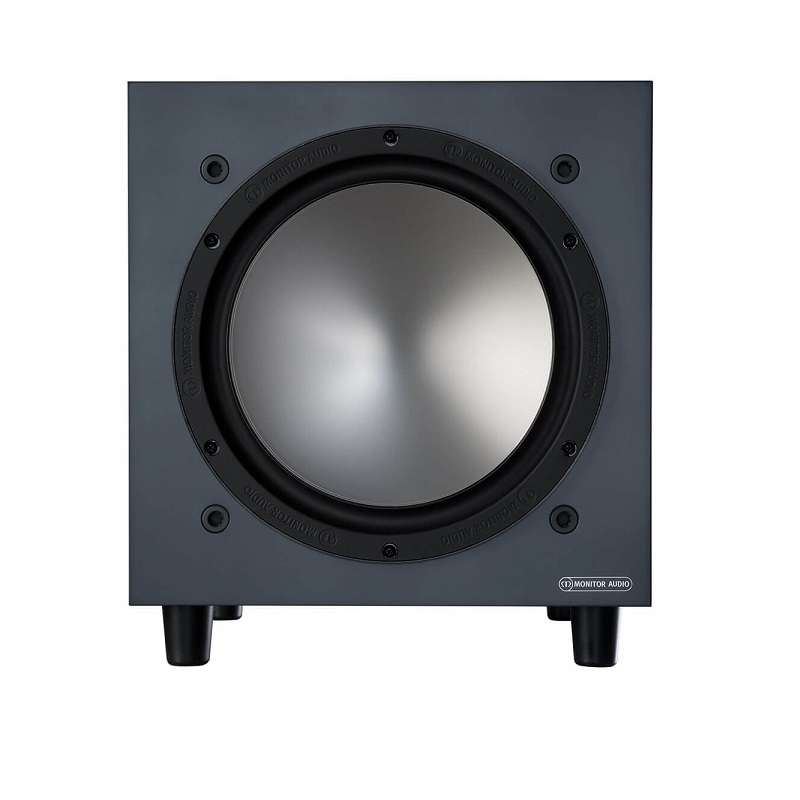

Bronze W10

If you love deep and refined bass notes, the Bronze W10 is a must-have addition to your speaker set-up as every soundscape is effortlessly reinforced by our beautifully designed subwoofer.

The Bronze W10’s long-throw 10" C-CAM subwoofer driver combines with the 10" auxiliary bass radiator to bring a vivid realism to any performance.

Our engineers have acoustically improved the driver and bass radiator by reducing the moving masses and tuning the compliances in the system to improve the transient response - kick drumsand explosions now have much more punch and precision. Reduced moving mass and improved rubber feet allows more energy to be transmitted directly into the room rather than being lost through mechanical vibrations through the floor and walls.

The Bronze W10 is a stunning addition to any room.

Key Features

• Long-throw 10" (250 mm) driver featuring ‘dished’ C-CAM
• 10" (250 mm) flat panel Auxiliary Bass Radiator (ABR) positioned underneath the unit
• Class D amplifier with high current Switch Mode Power Supply (SMPSU)

System Format
Long-throw 10" driver featuring ‘dished’ C-CAM cone. 10" flat panel ABR (Auxiliary Bass Radiator).
18 mm M.D.F. internally braced construction

Lower Frequency Limit
34 Hz (-6 dB)

Upper Frequency Limit
50 – 120 Hz with 24 dB/Octave

Drive Unit Complement
1 x 250 mm (10") C-CAM subwoofer driver featuring a 2" long throw voice coil

Linear Driver Excursion
17 mm peak to peak

Amplifier Output
220 W

Amplifier Classification
Class D with high current Switch mode power supply (SMPSU)

Phase Control
0 Degrees & 180 Degree pure Invert

Low Pass Filter Alignment
2nd order (12 dB/Octave), from 40 Hz to 120 Hz

Equalisation DSP
3 pre-set modes: Music, Movie, Impact

Auto Sensing
Line Level >3mV. Auto Standby feature after 20 mins

Audio Input/Outputs
LFE unbalanced input RCA
Stereo unbalanced inputs RCA

Input Impedance
20 kOhms input impedance

12 V Trigger
3.5 mm mono mini-jack. 6 V threshold

Electrical Certifications
CE / CB / ETL / Fcc / CCC / ErP (Energy saving compliant)

Mains Input Voltage
100 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected)

Power Consumption
Maximum 300 W, Standby <0.5 W (ErP compliance)

Fuse Type
20 mm T4AL 250 VAC

External Dimensions (Including Amp, Drivers and Terminals (H x W x D))
321 x 321 x 364 mm (125/8 x 125/8 x 145/16")

External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))
366.5 x 321 x 364 mm (147/16 x 125/8 x 145/16")

Weight (unpacked)
13.4 kg (29 lb 9 oz)
