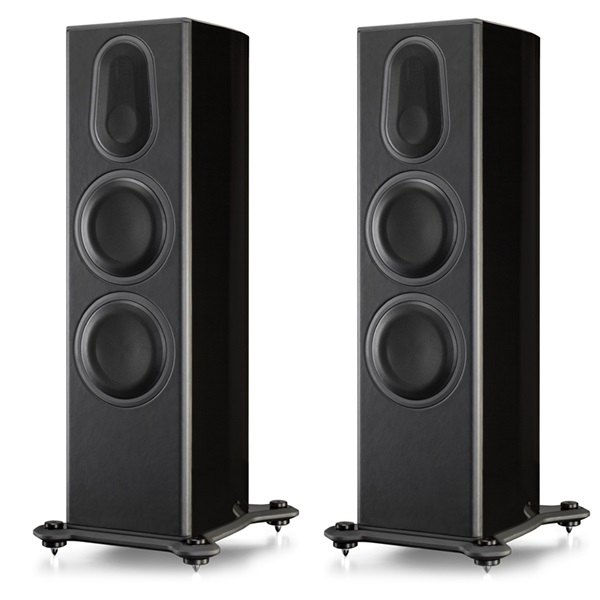

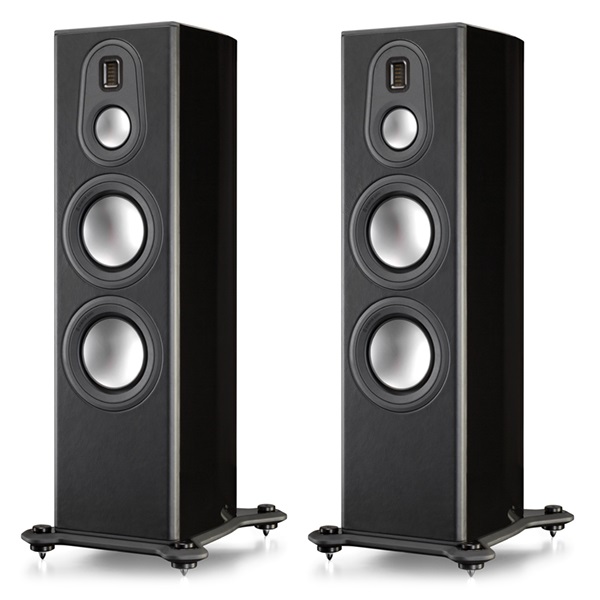

Monitor Audio Platinum PL300 MKII Floorstanding Speaker ( DU )

Platinum PL300 II

A further leap in dimension brings still greater rewards in the form of the outstanding PL300 II.

AWARDS

Standing at over a metre in height and designed to move the air in larger listening environments, the PL300 II will energise your listening across an enormous sound stage, magically studded with an abundance of natural detail. Its four driver system involving twin 8" RDT II drivers, 4" TLE loaded midrange and MPDtweeter, captures all the fluid tonal complexity and dynamic richness of each performance on a truly orchestral scale.

Explore the depths and climb to the heights of your music and film favourites with an effortlessness that confirms an inescapable truth: the bigger the Platinum, the more precious the prize.

Technology

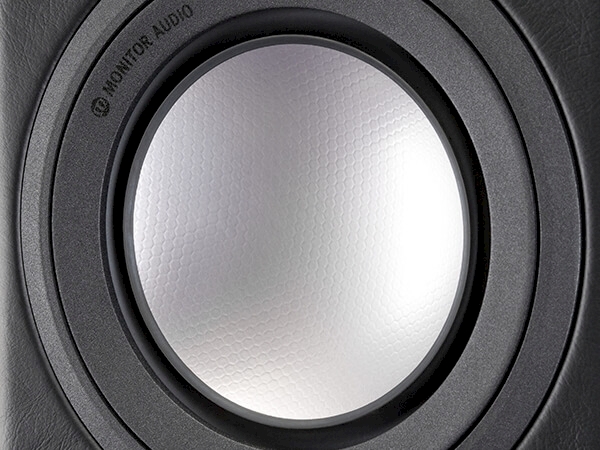

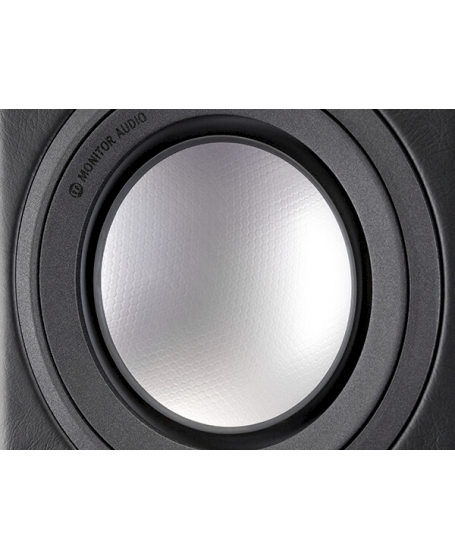

• 2 x 8" RDT II long throw bass drivers
• 4" RDT II mid-range driver
• MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
• 2 x HiVe II ports
• Patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound

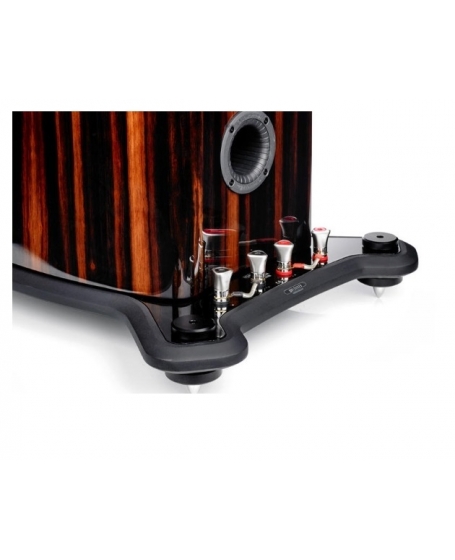

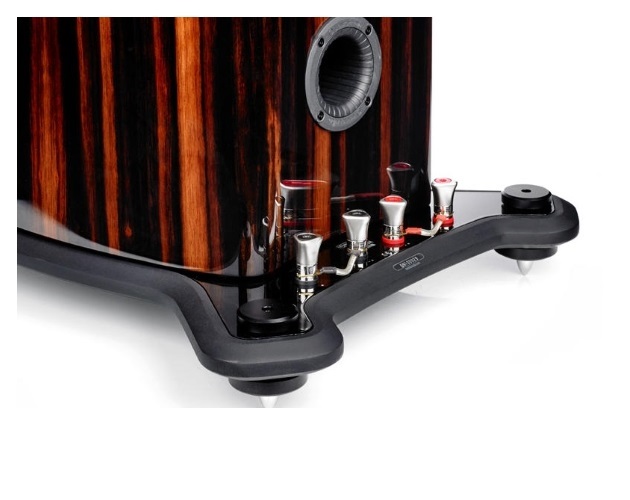

• Bespoke speaker terminals and footings
• Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
• Bolt through drivers: clearer sound and cleaner aesthetics
• Anti-Resonance Composite (ARC) mid-range housings and baffle components: reduced cabinet vibration, purer sound quality

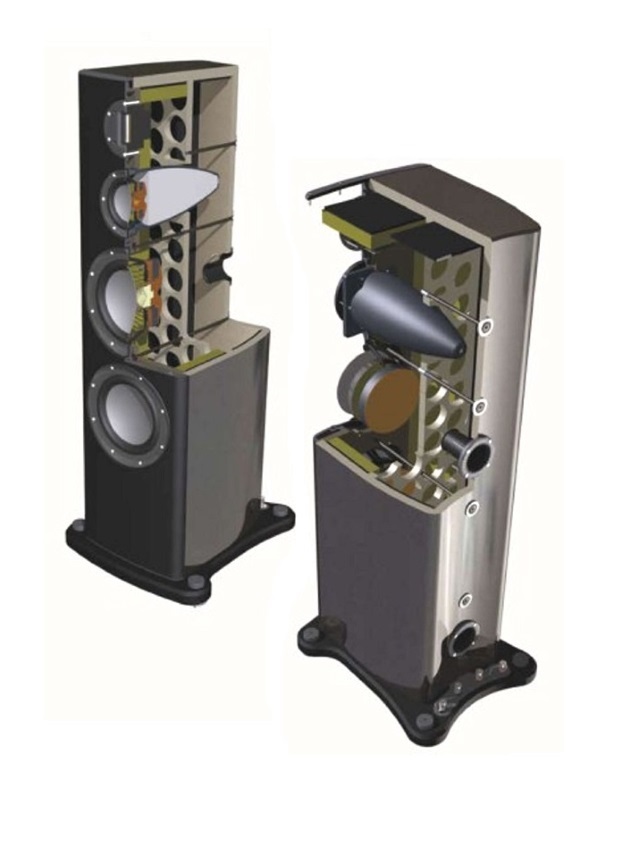

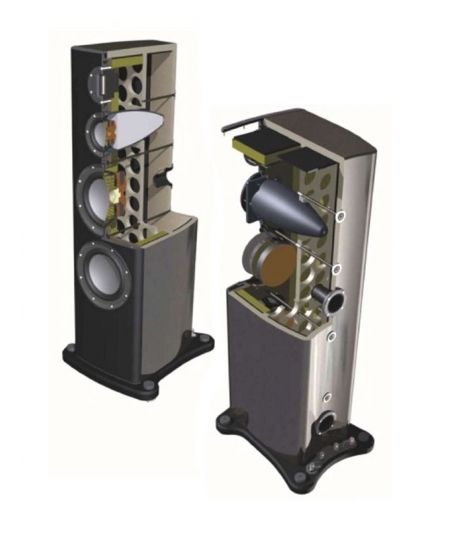

• TLE (Tapered Line Enclosure) sealed internal enclosure for mid-range drivers: greater sound accuracy and reduced cabinet vibration
• Hand-upholstered front baffle: the very highest quality Inglestone leather supplied by Andrew Muirhead
• Individual driver grilles
• Finish options: Santos Rosewood or Ebony natural wood veneers with clear gloss piano lacquer, or Piano black gloss lacquer

System Format

3 Way — 4 Driver

Frequency Response (-6 dB - IEC 268-13)

28 Hz — 100 kHz

Sensitivity (1W@1M)

90 dB

Maximum SPL

117.8 dBA (pair)

Nominal Impedance

4 ohms (4.2 ohms min. @ 111 Hz)

Power Handling (RMS)

300 W

Recommended Amplifier Requirements

100 — 300 W

Cabinet Design

Two HiVe II ports
Sealed mid-range TLEenclosure

Drive Unit Complement

2 x 8" RDT II long-throw bass drivers
1 x 4" RDT II mid-range driver
1 x MPD high frequency transducer

Crossover Frequency

MF/HF: 3.4 kHz
LF/MF: 500 Hz

External Dimensions (Including Plinth and Terminals) (H x W x D))

1075.4 x 432.4 x 517.83 mm (42^5/16 x 17 x 20^3/8")

External Dimensions (Including Feet and Spikes (H x W x D))

1111.7 x 432.4 x 517.83 mm (43^3/4 x 17 x 20^3/8")

Weight (each)

54.52 kg (120 lb 3 oz)
