NAD C 338 Network Integrated Amp + NAD C 538 Compact Disc Player

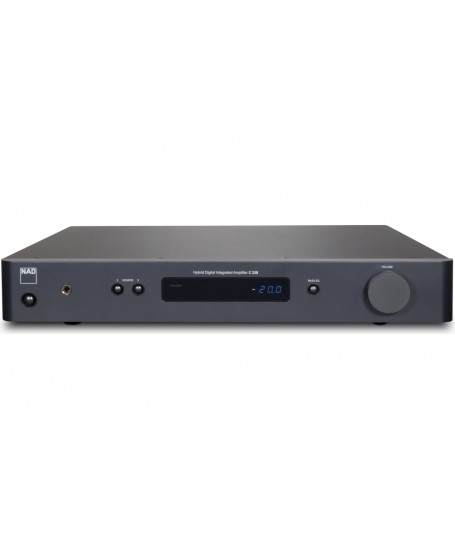

C 338

Hybrid Digital DAC Amplifier

The C 338 adds big sound to your favourite music sources and brings incredible flexibility to any stereo system. With Spotify Connect^®, Bluetooth^®, and the first-ever hi-fi amplifier to have built-in Chromecast^®, the C 338 allows you to stream and cast music directly from any music streaming app, letting you enjoy your music wirelessly. Add a turntable using the phono input and experience the warmth of vinyl collections with the room-filling sound of NAD’s HybridDigital^™ amp technology. Power, volume, source selection, and device settings are all controlled using the intuitive interface of the NAD Remote App for iOS and Android.

C 338 为您最喜爱的音乐源增加了巨大的声音，并为任何立体声系统带来难以置信的灵活性。通过Spotify Connect®、Bluetooth®和首款内置Chromecast®的高保真功放，C 338可让您直接从任何音乐流媒体应用中串流和播放音乐，让您无线享受音乐。使用唱机输入增加一个唱机，通过NAD的HybridDigital™功放技术，体验黑胶唱片收藏的温暖声音。电源、音量、音源选择和设备设置都可以通过NAD Remote App for iOS和Android的直观界面进行控制。

NAD's Most Versatile Amplifier Ever with Chromecast built-in and Hybrid Digital Technology

NAD有史以来功能最丰富的放大器，内置Chromecast和混合数字技术。

Introducing the NAD C338

Getting the Basics Right

Built with NAD’s renowned music-first approach to audio architecture and amp design, the C 338 is equipped with the most advanced components commonly found in NAD’s class-leading line of amplifiers. Always starting with the details you can hear and advancing from there, NAD develops low-noise circuitry with the precision and stability to deliver incredible, near-zero distortion sound for the most difficult speakers.

介绍NAD C338

掌握基础知识

C338采用了NAD著名的音乐第一的音频架构和功放设计方法，配备了NAD领先的功放系列中最先进的元件。NAD总是从你能听到的细节入手，并以此为基础，开发出精确而稳定的低噪音电路，为最困难的扬声器提供难以置信的近乎零失真的声音。

HybridDigital^™ Amp Technology

The search for a high-performance Class D solution led NAD to HybridDigital^™, an innovative amplifier technology that uses a variable modulation frequency to bring out the life-like qualities of music, while reducing distortion under every operating condition. This highly optimized design gives phenomenal performance to the C 338 amplifier, both measured and subjective.

混合式数字™功放技术

为了寻找高性能的D类解决方案，NAD采用了HybridDigital™，这是一种创新的放大器技术，它利用可变的调制频率来展现音乐的生命力，同时降低了各种工作条件下的失真。这种高度优化的设计使C338功放无论在测量和主观上都具有惊人的性能。

Efficient Class D Power

NAD has worked tirelessly to create the best performing Class D amplifiers that are energy efficient and produce beautiful sound—not heat—regardless of basic design principles. Using advanced measurements and data, NAD developed the C 338’s highly efficient power supply with a customised Hypex^® UCD output stage to pump out 160 watts continuously and over 300 watts instantaneously to meet the demands of the most dynamic music. This new design is very linear over a wide bandwidth and provides consistent, noise-free performance for the amplifying stages with near perfect regulation of voltage.

D级高效动力

NAD不顾基本的设计原则，不懈地努力创造出性能最好的D类功放，既节能又能产生优美的声音，而不是发热。利用先进的测量和数据，NAD开发出了C 338的高效电源，搭配定制的Hypex® UCD输出级，可连续输出160瓦的功率，瞬间输出超过300瓦的功率，以满足最动感的音乐需求。这种新的设计在宽广的带宽上具有非常线性的特性，为放大级提供了稳定、无噪音的性能，并具有近乎完美的电压调节。

Always Ready for Streaming

The C 338 has Chromecast built-in so you can cast music, tunes, podcasts, and playlists from your favourite apps on your phone, tablet or laptop to your stereo system. Spotify Connect^® lets you discover millions of songs and stream them directly to your C 338 using the Spotify^® app for a rich, wireless music experience. With the added flexibility of Bluetooth^®, your music streaming possibilities are truly limitless with the C 338.

随时准备好的流媒体

C 338 内置 Chromecast，让您可以将手机、平板电脑或笔记本电脑上的音乐、曲调、播客和播放列表从您最喜爱的应用程序中投射到您的音响系统中。Spotify Connect® 让您可以通过 Spotify® 应用程序，直接将数百万首歌曲串流到 C 338 上，为您带来丰富的无线音乐体验。有了藍牙®的靈活性，C 338 的音樂串流功能真的是無限可能。

Built-in Phono Stage for Vinyl Listening

Using a MM phono stage and an innovative low-noise circuit path, the C 338 can reproduce the warmth of LPs with accurate RIAA equalization and control the infrasonic noise that is in all recordings, without ever affecting the bass response.

内置唱机舞台，适合听黑胶唱片

C338采用MM唱机级和创新的低噪声电路路径，可以通过精确的RIAA均衡重现LP的温暖，并控制所有录音中的次声波噪声，而不会影响低音响应。

Flexible Connectivity

With a wide array of connections, including a separate headphone amplifier that can drive high-impedance studio monitor headphones, the C 338 is ready for any type of listening. Line inputs can accommodate all kinds of analogue source components, offering ideal input impedance with linear ultra-low noise buffer amplifiers to preserve the musicality of recordings. Also connect a subwoofer with low impedance line outputs and extend the versatility of this budget-friendly, do-it-all amplifier.

灵活的连接方式

C338具有多种连接方式，包括一个独立的耳机放大器，可驱动高阻抗录音室监听耳机，可满足任何类型的聆听需求。线路输入可以容纳各种模拟声源元件，提供理想的输入阻抗，搭配线性超低噪声缓冲放大器，可保留录音的音乐性。还可以连接一个具有低阻抗线路输出的超低音扬声器，扩展了这款预算友好型的多功能功放的通用性。

C 538

Compact Disc Player

NAD has an enviable reputation for creating great sounding products at very affordable prices and nowhere is this more evident than in NAD’s CD Players. NAD’s veteran engineers know exactly where to spend just a little extra money for a better quality part, in order to extract the very best sound from the Compact Disc. CD Players use mechanical, digital, and analog technology to produce sound, and all three forms of engineering greatly affect the end result and require careful design and engineering.

NAD的CD播放机以其实惠的价格创造出了令人羡慕的好声音，这一点在NAD的CD播放机上体现的淋漓尽致。NAD的资深工程师们知道，只要多花一点钱，就能得到更优质的零件，从而从光盘中提取出最好的声音。CD播放机采用机械、数字、模拟技术来制作声音，这三种形式的工程都对最终的效果有很大的影响，需要精心设计和工程。

Careful Design and Engineering

NAD has an enviable reputation for creating great sounding products at very affordable prices and nowhere is this more evident than in NAD’s CD Players. NAD’s veteran engineers know exactly where to spend just a little extra money for a better quality part, in order to extract the very best sound from the Compact Disc. CD Players use mechanical, digital, and analog technology to produce sound, and all three forms of engineering greatly affect the end result and require careful design and engineering.

A solid mechanical foundation is paramount in reducing external vibration and providing precise location of the CD drive mechanism. This allows smooth operation and a minimum of tracking errors. Heavy gauge steel and non-resonant plastic moldings are carefully engineered to provide optimum results. The transport is mounted on reinforced steel rails and over 30 fasteners are used to lock the assembly together and maintain precise dimensional integrity.

Precise clocking of the digital data stream allows the Wolfson 24 bit DAC to provide accurate linearity for the PCM data conversion to analog waveform. Audio OP Amps buffer the output without adding noise or distortion to the music. Multi-layer PCBs using surface mount components allow for an enhanced circuit layout with very short signal paths. Powering these elements is a custom designed active power supply that provides multiple regulated voltages to the transport, digital circuits, analog circuits, and the control and display circuits. The result of this careful engineering is a sound that is at once both detailed and natural, with dramatic dynamic contrasts.

The NAD C 538 includes many desirable features that enhance listening pleasure. Front panel controls are duplicated on the hand held remote allowing Play, Pause, Skip, and Scan functions. In addition, many more features are available from the remote handset, such as RANDOM: Tracks/files are played at random mode, PROGRAM: Enter or exit program mode, REPEAT: Track, file, folder or whole disc is repeated, RPT A-B: Playback sequence is repeated. The dimmable dot matrix display shows tracks, total playing time. Track time, disc time, and remaining time are all available. The C 538 also can play CD-R/CD-RW discs allowing you to burn songs from your computer for playback on your CD Playing system.

Because these songs are encoded in MP3 or WMA format, you can fit up to 10 hours of music on a single disc which is great for party mixes and ambient listening. There are also both optical and coaxial digital outputs that allow connection to an external DAC or digital component (like an AVR) to provide the most efficient and best sounding system setups.

Although music downloads and streaming continue to grow in popularity, CDs are still the primary listening source for millions of people around the world. NAD continues to innovate and improve its CD Players to get improved performance while keeping prices low. Whether you are creating your first home system, or upgrading your current CD Player, you should consider NAD’s 45 year record of excellence, and its commitment to music lovers everywhere, when selecting a new player.

精心设计与工程

NAD的CD播放机以其实惠的价格创造出了令人羡慕的好声音，这一点在NAD的CD播放机上体现的淋漓尽致。NAD的资深工程师们知道，只要多花一点钱，就能得到更优质的零件，从而从光盘中提取出最好的声音。CD播放机采用机械、数字、模拟技术来制作声音，这三种形式的工程都对最终的效果有很大的影响，需要精心设计和工程。

坚实的机械基础是减少外部振动和提供CD驱动机构的精确位置的关键。这使得操作平稳，跟踪误差最小化。重型钢和非共振塑料模具经过精心设计，可提供最佳效果。运输机安装在钢筋钢轨上，并使用了30多个紧固件将组件锁在一起，保持精确的尺寸完整性。

数字数据流的精确时钟化使Wolfson 24位DAC能够为PCM数据转换为模拟波形提供精确的线性度。音频OP放大器可以缓冲输出，不会给音乐增加噪音或失真。使用表面贴装元件的多层印刷电路板可实现增强型电路布局，信号路径非常短。为这些元件供电的是一个定制设计的有源电源，为传输、数字电路、模拟电路、控制和显示电路提供多路稳压电源。这种精心设计的结果是，它的声音既细腻又自然，具有戏剧性的动态对比。

NAD C 538包含了许多理想的功能，提高了聆听的乐趣。前面板的控制功能与手持式遥控器相同，可以实现播放、暂停、跳过和扫描等功能。此外，遥控听筒还提供了更多的功能，如RANDOM等。以随机模式播放曲目/文件，程序。进入或退出程序模式，REPEAT：重复播放曲目、文件、文件夹或整个光盘，RPT A-B：重复播放顺序。可调光的点阵式显示，显示音轨、总播放时间。音轨时间、光盘时间、剩余时间均可显示。C 538还可以播放CD-R/CD-RW光盘，允许您从电脑上刻录歌曲，在CD播放系统上播放。

因为这些歌曲都是以MP3或WMA格式编码，所以你可以在一张光盘上容纳多达10个小时的音乐，这对于派对混音和环境音乐来说是非常不错的。此外，还有光纤和同轴数字输出，可以连接到外部DAC或数字组件（如AVR），提供最有效和最佳的系统设置。

尽管音乐下载和音乐流媒体不断增长，但CD仍然是全球数百万人的主要收听来源。NAD不断创新和改进其CD播放器，以获得更好的性能，同时保持较低的价格。无论您是打造您的第一套家庭系统，还是升级您目前的CD播放器，在选择新的播放器时，您都应该考虑到NAD 45年来的卓越记录，以及它对各地音乐爱好者的承诺。

NAD C 338
Preamplifier
Line In, Subwoofer Out
THD (20Hz-20kHz)
<0.005% at 2V out
Signal/Noise Ratio
>106dB (IHF; A-weighted, 500mV out, unity gain)
Input Impedance (R and C)
56 kilohm + 100pF
Maximum Input Signal
>4.5Vrms (ref. 0.1% THD)
Output Impedance
Source Z + 200 Ohm
Input Sensitivity
50mV (100Hz ref. 500mV out, Volume maximum
Maximum voltage output – IHF load
>4.5V (ref. 0.1% THD)
Line In, Headphone Out
THD (20Hz-20kHz)
<0.005% at 1V out
Signal/Noise Ratio
>105dB (IHF; A-weighted, 32 Ohm loads, ref. 2V out, unity gain)
Frequency Response
±0.3dB (20Hz-20kHz)
Channel Separation
>56dB at 1kHz
Output Impedance
0.5 Ohm
General Specifications
Line In, Speaker Out
Continuous Output Power into 4 Ohms and 8 Ohms (Stereo)
>50W (at rated THD, 20-20kHz, both channels driven)
IHF Dynamic Power
8 Ohm 80W
4 Ohm 150W
2 Ohm 210W
THD (20Hz-20kHz)
<0.03% (250mW to 50W, 8 Ohm and 4 Ohm
Signal/Noise Ratio
>98dB (A-weighted, 500mV input ref. 1W out in 8 Ohm)
Clipping power
>60W (at 1kHz 0.1% THD)
Peak output current
>18A (in 1 Ohm, 1 ms)
Damping Factor
>300 (ref. 8 Ohm, 20Hz to 6.5kHz)
Frequency Response
±0.3 dB (20Hz-20kHz)
Channel Separation
1kHz >75dB
10kHz >65dB
Input Sensitivity (For 50W in 8 Ohm)
Line In: 380mV, Digital In: 18% FS
Sample Rate
Up to 24 bit/192kHz
Phono In, Speaker Out
THD (20Hz-20kHz) (Stereo)
<0.3% at 50W out
Signal/Noise Ratio
>82dB (200 Ohm source, A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF A-weighted, ref. 500mV out)
Input Sensitivity
4.1mV (ref. 50W 1kHz 4 Ohm out, Volume maximum)
Frequency Response
±0.3dB (20Hz-20kHz)
Input Impedance
47 kilohm + 100pF
Maximum Input Signal
>80mVrms (ref. 0.1% THD)
Power Consumption
at ECO Standby mode
0.4 Watts*
at Control Standby mode
1.8 Watts**
OFF mode (Power switched OFF)
0 Watts
* – After 20 minutes of no user interface interaction and no active source input
** – With established wireless Bluetooth connectivity and 20 minutes of no user interface interaction and no active source input

NOTE: Bluetooth connectivity can be enabled or disabled via press and hold of PLAY button of AMP 3 remote control

Weight & Dimensions
Gross Dimensions (W x H x D)*
435 x 70 x 285mm (17 1/8 x 2 13/16 x 11 1/4)”
Net Weight
4.85kg (10.7lb)
Shipping Weight
5.85kg (12.9lb)

NAD C 538
GENERAL PARAMETERS

Output level

Analog: 2.2 ± 0.1 V

Frequency response

±0.5 dB (ref. 0 dB 20 Hz-20 kHz)

Total harmonic distortion

≤0.01% (ref. 1 kHz, Audio LPF)c

Signal-to-Noise Ratio

≥110 dB (ref. 1 kHz, A-weighted)

Channel balance

±0.5 dB (ref. 0dB 1kHz)

Channel separation

-4.6 ±0.8 dB (ref. 0dB 1 kHz, 5 kHz)

-9.0 ±1.0 dB (ref. 0dB 1 kHz, 16 kHz)

Standby power

<0.5W

Idle power

<7.5W

DIMENSION AND WEIGHT

Gross dimensions (W x H x D)

435 x 70 x 249 mm (Gross)* / 17 3/16 x 2 13/16 x 9 13/16 inches

Net Weight

3.0 kg / 6.6 lbs

Shipping Weight

4.3 kg / 9.5 lbs
