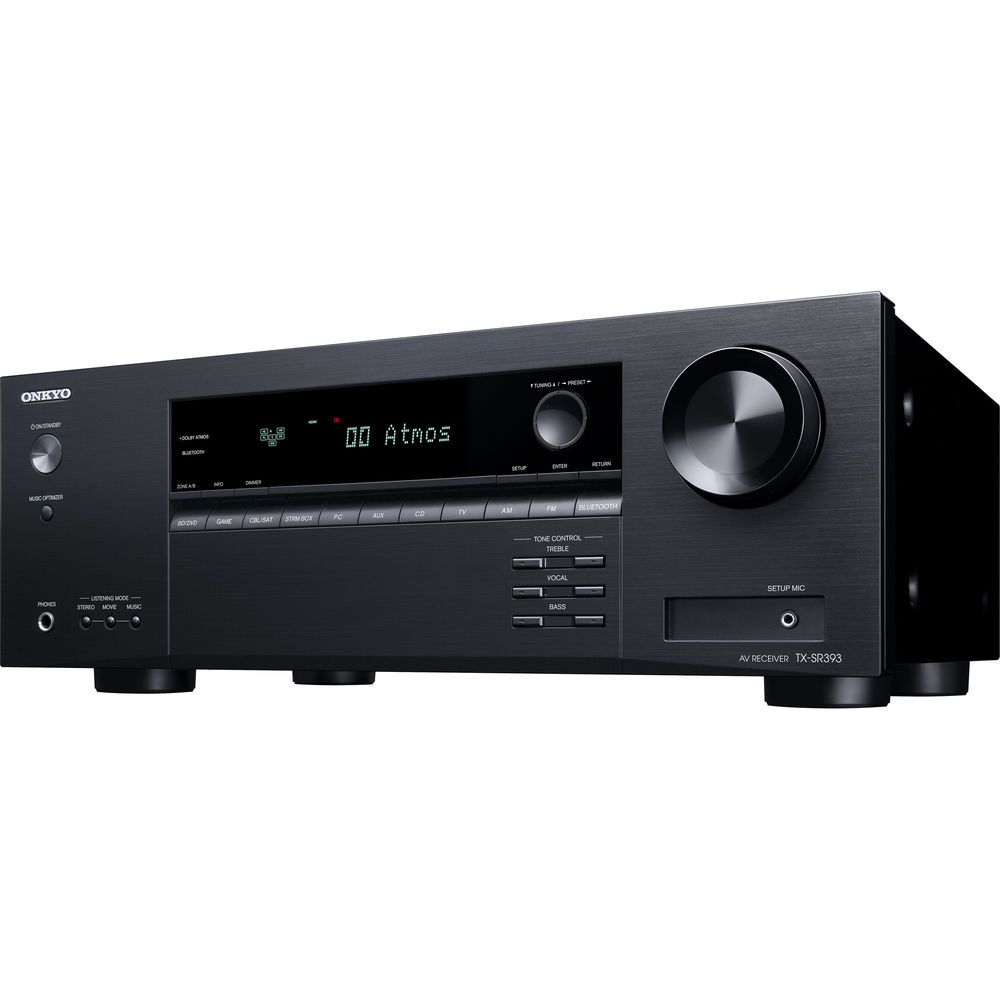

TX-SR393

5.2-Channel AV Receiver

Choose a speaker layout to suit your room, from a space-saving 2.1-ch setup enhanced with 3D surround-sound courtesy Dolby Atmos Height Virtualizer* or DTS Virtual: X^® to a 3.2.2-channel system for native object-audio playback.

Whatever way you play it, dynamic power is ready to thrill thanks to authentic high-current analog amps backed by a thumping custom transformer.

Ready for 4K Entertainment

Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision^®, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.

Smooth and Easy Bluetooth Streaming

Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.

Dolby Atmos® and DTS:X® – Setting Sound Free

Dolby Atmos^® and DTS:X^® formats allow engineers to map sound anywhere in 3D space, effects moving from speaker to speaker all around the room and wrapping your audience in the latest films and games. You can also enjoy your 3D speaker layout with classic titles. Dolby Surround^® and DTS^® Neural:X find overhead cues in legacy soundtracks and upmix for awesome spatial realism.

Dolby Atmos Height Virtualizer

When playing any Dolby^® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

SPECIFICATIONS
Amplifier Section
Power output (Front L/R / Center / Surround L/R)
 155 W/Ch
 (6 Ω, 1 kHz, 10% THD, 1 channel driven)
 135 W/Ch
 (6 Ω, 1 kHz, 1% THD, 1 channel driven, IEC)
THD+N (Total Harmonic Distortion + Noise)
 0.08% (20 Hz–20 kHz, Half Power)
Input sensitivity and impedance
 200 mV rms/47 kΩ (Line)
Frequency response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone control ±10 dB, 20 Hz (Bass)
 ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 109 dB (Line, IHF-A)
Speaker impedance 4 Ω–16 Ω
Tuner Section
Tuning frequency range
FM 87.5 MHz–108 MHz
AM 530 kHz–1,710 kHz
 522 kHz–1,611 kHz
FM/AM preset memory 40 Stations
General
Power supply AC 220–240 V~, 50/60 Hz
Power consumption 465 W
Standby power consumption
0.2 W
Dimensions (W x H x D) 435 x 160 x 328 mm
Weight 8.2 kg
CARTON
Dimensions (W x H x D) 525 x 240 x 405 mm
Weight 10.5 kg
Supplied Accessories
• Indoor FM antenna • AM loop antenna • Quick Start Guide
• Setup Mic for AccuEQ • Remote controller • AAA (R03) batteries x 2
