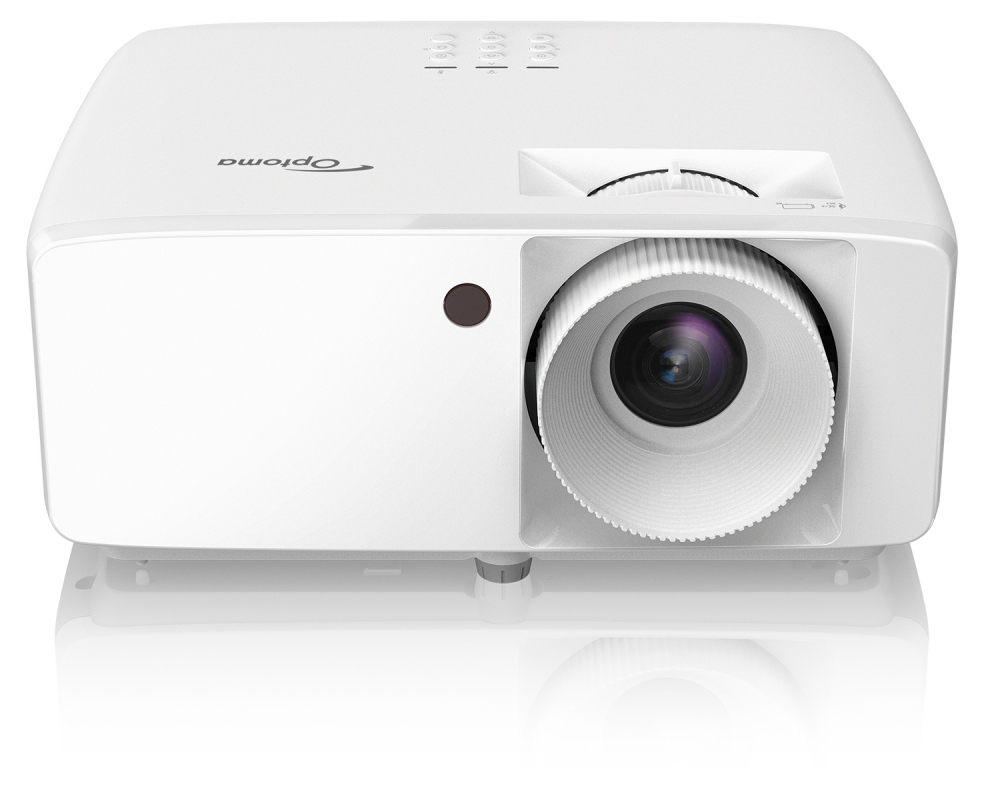

Optoma AZH430

Ultra-Compact High Brightness FHD 1080p Laser Projector

Ultra-Compact High Brightness FHD 1080p Laser Projector

The AZH430 is Optoma's most compact hassle free FHD 1080p DuraCore laser projector to date. Designed for maintenance-free continuous operation, it can be installed in virtually any orientation and location due to the small and lightweight footprint (34% smaller)

Designed with the environment in mind this model cuts power by 40% vs a typical Optoma lamp based product. In addition, being built around laser technology this ensure a long product lifespan without the need for additional lamps. Optoma have looked to minimize product design to cut logistic impacts on the environment cutting CO2 and reducing our overall carbon footprint.

This feature-packed projector has a built-in speaker and its laser technology delivers up to 30,000 hours of maintenance-free laser light source. Designed with ultimate control and convenience in mind, this projector comes with an RS232 connection for monitoring and controlling as well as a 1.3x zoom functionality for flexible setup.

This new model is geared for meeting rooms, medium-sized exhibition venues, events or tradeshows. It maintains excellent image quality as brightness and colour saturation is preserved for longer compared to lamp-based systems.

Features

4K & HDR Compatible

High dynamic range (HDR) technology improves contrast ratio, brightness, and color depth on the display, delivers brighter whites and deeper black levels. It enhances the details and depth of field, making the images clearer and more realistic.

Optoma DURACORE Made for Environmental Sustainability

Designed with environmental friendliness in mind, Optoma is dedicated to providing eco-friendly, cost-effective, and reliable products, that bring better experiences to people all around the world. With the future-proofed laser technology, our products are energy-saving, mercury-free, and more economical.

Carbon Footprint Reduction

Projectors with the latest laser light source reduces 1265kg CO2e for 20,000 hours of usage, which can save about 1.8 acacia trees*.

*One acacia tree has 718kg carbon fixation ability. Therefore, saving 1265kg CO2e = saving 1.8 trees.

Eco-friendly laser light source

With the latest laser technology and higher power conversion efficiency, the product saves up to 40% of power consumption compared with a lamp-based projector at similar capacity

Mercury Free

High power consumption and mercury pollution in traditional lamp-based projectors are gradually replaced with more reliable, mercury-free, and eco-friendly lamp-free laser projectors.

Maintenance Free & Economical

Laser projectors are durable with up to 30,000 hrs. life span (eco) and 24/7 operation, which save cost on the lamp replacements, and has a long-term lifespan for any professional applications.

Compact and Reliable

Designed with simplicity in mind, Optoma dedicates to minimizing the product size and optimizing the component to be compact yet reliable enough for daily use.

Replace the thermal module with the heatsink.
The latest phosphor wheel is optimized from 54mm to 47mm compared to the previous-gen.
Remove the LVPS and replace it with an power adapter, which is easily to be repaired and replaced.

Optimized Packaging

With compacter product size, comes reduced packaging size as well. While package size reduced by 47%, it allows doubled quantity of products to be carried in the same space. It also help reduce 41% of carbon footprint per unit, offering a more environmental friendly and cost-efficient logistics option

Amazing colour

Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

360 projection*

Images can be projected over a 360° range* along the projector’s horizontal axis.

*For more information please refer to the user manual

Portrait projection

Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Device Control by HDMI CEC Link

When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link feature. This lets one device or multiple devices in a group power on/off simultaneously.

Quick start-up and shutdown

This projector features quick start-up and shutdown and reaches full brightness quickly. To maximise energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.

Low Noise: Quieter than a Whisper

Less than 30 dB in ECO mode.

Dispaly/image
Display technology DLP™
Resolution 1080p Full HD (1920x1080)
Brightness 4,500 lumens
Contrast ratio 300,000:1
Native aspect ratio 16:9
Aspect ratio - compatible 4:3,16:9
Keystone correction - horizontal +/-30°
Keystone correction - vertical +/-30°
Has vertical auto keystone correction Yes
Displayable colours (millions) 1073.4
Horizontal scan rate 15 ~ 140Khz
Vertical scan rate 24 ~ 120Hz
Uniformity 80%
Screen size 0.76m ~ 7.62m (30" ~ 300") diagonal

Lamp info
Light source type Laser
LASER life 30,000 hours

Optical
Throw ratio 1.12:1 ~ 1.47:1
Projection distance 1m - 8m
Zoom 1.3
Zoom type Manual
Focal length 16.90 ~ 21.61
Native offset 116%

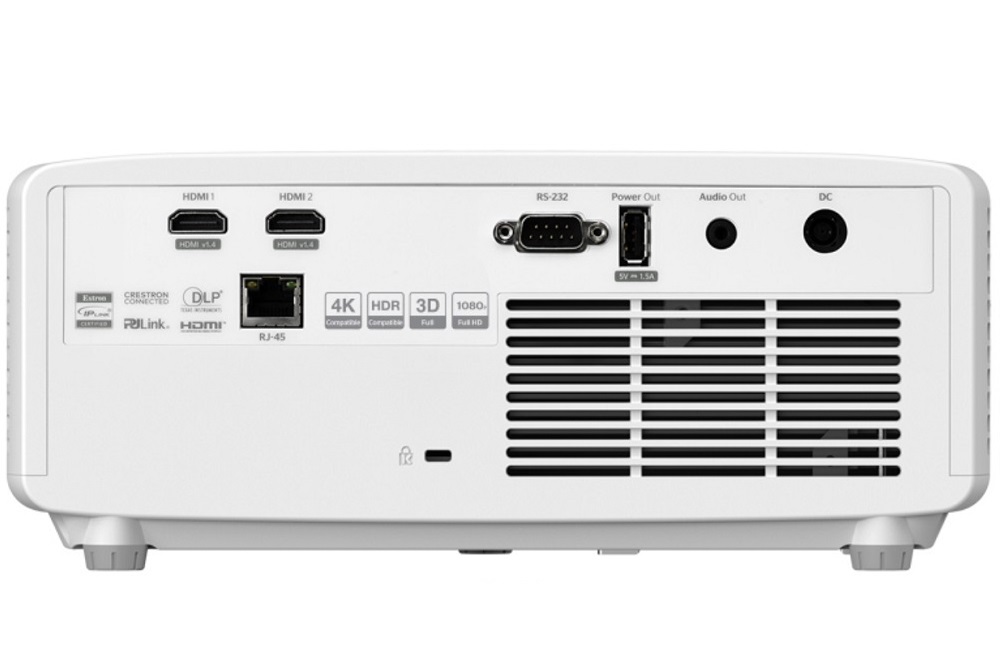

Connectivity
Connections
Inputs 2 x HDMI 2.0, 1 x RJ45
Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A
Control 1 x RS232


General
Noise level (typical) 27dB
PC compatibility UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-r
3D 3D ready
Security Security bar, Kensington Lock, Password protected interface
IP rating IP6X
OSD / display languages 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation Yes
360° operation Yes
Operating conditions 0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m
Speaker count 1
Watts per speaker 15W
In the box
AC power cord
Remote control
Basic user manual

Networking
LAN - control LAN Control
LAN Yes

Power
Power supply DC input 19V via a 180W power adapter (AC input 100~240V, 50/60 Hz to DC 19V)
Power consumption (standby) <0.5W
Power consumption (min) 121W
Power consumption (max) 176W

Weight and dimensions
Dimensions (W x D x H) 274 x 216 x 114
Gross weight 4.2 kg
Net weight 3 kg
