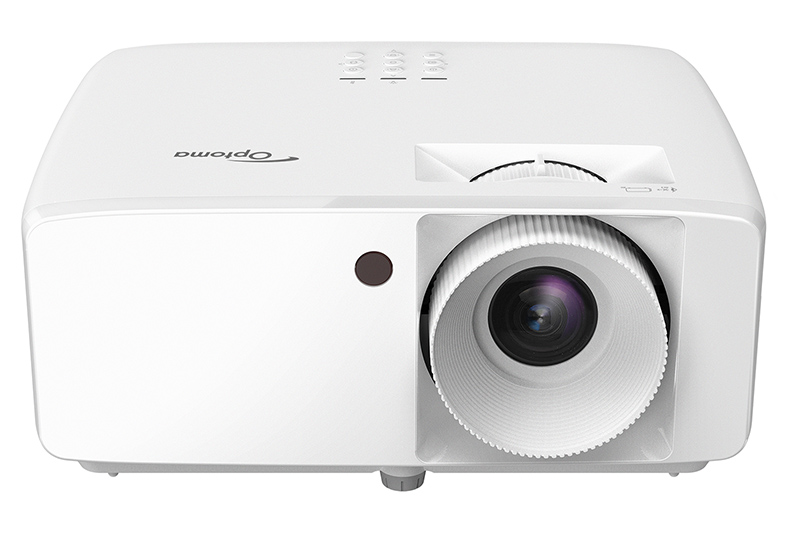

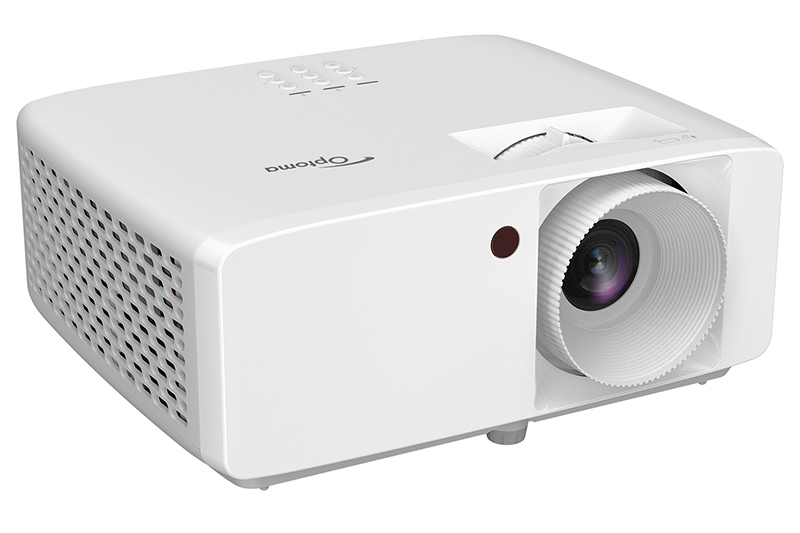

ZW350e

Ultra-compact high brightness laser projector

The ZW350e is Optoma’s most compact, hassle free WXGA DuraCore laser projector to date. This 4000-lumen projector is built for maintenance-free continuous operation up to 30,000 hours, while its small and lightweight footprint makes it 34% smaller than any other projector in the Optoma range, offering flexible installation in virtually any orientation and location.

Designed with the environment in mind, the ZW350e cuts power consumption by up to 47% compared to a typical lamp-based Optoma projector. In addition, laser technology maintains brightness and colour saturation for longer, ensuring excellent image quality and a long product lifespan without the need for routine lamp changes. Optoma has minimized the size of the projector to cut logistical impacts on the environment, lowering CO2 levels and reducing our overall carbon footprint. The ZW350e is also the first in a line of products from Optoma with packaging made from recycled and reusable materials.

This feature-packed projector also has a built-in speaker and an RS232 connection point for ultimate control and monitoring – making it perfect for meeting rooms, medium-sized exhibition venues, events and tradeshows.

Designed for the future

We are committed to reducing the overall environmental footprint of our products so we can do right by the planet.

Designing innovative products with sustainability in mind considers every phase of a product's lifecycle, from design, manufacturing, logistics, and usage, to packaging.

Energy-saving technology

Reduce power consumption by up to 47% compared to lamp-based solutions.

Reduced carbon footprint

Compact products made with fewer materials to minimise logistical environmental impact.

Eco-friendly packaging

Packaging made from recycled and reusable materials.

ights on viewing

This versatile projector combines high brightness and vivid colours for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.

*With no direct sunlight or lights directed on screen.

DuraCore

Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

360 projection*

Images can be projected over a 360° range* along the projector’s horizontal axis.

*For more information please refer to the user manual

24/7 operation

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.

Auto power off

There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

Integrated speaker

Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.

USB-Power

Use the USB-A port to power an HDMI dongle, such as Google Chromecast.

Specifications
Display/image
Display technology DLP™
Resolution WXGA (1280x800)
Brightness 4,000 lumens
Contrast ratio 300,000:1
Native aspect ratio 16:10
Aspect ratio - compatible 4:3,16:9,16:10
Keystone correction - vertical +/-40°
Displayable colours (millions) 1073.4
Horizontal scan rate 15 ~ 140Khz
Vertical scan rate 24 ~ 120Hz
Uniformity 75%
Screen size 0.76m ~ 7.62m (30" ~ 300") diagonal
Lamp info
Light source type Laser
LASER life 30,000 hours
Optical
Throw ratio 1.54:1 ~ 1.72:1
Projection distance 1m - 10m
Zoom 1.1
Zoom type Manual
Focal length 21.85 ~ 24.00
Native offset 112%
Connectivity
Connections Inputs 2 x HDMI 1.4a 3D support
Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A
Control 1 x RS232
General
Noise level (typical) 27dB
PC compatibility WUXGA,1080P,UXGA, SXGA+,SXGA
,WXGA+,WXGA,720P,XGA,SVGA,VGA
2D compatibility NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz
SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p,
720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack:
1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D Full 3D
Security Kensington Lock, Password protected interface
IP rating IP6X
OSD / display languages 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi,
Finnish, French, German, Greek, Hungarian, Indonesian, Italian,
Japanese, Norwegian, Polish, Portuguese, Romanian, Russian,
Chinese (simplified), Spanish, Swedish, Chinese (traditional),
Turkish, Vietnamese
24/7 operation Yes
360° operation Yes
Operating conditions 5°C ~ 40°C, Max. Humidity 85%, Max. Altitude 3000m
Speaker count 1
Watts per speaker 15W
In the box Power adaptor
Remote control
Basic user manual
Power
Power supply 100V ~ 240V, 50-60Hz
Power consumption (standby) <0.5W
Power consumption (min) 89W
Power consumption (max) 140W
Weight and dimensions
Dimensions (W x D x H) 274 x 216 x 114
Gross weight 4.2 kg
Net weight 3 kg
