Pro Ktv KA33+Pro Ktv KV1950+Pro Ktv Pro88MK3+JBL MK10 Karaoke Package

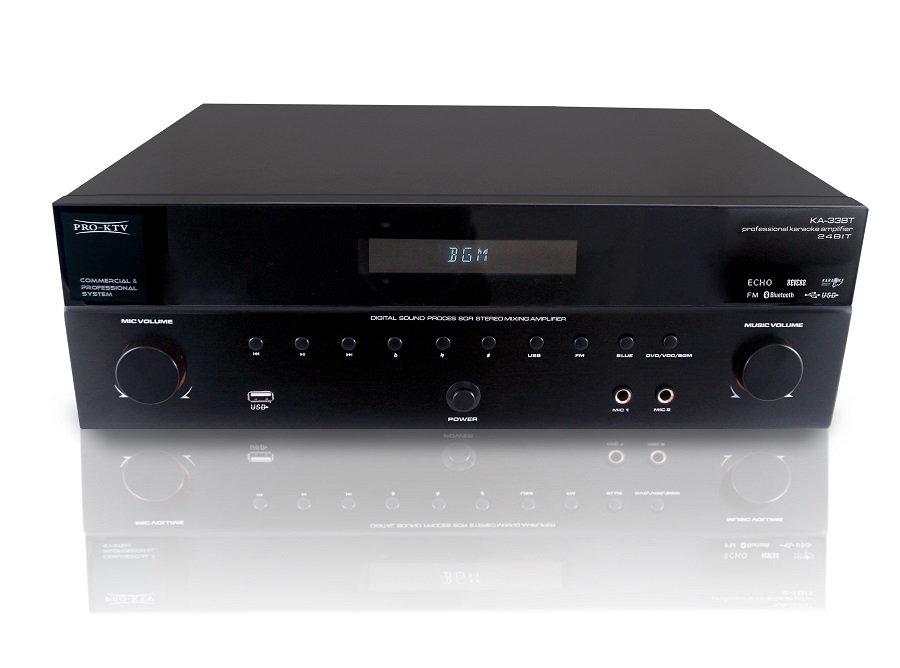

Pro-Ktv KA-33BT

Professional Karaoke Amplifier

• Bluetooth
• USB
• Digital Key Control
• Echo Control, Repeat Adjustment, Speed Adjustment
• Quality, Reliability And Versatility

Pro Ktv KV1950

All In One KOD Player 4000GB
Ultimate Karaoke-On-Demand System

New Advance features:

With 19.5” Built In LED Touch Screen
Unlimited cloud songs library​
Song Reverse & Forward
Connect HP by QR code
Singer scoring
Huge Volume Song Storage (4000GB)
Select song Via Touch Screen Monitor Or Smart Devices
Convinient And Quicker
Song Order Function Up to 200 Songs On Queue
New Songs Update Via Free Cloud Download System
Voice Command
Key Control
Internet Browser
Youtube
Floor Standing Or Desk Top Version
Preloaded 57000 Songs
400000++ Songs Using Wifi
88v Processor
One year Warranty

Pro Ktv KV1950正版一体机 4000GB 智能点歌机功能：
带19.5”电容触摸屏
云端歌库更加齐全
免费新歌下载
歌曲倒带，快进
云端加歌即唱
手机扫码点歌
歌曲评分
触摸屏或手机点歌
云端下载速度更快
语音点歌
音调升降功能
容易安装方便携带
Youtube
刷屏上网
可选择站立式或桌面式
4000GB硬盘 (57000 歌曲)
400000++ 歌曲，需有Wifi
88v主板
一年保用

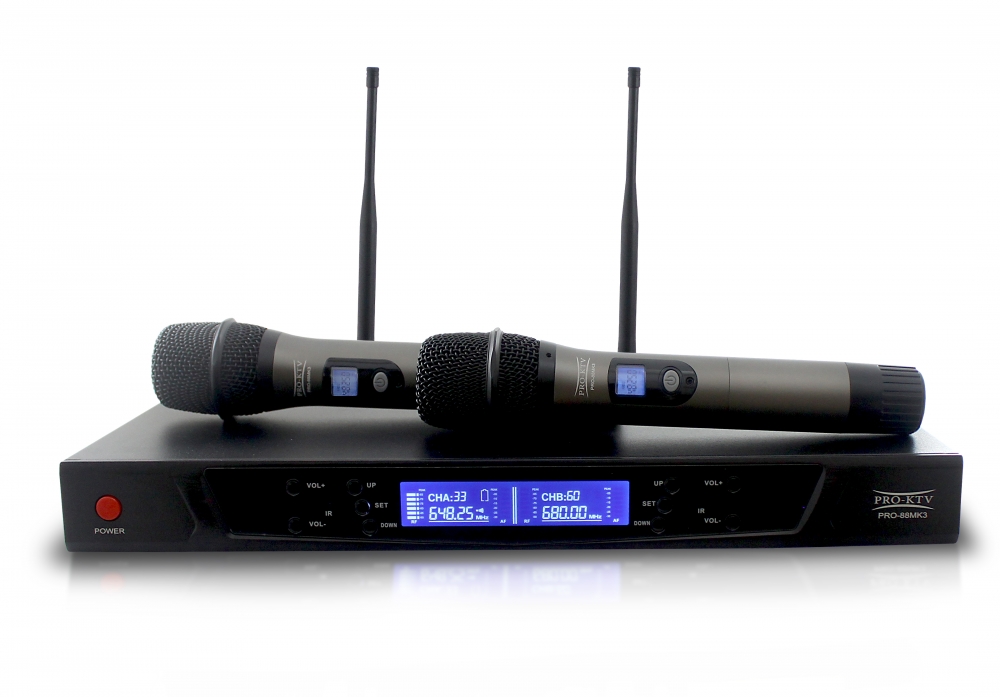

Pro Ktv Pro88MK3 Wireless Microphone

High Definition Multi-Channel Wireless Microphone

• 200 Channel
• Multi-Channel Function
• LCD Display Screen
• Modern Design
• Features Rugged And Lightweight Construction
• Antena Design Which Advance RF Transmission Reliability

~Two-channel UHF wireless microphone system with Receiving Mode CPU-controlled diversity.

• Dual “Pilotone & NoiseLock” squelch prevent random noise interference sources like computers, karaoke machines and DVD players.
• Ideal for for DJ,Karaoke. Stable , easy to install.

MK10

10-Inch 2-Way Full-Range Loudspeaker System

MK10 is a 2-way full-range loudspeaker designed by JBL for KTV boxes. It uses a 10” woofer and two 3” tweeters to realize exceptional acoustic performance – high power, low distortion, and remarkable electro-acoustic conversion efficiency.

The 10” woofer is specially designed for high power handling and features a non-pressed long fiber pulp cone with foam surround, which provides enough stiffness and reliability while processing the electromagnetic force. A demodulating aluminum ring is fitted to guarantee minimum distortion and power compression. For the high frequencies, two 3” paper cones are installed, in consideration of their light weight and, most importantly, their ability to reproduce high notes bright, smooth and with excellent dispersion.

To optimize power distribution between low and high frequency transducers and for better frequency response, a precision-engineered crossover is utilized. The cabinet to support the tweeters is built in a V-shape so as to further improve the coverage and sensitivity, two factors essential to a karaoke speaker.

MK10 presents itself as a mix of edgy design and high tech through its light-coffee palette, wave-like front grille, and luminous JBL ENTERTAINMENT logo. The light-coffee colored enclosure is constructed of premium quality MDF and finished in durable vinyl wraps. Two high-strength M10 suspension points are provided for bracket mounting. 16-gauge steel is used to build the corrugated grille and to protect the components inside. JBL’s PSL (Passive Sound Lighting) Technology is what’s behind the glowing JBL ENTERTAINMENT logo and making JBL sound visible.

FEATURES

• Specially designed 10” woofer fitted with demodulating aluminum ring for high power handling, low distortion and minimum power compression
• High-efficiency 3” paper cone tweeters provides excellent high-frequency response
• V-shape cabinet to support the tweeters further improves the coverage and sensitivity
• Enclosure constructed of premium quality MDF and finished in durable vinyl wrap
• Precision engineered crossover for optimal power distribution and frequency response
• Wave-like front grille and light-coffee palette create a stylish appearance
• PSL (Passive Sound Lighting) Technology illuminates JBL ENTERTAINMENT logo and showcases JBL’s devotion to innovation.

Pro - Ktv KA-33BT Karaoke Amplifier
Output Power  ~  8 ohms 150W + 150W
                            4 ohms 250W + 250
Weight  ~  13kg
Frequency  ~  20Hz - 20KHz
Sound Adjustment  ~  Music Low - Bass 100Hz - + 10dB
                                   Music    High - Treble 10KHz - + 10dB
                                   Mic Low - Bass - + 6 dB
                                   Mic High - Treble + 6 dB
Input Signal Power  ~  Music - 170mV
                                    Microphone - 13mV
Vector Unaffected   ~  Less than 0.007%
Size  ~  495mm x 410mm x 190mm
Signal Noise Ratio  ~  80db

Pro Ktv KV1950
Size  ~  500mm(W) - 305mm(H)
Weight  ~  7 kg
Measure  ~  Dv 12v
Video Output  ~ NTSC,75Ω,1VP-P
Sound Output  ~  Setreo R/L,1KΩ, 20Hz - 20KHz
Static Noise  ~  -105dB
IR Reception  ~  INFR , 38KHz
PS/2 Device Input  ~  Mouse
VGA Output  ~  RGB ,75Ω, Monitor
Externally Connected IR Receiver  ~  INFR , 38KHz

Pro Ktv Pro88MK3
Dimensions    420(W) × 44(H) × 204(D) mm
16.5(W) × 1.7(H) × 8.0(D) in.
Weight    1.7kg / 3.7lbs.

JBL MK10
System Type    10″, 2-way, bass-reflex
Frequency Range (-10 dB)    48 Hz - 17 kHz
Frequency Response (±3 dB)    64 Hz - 14 kHz
Sensitivity (1w@1m)    90 dB
Nominal Impedance    8 Ohms
Maximum SPL    113 dB (119 dB peak)
Power Rating
(Continuous/Program/Peak)    200 W/400 W/800 W
Coverage Pattern    110° × 100° (H × V)
Dimensions (H × W × D)    290 mm × 505 mm × 320 mm
11.4 inch × 19.9 inch × 12.6 inch
Net Weight    11 Kg (24.3 lbs)
LF Driver    1 × 10″ (254 mm) woofer
HF Driver    2 × 3″ (76.2 mm) tweeter
Input Connectors    Binding Post
Enclosure Construction    Vinyl covered 12mm MDF
