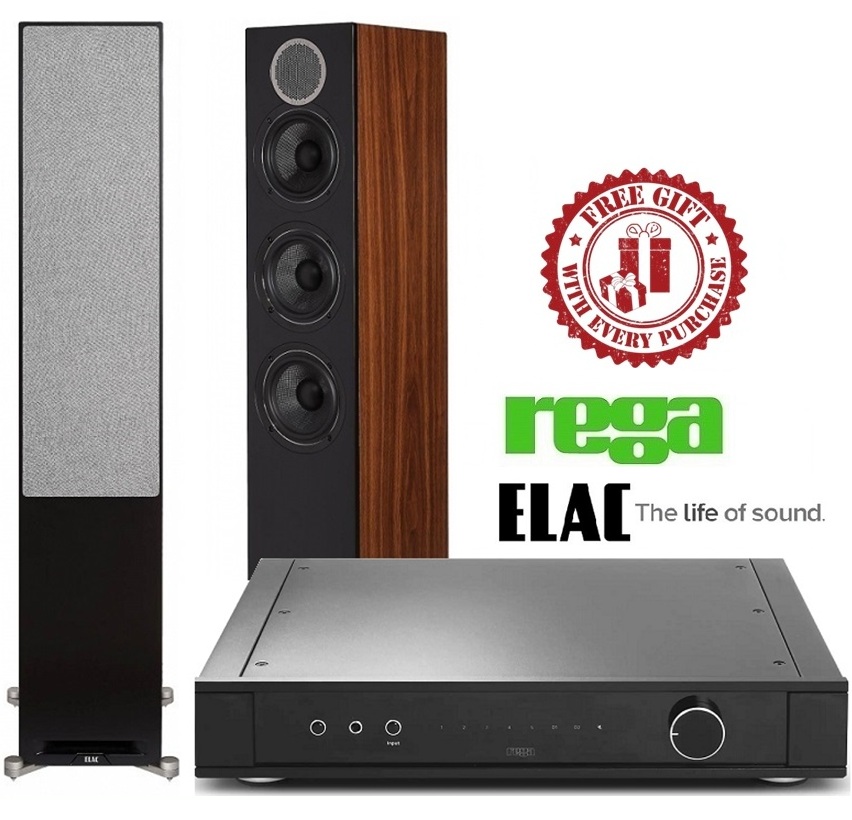

Rega Elex MK4 + ELAC Debut Reference DFR52 Hi-Fi System Package

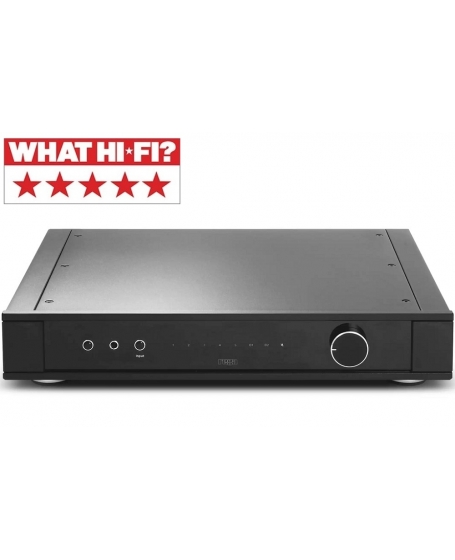

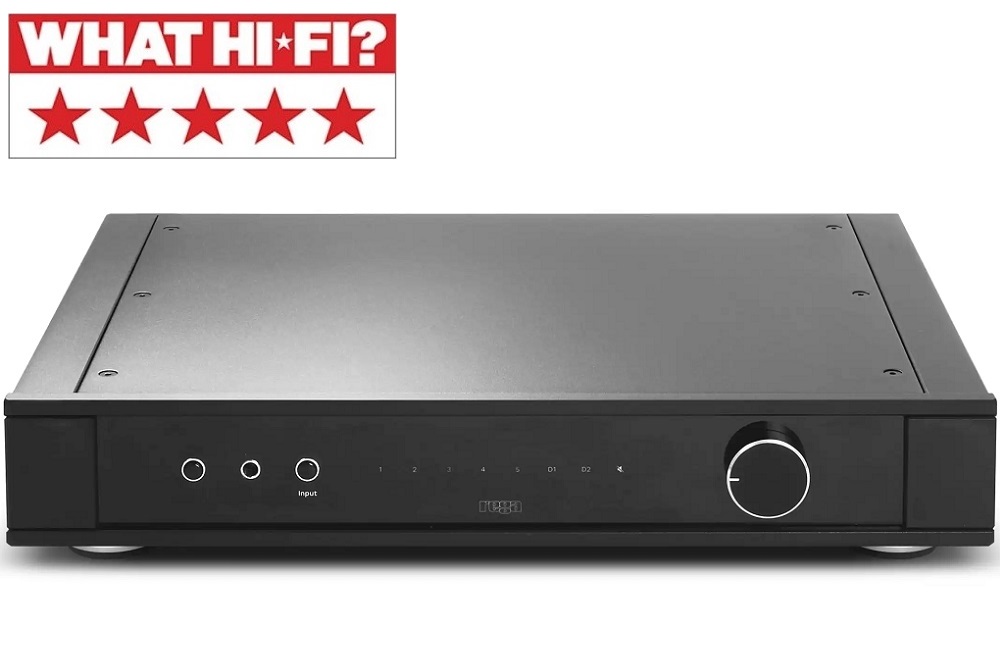

ELEX MK4

The Elex MK4 is a high performance stereo integrated amplifier designed to deliver the purest musical performance. Housed in a brand new case to match the rest of the Rega range, the MK4 builds on previous Rega designs using our multi-award winning class A/B power amplifier circuit which delivers an impressive 72W per channel into 8Ω loads (90W into 6Ω). New rear connectivity options are available with the Elex MK4 now including a Rega DAC circuit with two digital inputs and a high quality headphone output conveniently located on the front panel.

Bringing your music to life

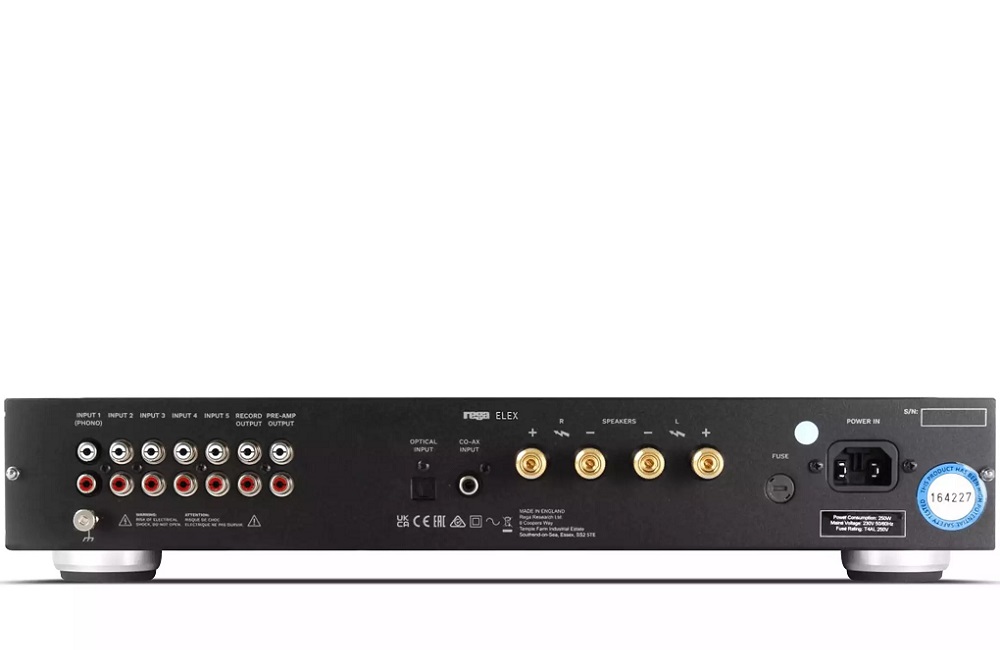

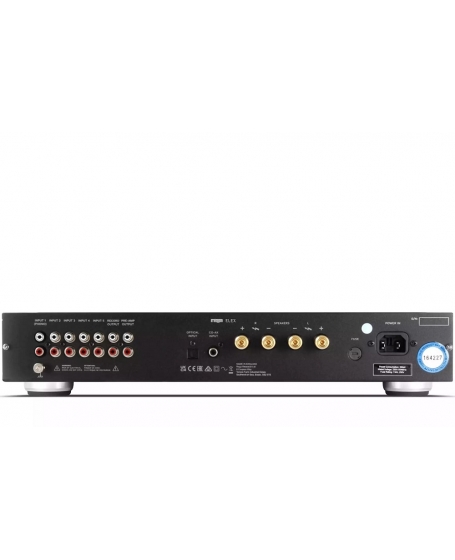

The Elex MK4 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wider range of connectivity options. In addition to the line level, digital inputs and a high quality moving magnet phono stage,  you will also find Pre-out and Record Out functionality alongside a headphone output. Special attention has been paid to the selection of key audio components. Discrete circuitry, high quality relays, polypropylene capacitors and Sanken output transistors are used throughout the design.

KEY FEATURES

• 72 W per channel into 8 Ω / 90 W into 6 Ω
• High quality moving magnet phono stage
• High performance Rega DAC circuit for digital inputs
• 2 x Digital inputs - 1 x optical and 1 x Co-Axial
• Headphone output
• 4 Line level inputs
• New custom design case
• Thermal Cut-Out

PRODUCT DETAILS

AMPLIFICATION CIRCUIT

Our engineers have re-engineered the entire ELEX circuit board to optimise performance. MK4 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 72W per channel into 8Ω loads. This power is provided by a quiet multi-stage linear supply whilst supply rails for digital and analogue sections are galvanically isolated.

DIGITAL CIRCUIT / DAC

The DAC is based closely on the hugely successful Rega DAC-R circuit. The galvanically/optically isolated digital inputs utilise a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega designed discrete line-driver circuit. Our engineers have worked exceptionally hard to ensure that the analogue side of the circuit is not affected in any way by the introduction of digital inputs.

MM PHONO STAGE

A high performance Rega designed integrated moving magnet (MM) phono stage is carefully built into the circuit. The RIAA equalization has been split into two stages to minimise interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.

HEADPHONE OUTPUT

We have taken great care to incorporate the headphone socket on the Elex MK4. This has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path ensuring no loss of performance when it is not in use.

CUSTOM CASE

The new custom case design and construction brings the Elex MK4 inline with the rest of the Rega range and provides improved heat dissipation by using the entire case as an ultra efficient heat sink.

PROTECTION

The Elex MK4 includes Thermal Cut-Out, short circuit protection and DC protection to prevent the risk of damage from excess heat, excessive currents or short circuits.

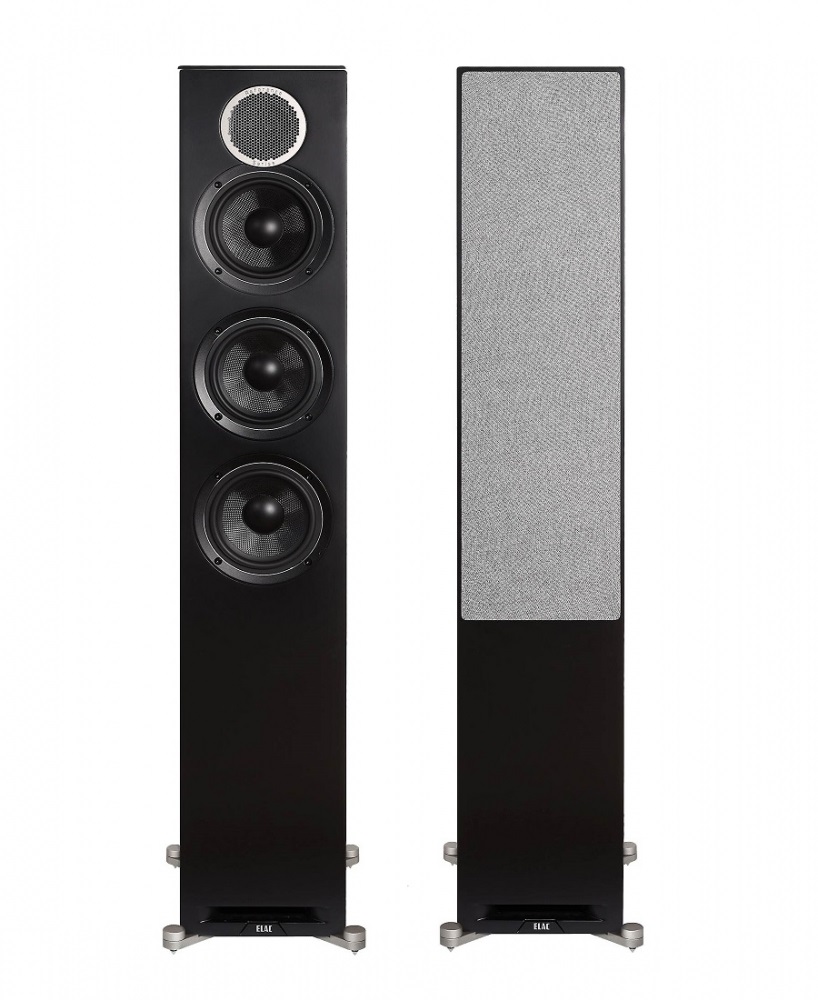

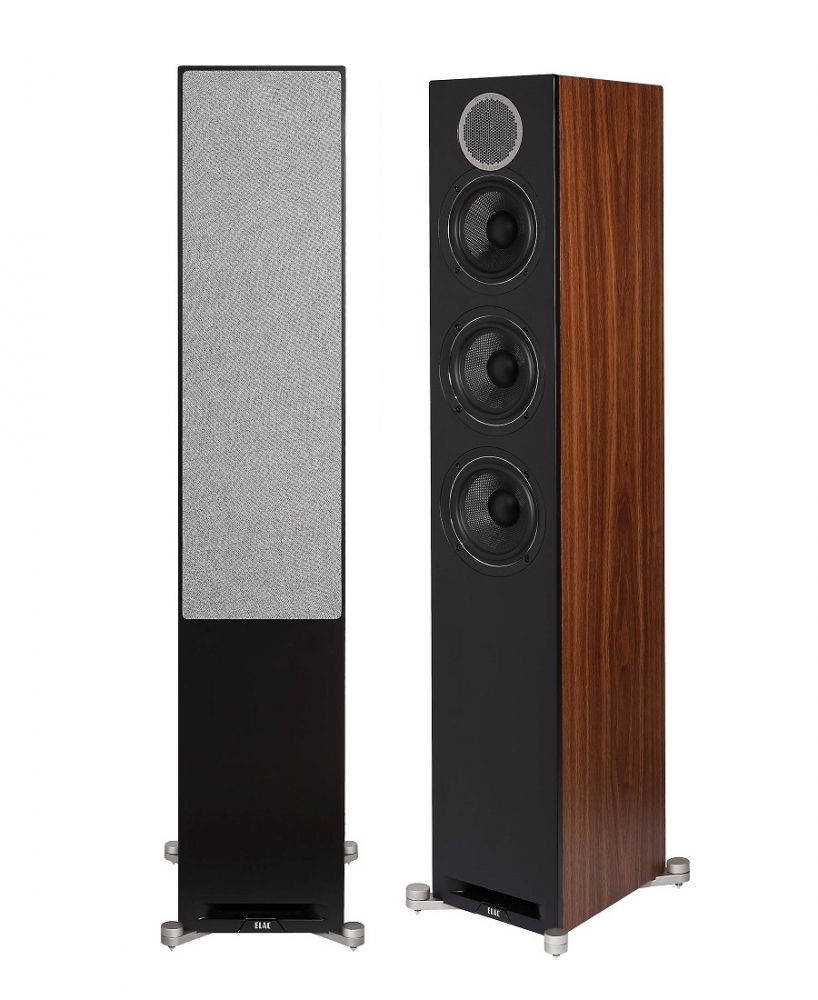

DFR52

Debut Reference Floorstanding Speaker

Elac Debut Reference DFR52 Speakers are the floorstanding speakers in the Debut reference range. This new line from Elac has both a classic yet contemporary feel, and enhances acoustic performance with newly optimised features, making it a great addition to any listening room.

Improved High Frequency Response

The DFR52 floorstanding loudspeaker features the latest waveguide development coupled with a more open grill design which boosts upper high frequency response.

Enhanced Bracing

The new cabinet on this speaker enjoys a full perimeter enhanced bracing that joins the side and top panels. This helps by significantly reducing cabinet vibrations and colouration for a higher quality audio performance.

Cast Chassis Woofer

This DFR52 floorstanders features a 6.5 Inch Aramid Fiber woofer. The woven aramid fibers provide exceptional damping properties, ensuring resonance is kept at a minimum. The woofers cast aluminium chassis improves stiffness and simultaneously strengthens the front baffle whilst minimising chassis resonance.

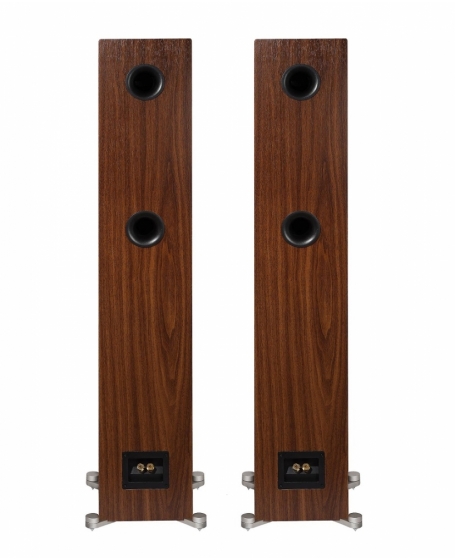

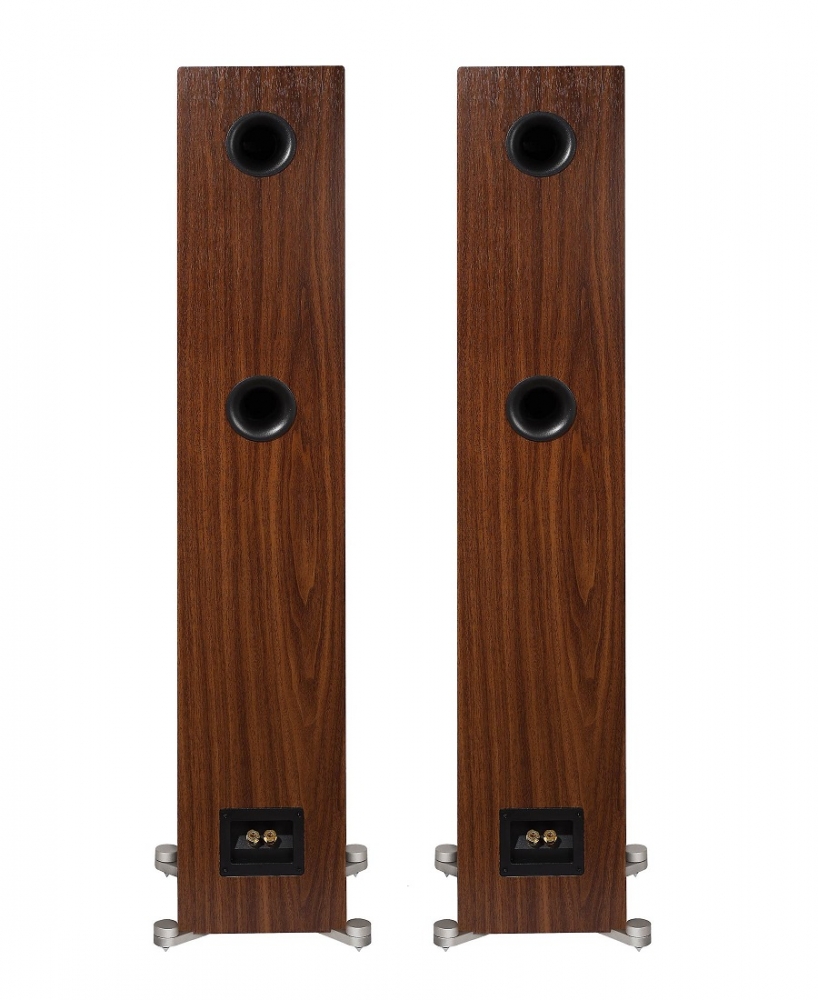

Dual Flared Slot Port

It has a 3-way bass reflex enclosure with dual front slotted vent for reduced noise and improved bass response. This speaker comes in real oak or walnut finished in black or white satin paint.

Rega Elex MK4
TECHNICAL SPECIFICATIONS
Power Amplifier Output (at rated 230/115 V Supply voltage)
72 W into 8 Ω
90 W into 6 Ω

Dimensions (W × H × D)
432 x 82 x 340 (D includes loudspeaker terminals)

Weight
11 Kg

Supported Sampling Rates
32, 44.1, 48, 88.2, 96, 176.4, 192kHz

Supported Bit Depths
16 to 24 bit

Power Consumption
250 W at 1dB below clip into 8Ω

Output Sensitivity (at rated inputs)
Record Output 164mV
Pre-amplifier Output 625mV

ELAC Debut Reference DFR52
Enclosure Type: 3-Way Bass Reflex
Frequency Response: 42Hz – 35000Hz
Nominal Impedance: 6 Ohms
Sensitivity: 87db @ 2.83v/1m
Crossover Frequency: 90Hz/2200Hz
Max Power Input: 140 Watts
Tweeter: 1″ Cloth Dome
Midrange: 5.25 Inch Aramid Fiber
Woofer: 2 x 5.25 Inch Aramid Fiber
Cabinet: CARB2 Rated MDF
Ports: 3 x Dual Flared
Binding Posts: 5-Way Metal
Cabinet Finishes: White Baffle, Oak Cabinet or Black Baffle, Walnut Cabinet
Accessories Included: Magnetic fabric grill
Weight: 36.81 lbs Each
Dimensions (WxHxD): 7.28” x 39.99 x 9.52″
