RS1

A two-way speaker system RS1 was created on the base of the model R1, being issued for more than six years. New monitors are almost the same externally - the same compact body with reverse placement of drivers, midbass RR125 with 125-mm paper diffuser and a phase-equalizing bullet in the center. The main difference is not evident - this is a recently developed tweeter of unique design. The negative impact of the back radiation was avoided due to the fact that the magnetic system freely blows and the silk dome at the same time actually works in free space. From rear the tweeter is closed by a cap in the form of a cone. It is noteworthy that the frequency range of RS1 is not specified in the documentation. Digits here will really show a little - RS1 need to be listened. Due to live, bright middle at the highest detailing their sound seems to be very musical. The space is built brilliant, the system seems to be absent, and imaginary sources exist as if on their' own. There no questions to tonal balance too, of course if close eyes on the lack of bass as such. And the dynamics is noticeably pressed that is not surprising for a paper midbass of such a caliber. However, the top is transparent and light, the clarity is just phenomenal. And certainly, these babies are out of competition by the ability to transfer the smallest tonal hints.

Rega io

The io has been designed to offer exceptional Rega performance at an affordable price point. It uses the same amplifier stage as the multi-award winning Brio now designed to run at 30 W per channel into 8 Ω. The io features two line level inputs, a high specification Rega moving magnet phono stage, and a dedicated high quality headphone output. The io will integrate seamlessly into any home audio system whilst remaining simple to use and easy to set up. A must for demonstration.

KEY FEATURES

• Integrated phono stage
• Headphone socket
• Mini remote control
• All new custom designed chasis

Because music matters

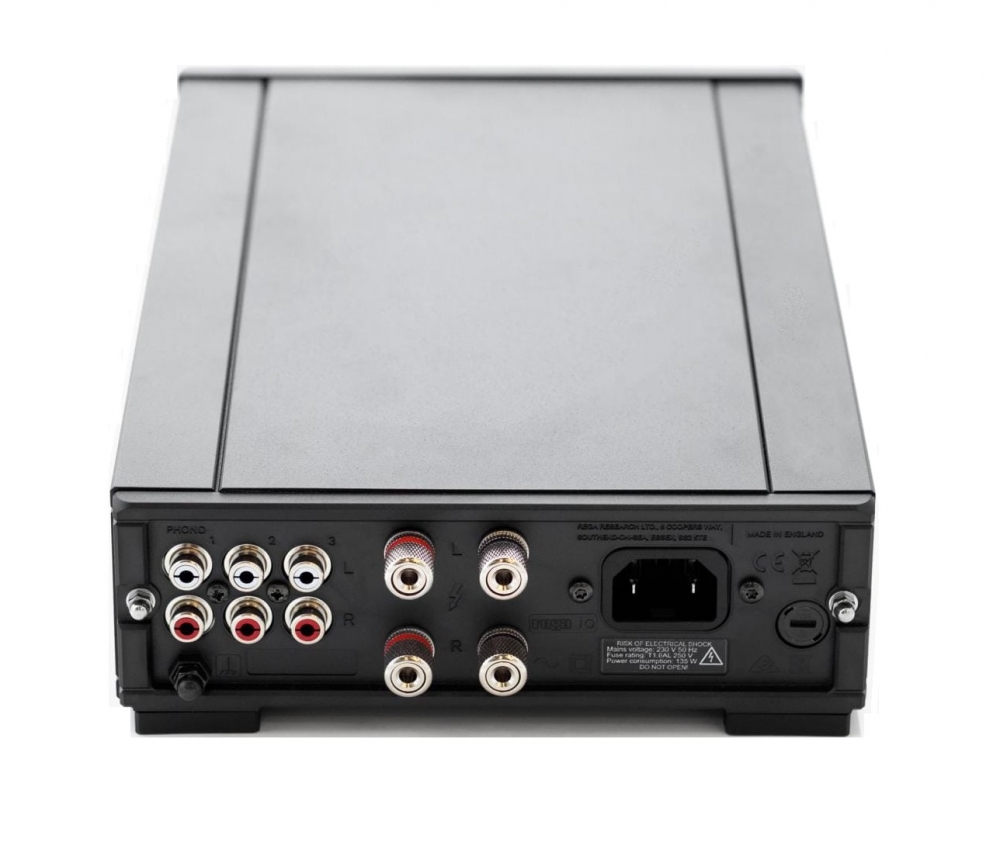

The io uses the same power amplifier and phono stage as its larger brother, the multi-award winning Brio. The io aims to deliver exceptional sound quality in a smaller and more cost effective package. The class A/B circuit shares its DNA with the rest of Rega’s amplifiers, and as usual, great care has been taken in component selection. Sanken output transistors and an Alps volume potentiometer and a linear power supply that enables an output of 30 watts per channel into 8 Ω. Two line level inputs and a high quality moving magnet phono input are available as sources. There is a headphone output provided on the front of the unit for powering standard hi-fi headphones; this is driven from the power amplifier stage of the unit through relays to avoid signal degradation when headphones are inserted or the product is muted. A new redesigned mini remote handset is included.

PLANAR 1

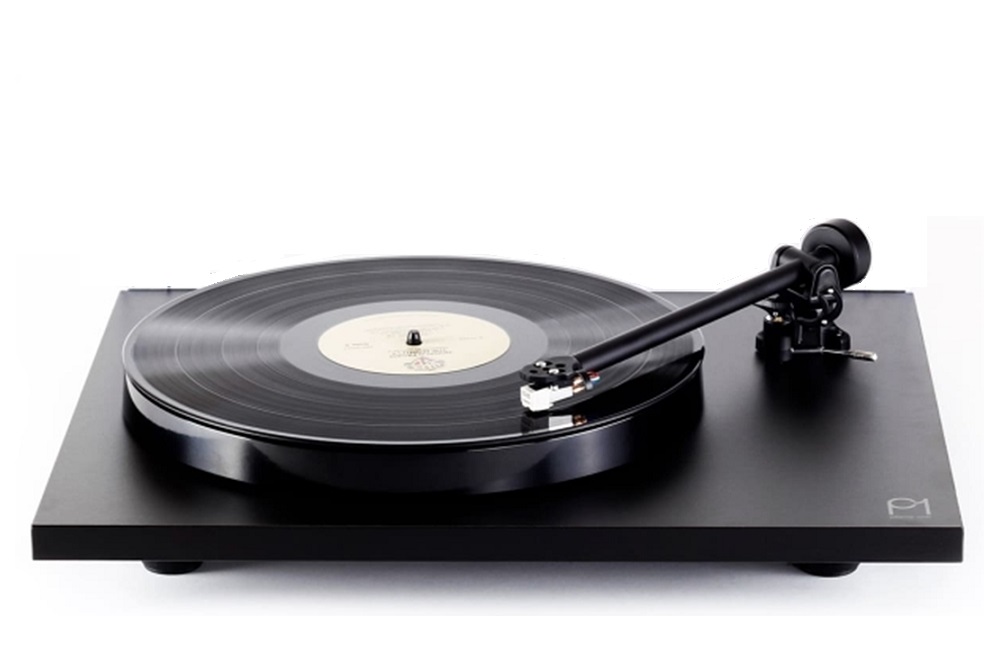

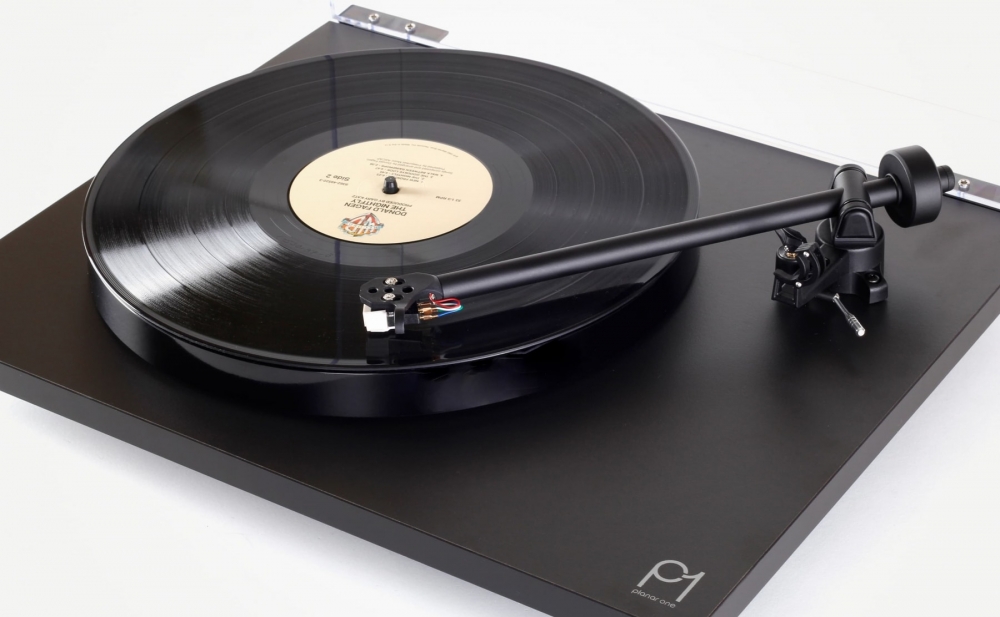

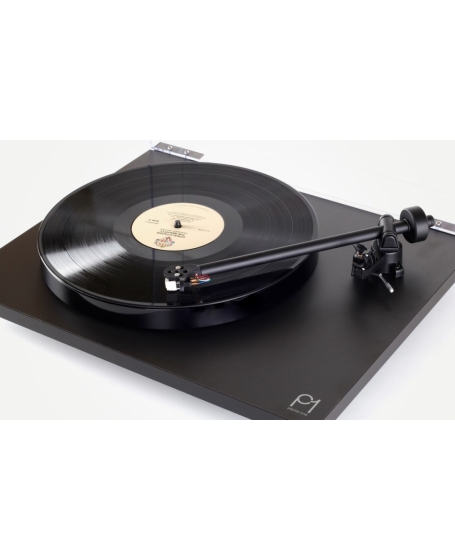

This multi-award winning ‘Plug and Play’ design utilises our handmade RB110 tonearm, with pre-set bias and a factory fitted Carbon cartridge. Set-up is possible in under 30 seconds and delivers incredible performance well beyond its price point.

Performance beyond price

A fresh new look for the multi-award winning Planar 1. We are delighted to introduce the new matt finish Planar 1. Every single aspect of the Planar 1 has been meticulously designed to improve performance. The Planar 1 uses a bespoke 24 V, low noise, synchronous motor to reduce vibration combined with our hand made RB110 tonearm fitted with our unique Rega designed ultra-low friction bearings. We have added our latest drive belt technology the EBLT belt which delivers greater accuracy and improved speed performance. If you are looking to get back into vinyl and want serious performance that will last you a lifetime, then look no further.

The new special edition Walnut effect finish will be introduced across August & September 2022 and is constructed from the same high rigidity premium laminate used on the standard matt  P1. This is an attractive, high quality, realistic finish which is supplied as standard with the premium smoked dustcover to set off the design.

KEY FEATURES

• New Walnut effect finish added for 2022
• EBLT Advanced drive belt fitted as standard
• New matt finish for 2021
• RB110 tonearm with ultra-low friction play bearings
• Factory fitted Carbon moving magnet cartridge
• Phenolic resin, flywheel effect platter
• High quality, 24 V low noise synchronous motor

TONEARM

Brand new RB110 tonearm built with the new Rega designed, bespoke, ultra-low friction bearings (patent pending). New bias assembly and integrated arm clip. Includes automatic bias adjustment negating the need for the user to set bias, making this the most ‘plug & play’ turntable we have ever manufactured. Ergonomically, designed headshell for improved usability and appearance.

CARTRIDGE

Rega Carbon cartridge supplied fitted as standard.

24 V SYNCHRONOUS MOTOR

The first entry-level Rega turntable to use a 24 V, synchronous AC motor with a new motor PCB and aluminium pulley offering low noise and better speed stability.

PLINTH

Brand new matt finish and Walnut effect option with vastly improved appearance and ergonomically positioned on/off switch located on the underside. Three stunning plinth finishes available, matt black, matt white and Walnut effect.

CENTRAL BEARING HOUSING

Performance brass main bearing, offering improved fit and removing stress on the bearing itself whilst minimising the transfer of potential energy (patent pending).

PLATTER

23 mm, higher mass, phenolic platter with improved flywheel effect for improved speed stability.

ISOLATION

Our latest design foot assembly increases stability and reduce vibration transfer.

MOTOR COVER TRAY

Motor cover tray with integrated cooling.

BALANCE WEIGHT

111 g ‘plug & play’ balance weight.

RS1
System type    2-way
Enclosure type    Bass-reflex
Frequency response ± 3dB    50 - 23000 Hz
Nominal impedance    8 Ohm
Amplifier Requirements    30 - 80 W
Sensitivity (2.83V/1m)    90 dB
Tweeter    20 mm (3/4 in.)
Woofer    125 mm (5 in.)
Dimensions (H x W x D)    320 x 150 x 236 mm / 12.6 x 5.91 x 9.29 in.
Weight    3.5 kg / 7.7 lbs.

Rega Planar 1
Tonearm
Hand assembled RB110 tonearm
Cartridge
Factory fitted Carbon moving magnet cartridge
Motor
24 V low noise motor
Platter
Phenolic resin platter
Dimensions (lid closed) (W x H x D)
447 x 117 x 360 mm
Weight
4.2 kg

Rega io
Technical Specification
Power outputs at 230/115 V supply voltage
30 W RMS both channels driven into the rated load of 8 Ω

Input 1 (Phono) input sensitivity 2.1 mV @ 47 kΩ in parallel with 220 pF
Maximum input 1 (Phono) input level 100 mV
Input 2-3 (Line) input sensitivity 210 mV @ 47 kΩ
Maximum input 2-3 (Line) input level 10.25 V

Headphone output
No load 8 V
32 Ω 1.6 V
54 Ω 2.4 V
300 Ω 5.7 V
Source impedance: 109 Ω

Power consumption
135 W @ 230 V / 220 V / 115 V / 100 V into the rated load of 8 Ω

Frequency response
Phono: 15 Hz to 40 kHz (-3 dB points) / 27 Hz to 20.5 kHz (-1 dB points)

RIAA accuracy: (100Hz to 10 kHz) ±0.4 dB typically better than ±0.3 dB

Line: 12 Hz (-1 dB points) to 43 kHz (-3 dB points)

Remote control
Batteries included –2 x AAA Alkaline.

Fuse ratings
T1.6 AL 250 V: 230 V / 50Hz and 220 V / 60 Hz
T3.15 AL 250 V: 115 V / 60 Hz and 100 V / 50/60 Hz

Weight
2.9Kg

Dimensions (W x D x H) in mm
180 x 290 x 68
