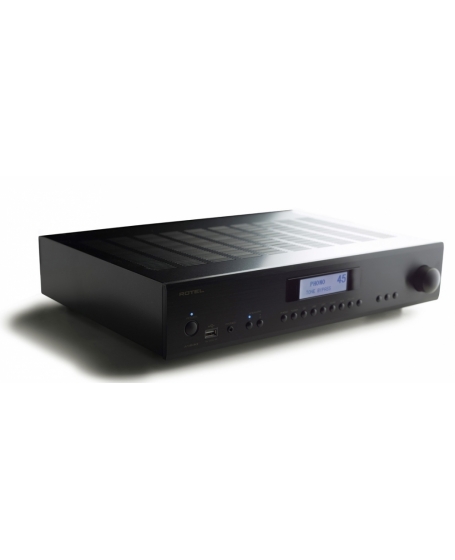

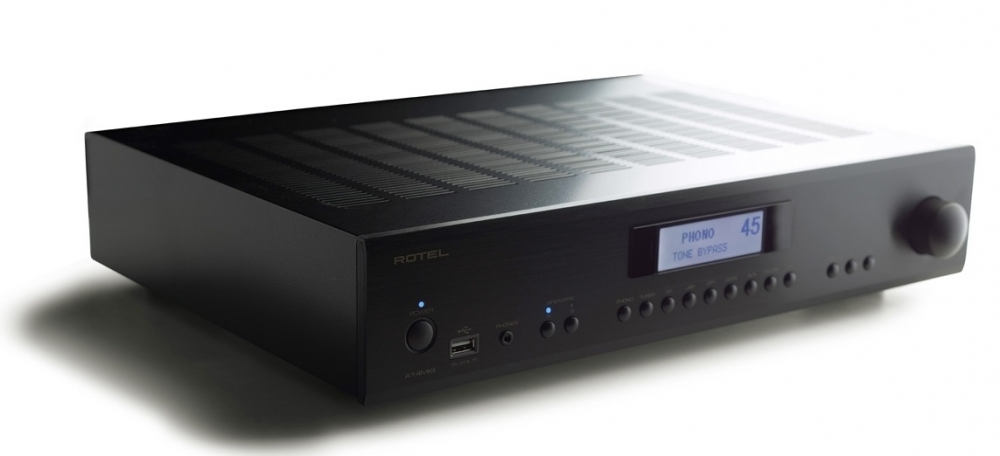

A14MKII

The A14 MKII Integrated Amplifier delivers 80 Watts per channel of Class AB amplification from your favorite sources including analog, digital, PC-USB with MQA, wireless aptX^TM and AAC Bluetooth and Moving Magnet Phono stage. Critically tuned power supply, DAC and amplifier circuits ensure the A14MKII will deliver countless hours of entertainment.

Product Description

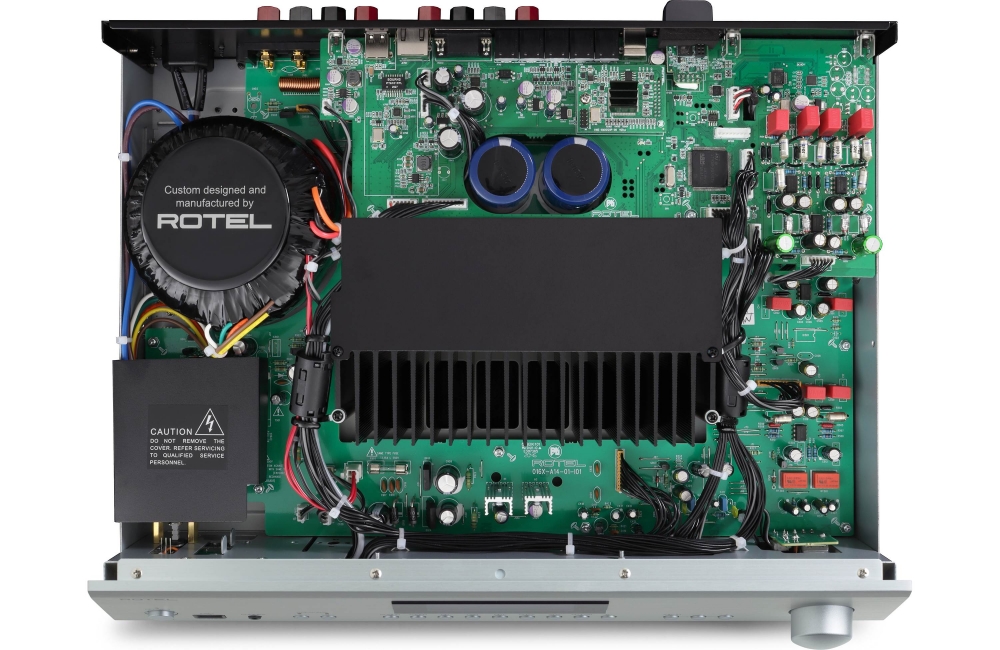

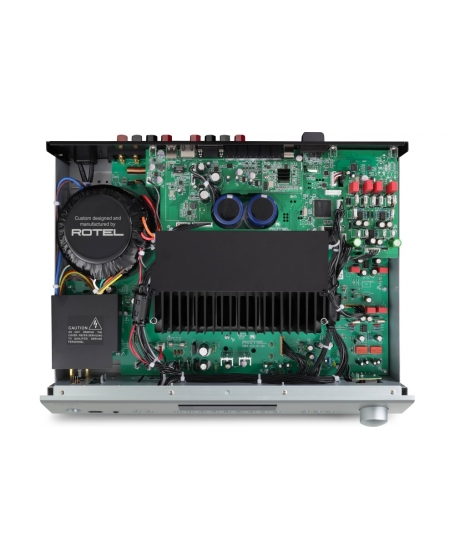

The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.

The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.

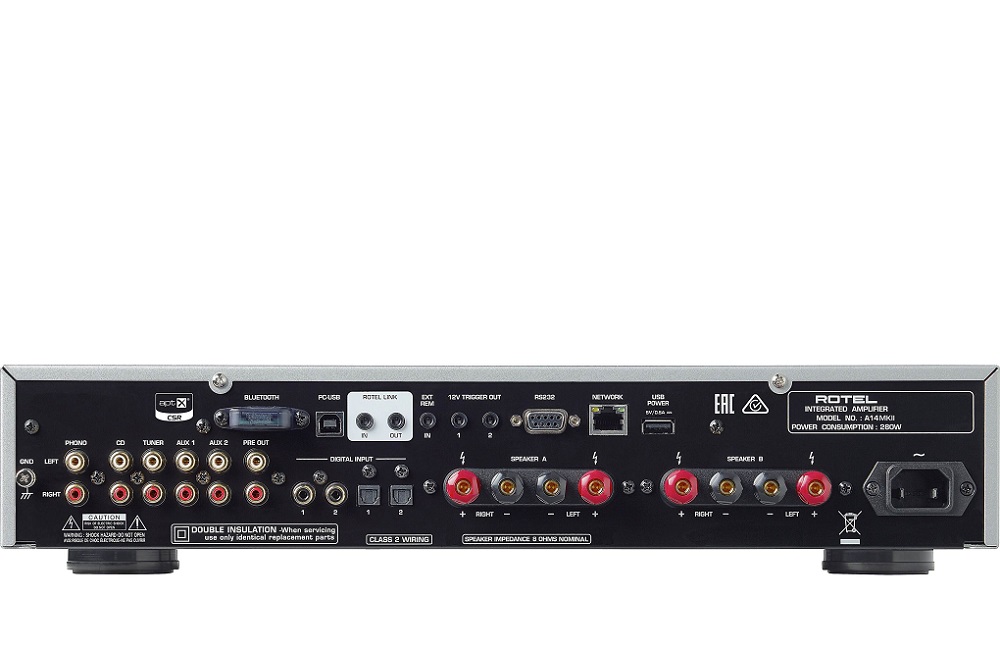

The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available utilizing Ethernet, RS232, 12V-Trigger and remote IR connections.

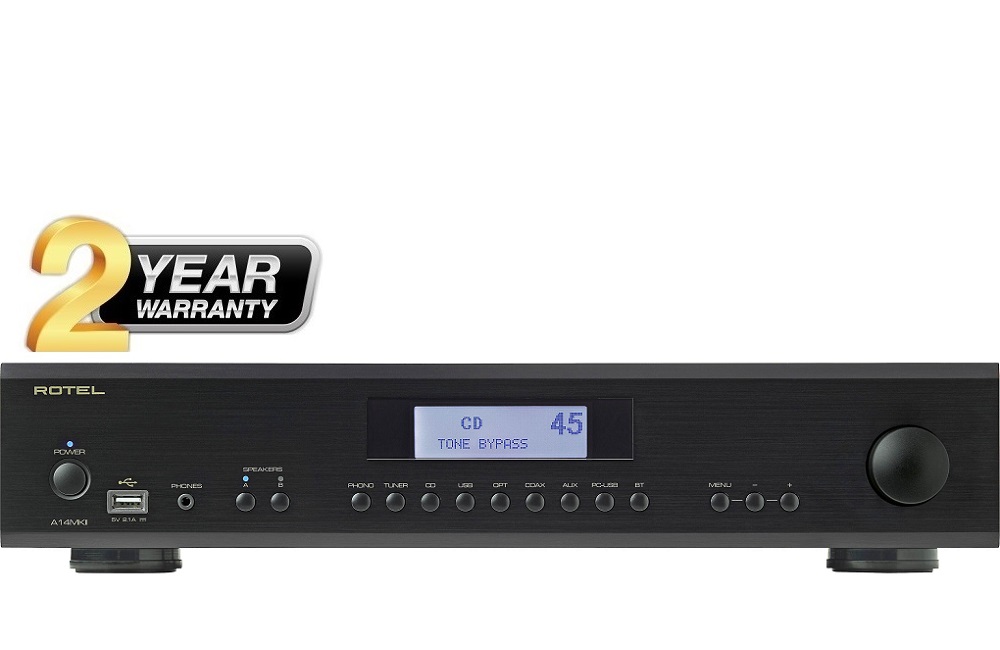

Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.

The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.

MAXIMUM POWER OUTPUT
150W/Ch (4Ω)

CONTINUOUS POWER OUTPUT
80W/Ch (8Ω)

TOTAL HARMONIC DISTORTION
(THD)
<0.018%

FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB

Digital Inputs:
10Hz - 90kHz, ±2.0dB, Max

Phono Input:
20Hz - 15kHz, ±0.5dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB

DIMENSIONS (W × H × D)
430 × 93 × 345mm
17" × 3.6" × 13.5"

FRONT PANEL HEIGHT
80mm (3.15")

POWER REQUIREMENTS
230 V, 50 Hz

POWER CONSUMPTION
280W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
8.94kg (19.71lbs.)

BTU RATING (4Ω, 1/8th power)
632 BTU/h
