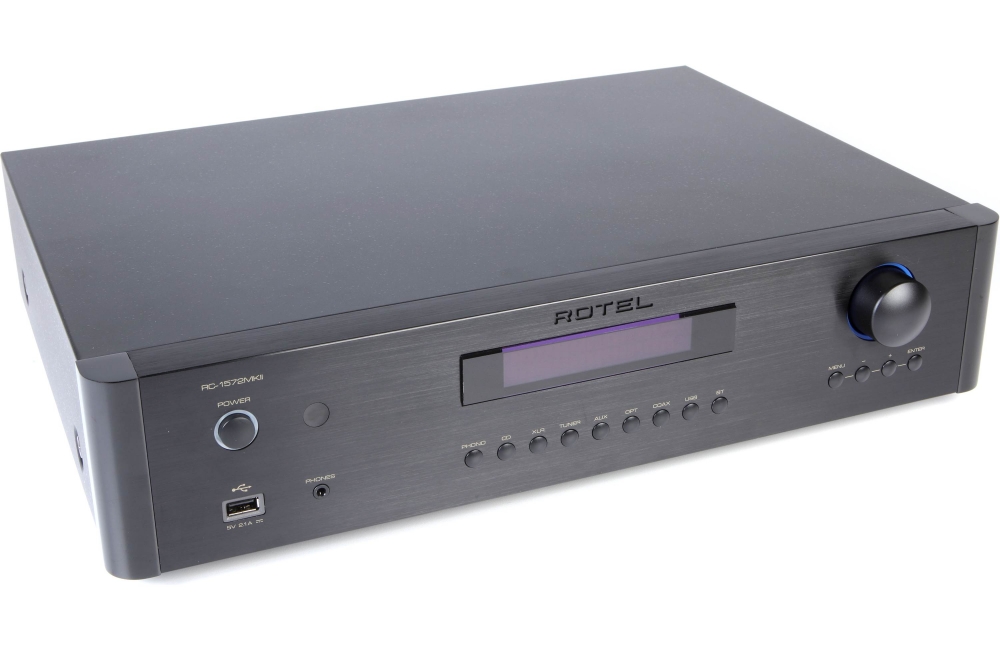

RC-1572MKII

Affordable high-end begins with Rotel’s RC-1572MKII Preamplifier processing your favorite analog and digital sources in stunning clarity with a natural and enveloping sound stage.

Product Description

Affordable high-end begins with Rotel’s RC-1572MKII Preamplifier including multiple acoustic upgrades and refinements processing your favorite analog and digital sources to an even higher level of performance in stunning clarity with a natural, enveloping sound stage.

As an essential component in a Hi-Fi audio stack the RC-1572MKII’s precision engineering begins with Rotel’s ultra-low noise power supply including a large, in-house manufactured toroidal transformer. The transformer design reduces stray radiated emissions and feeds a bank of slit-foil, low ESR capacitors delivering stable current to all sensitive circuits reducing noise and distortion with an ultra-quiet noise floor.

A premium Texas Instruments 32-bit Digital to Analog converter (DAC) renders the digital sources supported by custom tuned, proprietary external output filters ensuring the audio is effortlessly presented with exceptional dynamic detail and musical expression.

Analog, Digital, XLR, aptX^TM and AAC Wireless Bluetooth and Moving Magnet Phono Stage inputs ensure connection to your favorite music sources. Digital media files are supported via a 32-bit/384kHz PC-USB connection supporting MQA and is fully certified Roon Tested for graceful access to the near limitless catalog of online music.

The RC-1572MKII is easy to operate using the included remote control and front panel display. Automatic power controls, signal sensing, fixed volume settings and tone adjustments optimize customization settings.

RCA, XLR and subwoofer outputs are provided for installation flexibility. Ethernet and RS232 ensure simple integration with control systems and software updates.

Bring your CD’s, Digital Files and Vinyl allowing the RC-1572MKII to bridge generations of music and music lovers.

TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.004%
FREQUENCY RESPONSE
Line Level Inputs :
10Hz - 100kHz (+0dB, -0.2dB)
Digital Inputs:
20Hz - 20kHz (0±0.5dB, Max)
Phono Input:
20Hz - 20kHz (+0.3dB, -0.2dB)
S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 118dB
Digital Inputs: 100dB
Phono Input: 80dB
DIMENSIONS (W × H × D)
431 × 99 × 338mm 17" × 3.9" × 13.5"
FRONT PANEL HEIGHT
2U / 88.1mm (3.5")
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
35W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
8.4kg (18.5lbs.)
BTU RATING
65 BTU/h
