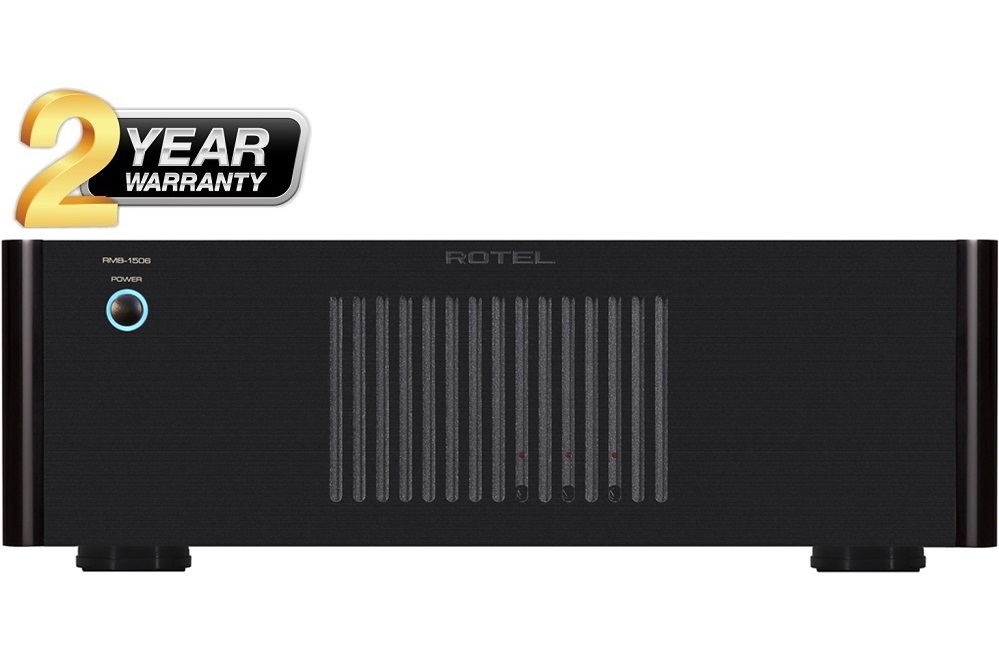

Rotel RMB-1506

DISTRIBUTION AMPLIFIER

Featuring 6 x 50 watts per channel, the RMB-1506 is a rugged, sophisticated, multichannel amplifier for those with a limited number of zones to fill with music.

This amplifier is perfect for less elaborate multizone audio systems and can be mated with any of our surround receivers or our preamp/processor to add music throughout three additional living areas or “zones” of your home. You can also add another RMB-1506 for larger multizone applications that don’t need the power output of the RMB-1512. As with all Rotel multichannel amplifiers it includes all of the most wanted custom installation features.

*Note – all Rotel 15 series components may be rack mounted and remotely controlled via RS-232, IR, or 12 volt (depending on model) for complete stealth operation.

CONTINUOUS POWER OUTPUT
50W/Ch (All channels driven, 8Ω)
80W/Ch (All channels driven, 4Ω)

TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.03%

FREQUENCY RESPONSE
10Hz - 100kHz ±1dB

S/N RATIO (IHF "A" Weighted)
115dB

GAIN
26dB

DIMENSIONS (W × H × D)
431 × 144 × 424mm
17" × 5.7" × 16.7"

FRONT PANEL HEIGHT
3U / 132.6mm (5.25")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
450W

STANDBY POWER CONSUMPTION
2.6W

NET WEIGHT
15.3kg (34lbs.)

BTU RATING (4Ω, 1/8th power)
1680 BTU/h

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
>200

SPEAKER IMPEDANCE
4Ω minimum

INPUT SENSITIVITY
1V

INPUT IMPEDANCE
20kΩ
