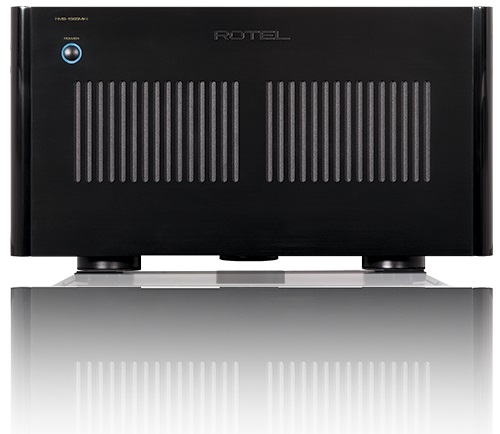

RMB-1585MKII

MULTICHANNEL AMPLIFIER

Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high power, audiophile performance amplifiers for multi-channel systems.

The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.

Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high powered, perfectionist amplifiers for multi-channel systems.

Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages achieving ultra-low distortion, high gain amplification and signal isolation rendering multi-channel audio with ultimate precision and exacting clarity.

The Class AB RMB-1585MKII is built around two massive in-house manufactured high-current toroidal transformers designed to supply stable current to an array of 8 high-efficiency energy storage capacitors. This power supply architecture delivers rich, deep bass energy with absolute control of low frequencies even when driving the most demanding loudspeakers.

To optimize cooling, the RMB-1585MKII is equipped with 4 thermostat-controlled, variable-speed ultralow-noise fans.

The RMB-1585MKII features a rear panel switch to select normal 5-channel mode, or Bi-Amp mode. In MULTI-CHANNEL POWER AMPLIFIER RMB-1585MKII Bi-Amp mode, Channels 1+2 and Channels 4+5 are wired to receive the same input signal, allowing for simple bi-amplification.

This unique configuration allows the use of a separate amplifier channel for the Left and Right channel High Frequency (HF) and Low Frequency (LF) drivers, resulting in improved dynamics, and enhanced resolution from compatible loudspeakers.

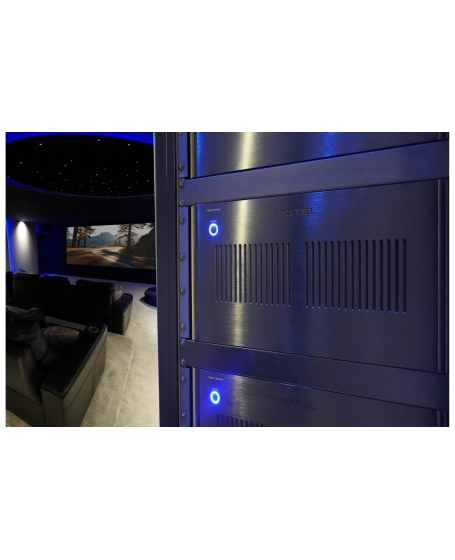

The RMB-1585MKII is purpose built for Home Theaters and custom installation. Convenient auto-switching XLR Balanced and RCA inputs ensure compatibility with any AV Processor or Home Theater receiver preamp output, and a 12 V trigger input and output provides simplified power control. Detachable rack mount hardware is available for mounting in standard 19” equipment racks.(1)

The RMB-1585MKII is available in both elegant black and stylish silver colors.

POWER OUTPUT
210W/Ch (5 channels driven, 8Ω)
340W/Ch (5 channels driven, 4Ω)
440W/Ch (2 channels driven, 4Ω)

TOTAL HARMONIC DISTORTION (THD)
<0.03%

FREQUENCY RESPONSE
10Hz - 100kHz, +0.1, -0.3dB

SIGNAL TO NOISE RATIO (A Weighting)
120dB

GAIN
26.9dB

DIMENSIONS (W × H × D)
431 × 237 × 456mm
17" × 9.4" × 18"

FRONT PANEL HEIGHT
5U / 221mm (8.75")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
1200W

NET WEIGHT
37.4kg (82lbs.)

BTU RATING (4Ω, 1/8th power)
3317 BTU/h

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR (1kHz, 8Ω)
223

CROSSTALK/ SEPARATION
> 55 db

INPUT SENSITIVITY
Unbalanced: 1.89V
Balanced: 4.7V

INPUT IMPEDANCE
Unbalanced: 12kΩ
Balanced: 50kΩ
