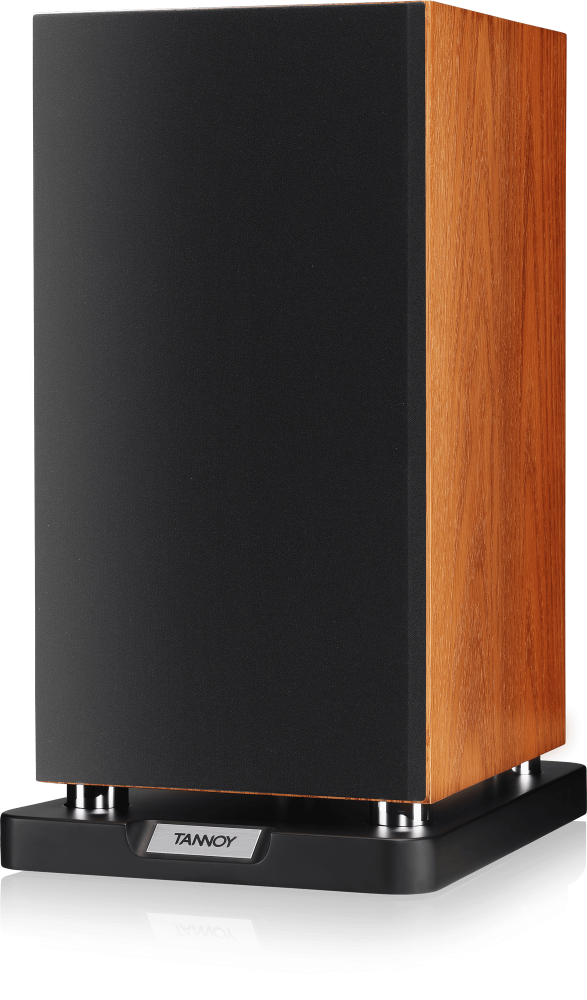

Tannoy Revolution XT 6-MO Bookshelf Speaker

REVOLUTION XT 6-MO

2 Way Stand-Mount 6" Dual Concentric HiFi Loudspeaker (Medium Oak)

Product Features

REVOLUTION XT 6-MO

Combining a 150 mm (6 inch) multi-fibre cone with a 25 mm Linear PEI dome and benefitting from the Torus-Ogive waveguide the REVOLUTION XT 6 driver is coupled with a crossover using low loss laminated core inductors and audiophile components throughout.

The 10.8 litre cabinet has REVOLUTION XT’s signature trapezoid shape and is uniquely fitted with a miniature plinth in keeping with the larger floorstanding models. The plinth serves to add low-down mass to the design, affording highly stable placement on stands or shelves for the most accurate acoustic reproduction. Heavily constructed and extensively braced, the cabinet has exceptionally low colouration further enhancing its ability to communicate nuances and emotion of music. The REVOLUTION XT 6 is an incredibly accurate mini-monitor for those who appreciate music presented with utmost detail and texture.

Performance
Recommended Amplifier Power
(Watts RMS)
25 - 120

Continuous Power Handling
(Watts Peak RMS)
60

Peak Power Handling (Watts)
240

Sensitivity (2.83 Volts @ 1m)
89 dB

Nominal Impedance (Ohms)
8

Frequency Response (-6dB)
46 Hz - 32 kHz

Drive Units
Dual Concentric™ High Frequency
25 mm (1”) Linear PEI dome with Torus Ogive WaveGuide and Omnimagnet technology

Dual Concentric™ Low Frequency
150 mm (6”) multi-fibre paper 44 mm (1.75”) voice coil

Bass Driver
-

Crossover
Crossover Frequency
1.8 kHz

Crossover Type
Passive low loss 2nd order low pass, 1st order high pass

Construction
Enclosure Type
Downwards ported reflex

Volume
10.8 l (0.38 cu. ft.)

Dimensions H x W x D
(incl. plinth)
400.5 x 221 x 302 mm
(15.8 x 8.7 x 11.9”)

Net Weight
7.5 kg (16.4 lbs)

Finish
Medium Oak
