Tannoy Turnberry GR

Product Description

Tannoy Turnberry GR floorstanding speakers, one of the upgraded Prestige Gold Reference models, are a beautiful and timeless classic design incorporating cutting-edge technology.

Realistic Performance

Turnberry GR features a 10” Dual Concentric drive unit and the finest crossover components to deliver a thrillingly dynamic and realistic performance with consummate ease. The cabinets stand just under a metre high and are elegantly finished in walnut.

Hand Built Perfection

All components and cabinets are still hand assembled in fashion to ensure that attention to detail and unique styling go hand in hand in maintaining the exclusive appeal of this highly respected and sought after loudspeaker.

Traditional Design

The design comfortably complements any decor from ancient castle through to the cool, casual and contemporary. Tannoy Prestige loudspeakers incorporate the most current, no compromise, acoustic technologies and time-proven cabinet making skills ensuring these are probably the very best sounding loudspeakers you will find anywhere.

5 Point Terminal

A 5-point terminal panel (bi-wire and ground point) gold plated terminals has been incorporated on the Turnberry GR. With the driver chassis grounded via the 5th terminal, and by using appropriate speaker cable, this proven technology, developed on earlier Prestige models, minimises the effects of RF interference resulting in a more transparent midrange.

Hard-Wired Crossover

Hard-wired crossovers are used throughout the Turnberry GR and the routing of each cable has been painstakingly considered to ensure there is no degradation in sound quality. Similarly, the components have been carefully arranged to avoid any coupling effects.

Vocal Clarity

In particular, incredible transparency in the mid band has been achieved providing an enhanced true-to-life vocal clarity. Completely redesigned crossovers, incorporating the most up-to-date high-quality components, have taken these models to a new level of acoustic excellence.

ICW Caps

ICW Clarity Caps have been included for high frequency (HF) section of the crossovers, while high quality metalised film capacitors are used in LF sections. The LF crossover also makes use of very low loss laminated iron core inductors.

Internal Connections

Internal connections from input terminals to crossover, internal crossover wiring and crossover to Dual Concentric drive unit are made with the exceptional VDH MC CS18 halogen free silver-plated cable.

Tech Specs

Performance
Compatible Amp: 30-180 Watts
Cont power handling: 110W RMS
Freq response: 34Hz-25kHz (-6dB)
Sensitivity: 93dB (2.83V @1m)
Nominal impedance: 8 Ohms

Drive Units
Type: Dual Concentric
HF: 33mm (1.3") aluminium alloy dome
HF Waveguide: Tulip WaveGuide
LF: 250mm (10") treated paper pulp cone
Surround: HE twin roll fabric surround
Voice Coil: 52mm (2") edge wound
Dispersion: 90 degrees conical

Crossover
Frequency: 1.3kHz
Type: Bi-wired, hard wired passive
LF: low loss compensated 2nd order
HF: 1st order high frequency

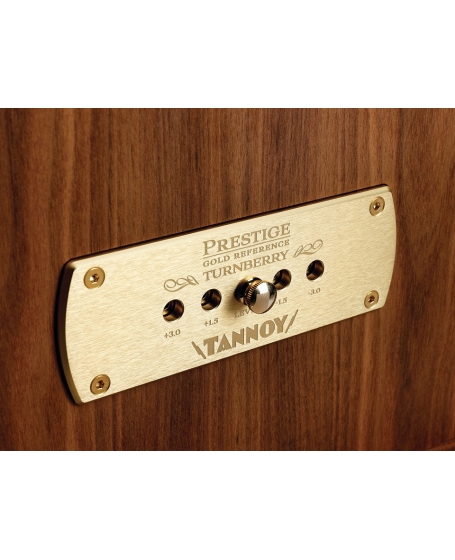

Shelving Adj: +/-3dB (1.3kHz-25kHz)

Construction
Enclosure: Distributed port
Finish: Walnut veneer
Detail: Solid walnut edging and trim
Volume: 100L (3.5 cubic ft)
Dimensions (HWD): 950 x 456 x 336mm
Weight: 30kg (66 lbs)
