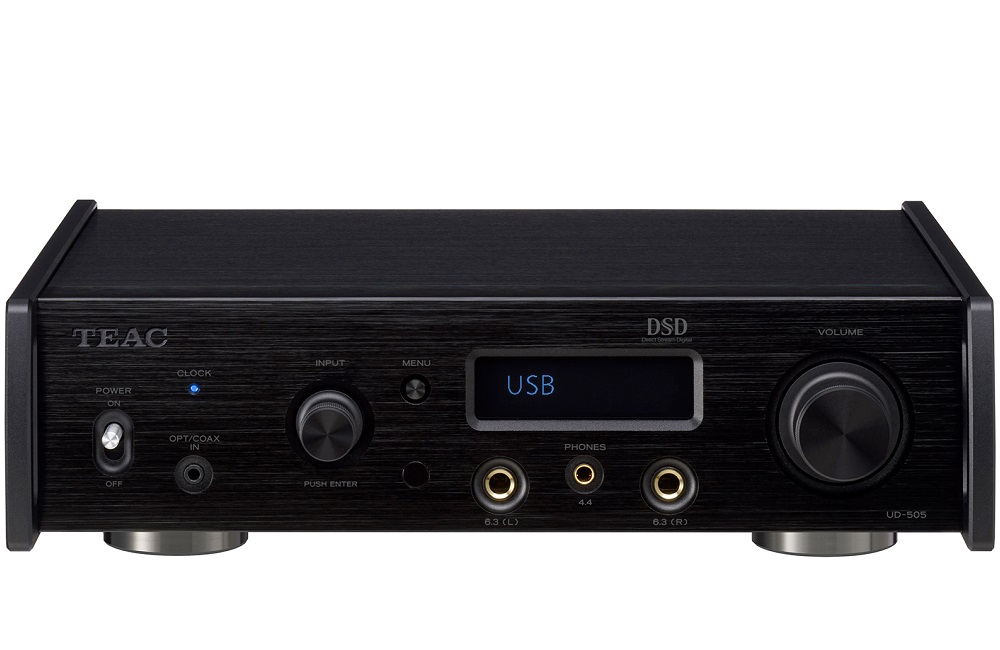

UD-505-X

Condensed high-end audio design philosophy and audio design know-hows learned from over 6 decades of our experience in a small cabinet as small as an A4-sized footprint.

The UD-505-X is a class-leading dual monaural USB DAC with an integrated fully-balanced headphone amplifier, that fuses high-end audio design concepts and TEAC’s decades of audio design experience, in an A4-sized footprint. The dual mono structure processes stereo signals with higher purity, and the D/A converter section uses one ESS Technology ES9038 Q2M in each of the left and right channels.

This model achieves a high signal-to-noise ratio by using each DAC in mono mode. Moreover, we upgraded it with high specifications that enable native playback of 22.5MHz DSD and 768kHz/32bit PCM formats. In the analog processing section, which can be considered the key to audio quality, we include four TEAC-HCLD2 circuits. These are improved versions of our previous TEAC-HCLD. For headphone output using the newly-adopted diamond buffer circuit, in addition to two standard 6.3mm connectors, one 4.4mm 5-pole headphone connector
is available, enabling balanced connection and active ground connection with a single plug.

The Bluetooth^® receiver supporting LDAC^™ and Qualcomm^® aptX HD^™ allows you to enjoy high-quality wireless audio streaming from your smartphone on this reference USB DAC.
