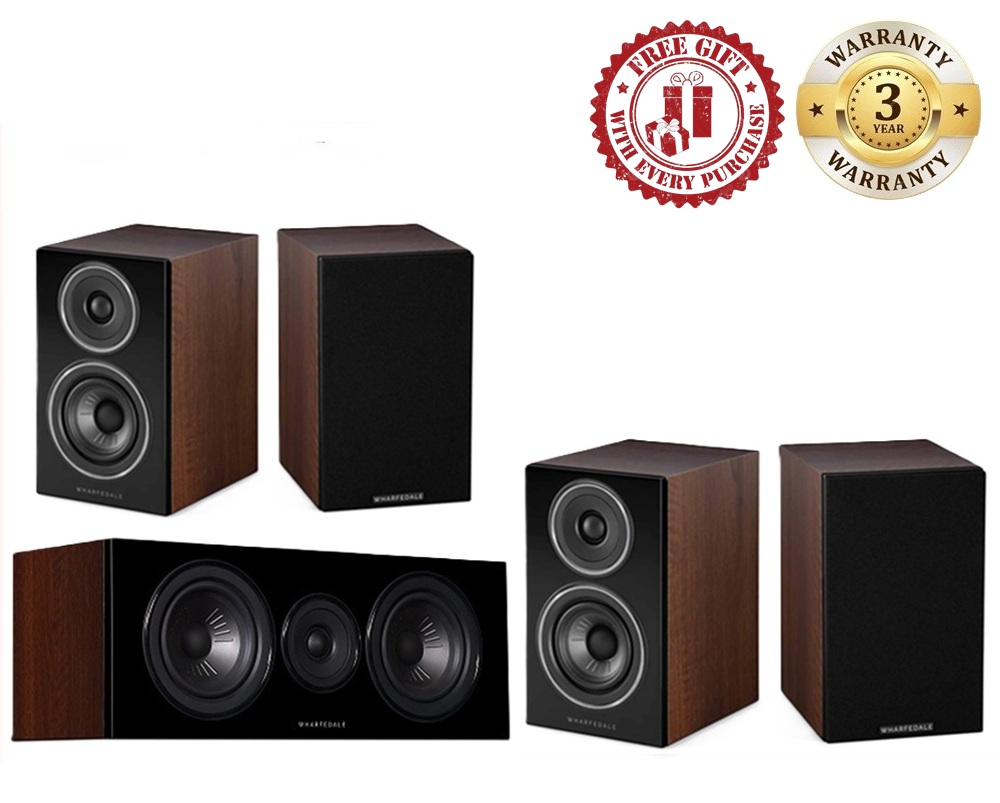

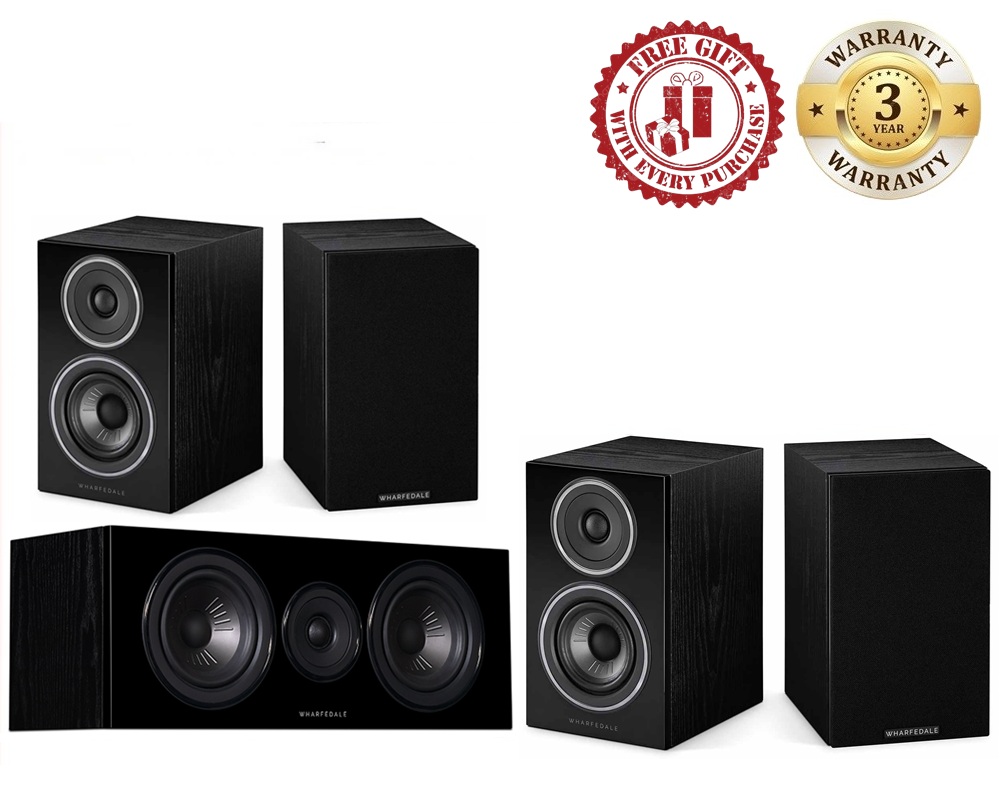

Wharfedale Diamond 12.1 + 12C + 12.0 Speaker Package

Wharfedale Diamond 12.1 + 12C + 12.0 Speaker Package

Diamond 12.1

The true all-rounder, the Wharfedale DIAMOND 12.1 is a traditional standmount (or bookshelf) speaker that embodies the history and performance values of the Wharfedale DIAMOND series.

The perfect ‘affordable’ hi-fi speaker, the DIAMOND 12.1 offers the best of both worlds – compact size with power and detail.

Perfect for 2-channel hi-fi systems, thanks to its intricate performance but also compact and capable for immersive home theatre, the DIAMOND 12.1 is designed and certified to perform, regardless of room size and application.

The DIAMOND 12.1 features a high-performance 130mm (5”) Klarity^TM driver for exceptional timing and refined bass. The superb 25mm (1”) woven polyester dome tweeter delivers open and smoothly extended high frequencies.

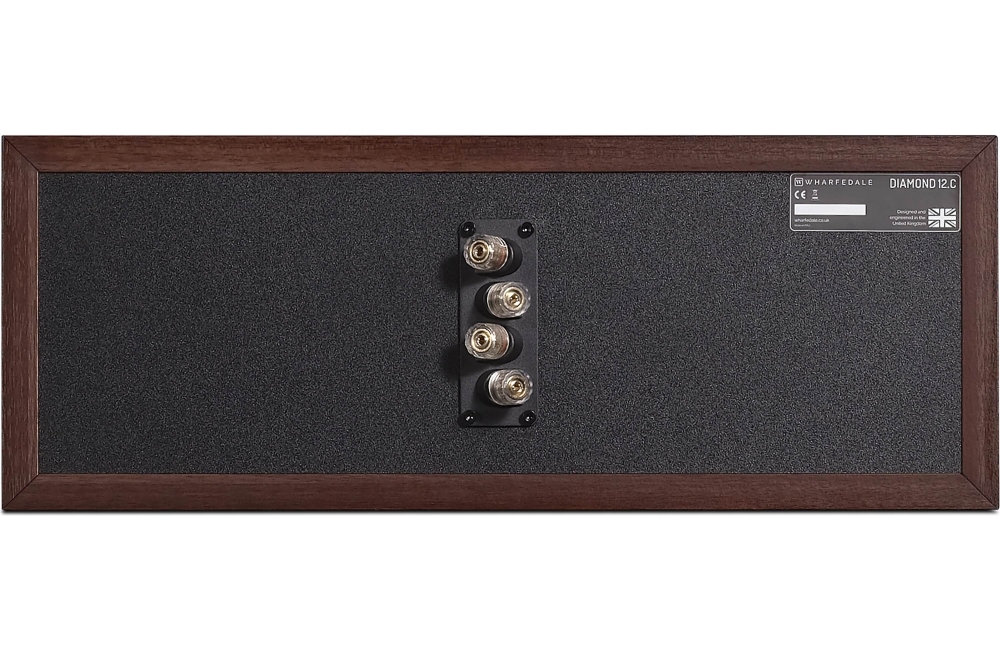

Diamond 12.c

The DIAMOND 12.C brings cinema-quality vocal tangibility and depth to the Wharfedale DIAMOND 12 series home theatre system.

Designed as the centrepiece and perfect complement for the DIAMOND 12 series standmount (bookshelf) and floorstander models, the DIAMOND 12.C is compact, accurate and powerful.

Using dual 130mm (5”) Klarity^TM drivers for accurate, refined mid-range and bass frequencies, while the 25mm (1”) dome tweeter delivers open and smoothly extended high frequencies opening up detail and depth for movies, sports and music.

Diamond 12.0

The ultra-compact speaker in the DIAMOND 12 series, the DIAMOND 12.0 features all of the same technology as its larger siblings but is designed for small-footprint hi-fi systems, or even as a high-performance, compact satellite speaker in home theatre systems.

The DIAMOND 12.0 features a high-performance 100mm (4”) Klarity^TM driver with a bass performance that exceeds its diminutive footprint, while the superb 25mm (1”) woven polyester dome tweeter brings open and smoothly extended high frequencies.

Wharfedale Diamond 12.1
General description    2-way bookshelf speaker
Enclosure type    bass reflex
Transducer complement    2-way
Bass driver    5"(130mm) advanced PP Cone
Treble driver    1"(25mm) Textile Dome
AV shield    No
Sensitivity(2.83V @ 1m)    88dB
Recommended amplifier power    20-100W
Peak SPL    96dB
Nominal impedance    8Ω Compatible
Minimum impedance    4.0Ω
Frequency response(+/-3dB)    65Hz ~ 20kHz
Bass extension(-6dB)    60Hz
Crossover frequency    2.6kHz
Cabinet Volume (in litres)    8.2L
Dimensions ( H x W x D )    312 x 180mm x (250+28) mm
Net weight    6.8kg/pcs

Wharfedale Diamond 12.C
General description    2-way bookshelf speaker
Enclosure type    closed-box system
Transducer complement    2-way
Bass driver    5"(130mm) advanced PP Cone x2
Treble driver    1"(25mm) Textile Dome
AV shield    No
Sensitivity(2.83V @ 1m)    90dB
Recommended amplifier power    20-120W
Peak SPL    96dB
Nominal impedance    8Ω Compatible
Minimum impedance    4.0Ω
Frequency response(+/-3dB)    90Hz ~ 20kHz
Bass extension(-6dB)    80Hz
Crossover frequency    2.2kHz
Cabinet Volume (in litres)    8.7L
Dimensions ( H x W x D )    180 x 480 x (180+28) mm
Net weight    8.5kg/pcs

Wharfedale Diamond 12.0
General description    2-way bookshelf speaker
Enclosure type    bass reflex
Transducer complement    2-way
Bass driver    4"(100mm) advanced PP Cone
Treble driver    1"(25mm) Textile Dome
AV shield    No
Sensitivity(2.83V @ 1m)    87dB
Recommended amplifier power    20-60W
Peak SPL    95dB
Nominal impedance    8Ω Compatible
Minimum impedance    4.0Ω
Frequency response(+/-3dB)    70Hz ~ 20kHz
Bass extension(-6dB)    65Hz
Crossover frequency    2.7kHz
Cabinet Volume (in litres)    4.4L
Dimensions ( H x W x D )    265 x 160 x (200+28) mm
Net weight    5.1kg/pcs
