Wharfedale Diamond 12.4 5.1 Speaker Package

Ready Stock

Wharfedale Diamond 12.4 5.1 Speaker Package

SKU: Wharfedale Diamond 12.4 5.1 SP

RM 10,199.00

Color. :

Wharfedale Diamond 12.4 5.1 Speaker Package
Package Included:
1 Pair Diamond 12.4 Floorstanding
1 Unit Diamond 12.C Center
1 Pair Diamond 12.0 Bookshelf
1 Unit Diamond SW-150 10" Subwoofer
*Wharfedale speakers with 36 months warranty (not included subwoofer)*

* Free Bridgee CP Series 16AWG Speaker Cable 30Meter (Free cable Not included banana plugs)
* Free Monster Essentials RCA2 Subwoofer Cable 3Meter
* Free gift will be packed nicely in the product’s box for shipping option
* 如果需要邮寄，我们将会把赠品放进产品包装内。

User Reviews Available Now, Please Click On The Photos.

Get it with 0% Credit Card Instalment Plan Up to 36 months
1) Maybank Credit Card up to 12 months ( Lazada )
2) Maybank Credit Card up to 18 months ( Shopee )
3) PBB Credit Card up to 12 months ( Shopee )
4) OCBC Credit Card up to 36 months ( SLAV )

Description
Specification

Wharfedale Diamond 12.4 5.1 Speaker Package

Diamond 12.4

The powerhouse model of the Wharfedale DIAMOND 12 series, the DIAMOND 12.4 is the room-filling, chest-pounding, largest model in the series.

For larger, more powerful systems and cinema-style home theatre experiences, the DIAMOND 12.4 will fill your room with an impactful, immersive performance.

Configured in a 2.5 way system with exception crossover technology, the DIAMOND 12.3 utilises dual 150mm (6.5”) Klarity^TM drivers for impactful yet refined mid-range and bass frequencies, while the 25mm (1”) dome tweeter delivers open and smoothly extended high frequencies.

Diamond 12.c

The DIAMOND 12.C brings cinema-quality vocal tangibility and depth to the Wharfedale DIAMOND 12 series home theatre system.

Designed as the centrepiece and perfect complement for the DIAMOND 12 series standmount (bookshelf) and floorstander models, the DIAMOND 12.C is compact, accurate and powerful.

Using dual 130mm (5”) Klarity^TM drivers for accurate, refined mid-range and bass frequencies, while the 25mm (1”) dome tweeter delivers open and smoothly extended high frequencies opening up detail and depth for movies, sports and music.

Diamond 12.0

The ultra-compact speaker in the DIAMOND 12 series, the DIAMOND 12.0 features all of the same technology as its larger siblings but is designed for small-footprint hi-fi systems, or even as a high-performance, compact satellite speaker in home theatre systems.

The DIAMOND 12.0 features a high-performance 100mm (4”) Klarity^TM driver with a bass performance that exceeds its diminutive footprint, while the superb 25mm (1”) woven polyester dome tweeter brings open and smoothly extended high frequencies.

SW-150

The SW series of subwoofers offer a level of performance previously unheard of in their class. Revolutionary drive units, amplifier modules and filter stages feature on every model. They strike the perfect balance between power and sound quality, offering remarkable sound pressure levels, yet retaining enough control to be considered audiophile in quality. This is possible only through the use of some space-age materials and cutting-edge technology in our drive units.

Solid, well-engineered power amplifiers, dedicated to the production of low-frequency energy are used across the range. Power is targeted specifically at the most important section of the bass spectrum, with very little loss and a controlled roll-off allowing for superb integration with all hi-fi and home cinema systems. The filter section controls the integration with your main speakers and ensures the transition is seamless. Designed using six discrete circuits, signal purity is regarded as paramount. Each circuit has a different crossover frequency (35Hz to 85Hz in 10Hz steps). The filter is 12dB/octave on the SW-150 and 24dB/octave on the larger models. In each model, it is possible to switch off all filters and allow the AV processor to control the effective frequency range of the subwoofer. This is preferable in high-end systems.

Finally, the Tri-lam cone is revolutionary in terms of technology and performance. Detailed elsewhere in this brochure, it is one of the most advanced cones ever seen in a moving-coil loudspeaker, coupled with an elongated voice coil with a maximum excursion of 24mm.

Specification:

Diamond 12.4 Floorstanding
General description 2.5-way ﬂoorstanding speaker
Enclosure type bass reﬂex
Bass driver 6.5"(150mm) advanced PP Cone
Midrange driver 6.5"(150mm) advanced PP Cone
Treble driver 1"(25mm) Textile Dome
AV shield No
Sensitivity(2.83V @ 1m) 89dB
Recommended ampliﬁer power 30-200W
Peak SPL 102dB
Nominal impedance 8Ω Compatible
Minimum impedance 5Ω
Frequency response(+/-3dB) 40Hz ~ 20kHz
Bass extension(-6dB) 35Hz
Crossover frequency 2.1kHz
Cabinet Volume (in litres) 40.8L
Dimensions ( H x W x D ) (1100+50) x 200 x (350+28) mm
Net weight 22.4kg/pcs

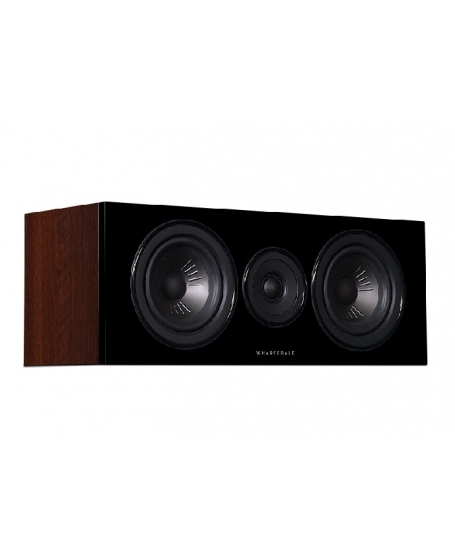

Diamond 12.C Center
General description 2-way bookshelf speaker
Enclosure type closed-box system
Transducer complement 2-way
Bass driver 5"(130mm) advanced PP Cone x2
Treble driver 1"(25mm) Textile Dome
AV shield No
Sensitivity(2.83V @ 1m) 90dB
Recommended ampliﬁer power 20-120W
Peak SPL 96dB
Nominal impedance 8Ω Compatible
Minimum impedance 4.0Ω
Frequency response(+/-3dB) 90Hz ~ 20kHz
Bass extension(-6dB) 80Hz
Crossover frequency 2.2kHz
Cabinet Volume (in litres) 8.7L
Dimensions ( H x W x D ) 180 x 480 x (180+28) mm
Net weight 8.5kg/pcs

Diamond 12.0 Bookshelf
General description 2-way bookshelf speaker
Enclosure type bass reﬂex
Transducer complement 2-way
Bass driver 4"(100mm) advanced PP Cone
Treble driver 1"(25mm) Textile Dome
AV shield No
Sensitivity(2.83V @ 1m) 87dB
Recommended ampliﬁer power 20-60W
Peak SPL 95dB
Nominal impedance 8Ω Compatible
Minimum impedance 4.0Ω
Frequency response(+/-3dB) 70Hz ~ 20kHz
Bass extension(-6dB) 65Hz
Crossover frequency 2.7kHz
Cabinet Volume (in litres) 4.4L
Dimensions ( H x W x D ) 265 x 160 x (200+28) mm
Net weight 5.1kg/pcs

Wharfedale Diamond SW-150
Bass Driver   250mm (10”)
Amplifier Power   150W RMS
Input impedance   10kΩ
Frequency Response   35Hz to 110Hz
Maximum SPL (Ref: 1M)   107dB
Low Pass filter range   35–85Hz (10Hz steps)
Size including feet   330 x 330 x 370 (mm)
(H x W x D)
Features   0-180º phase switch
    Line and high level inputs
    Reflex ported
