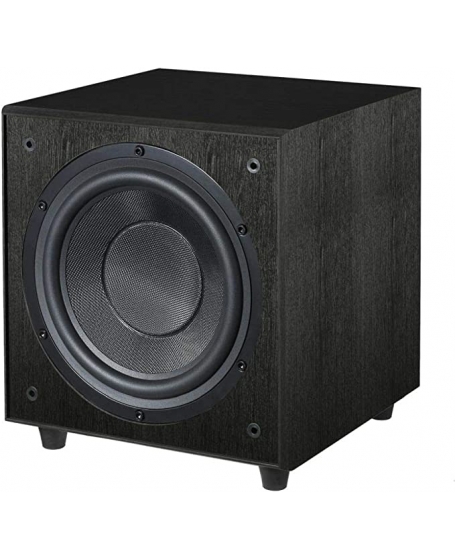

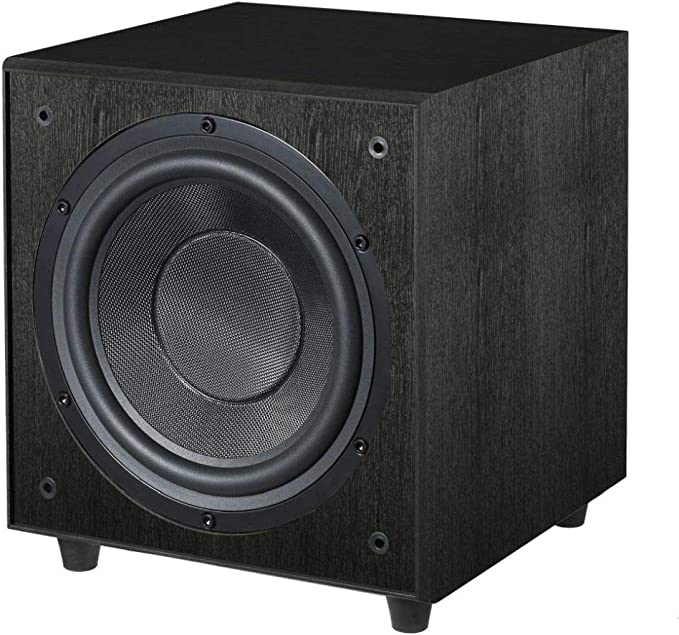

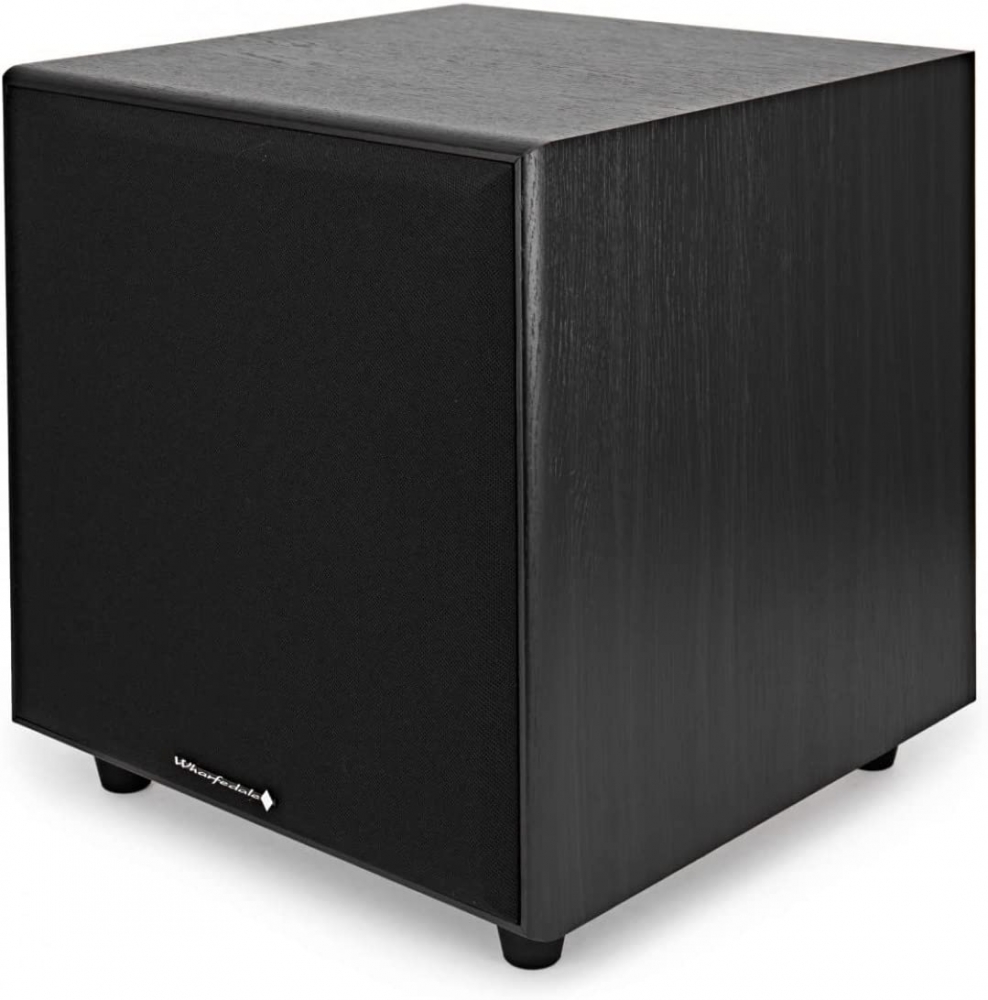

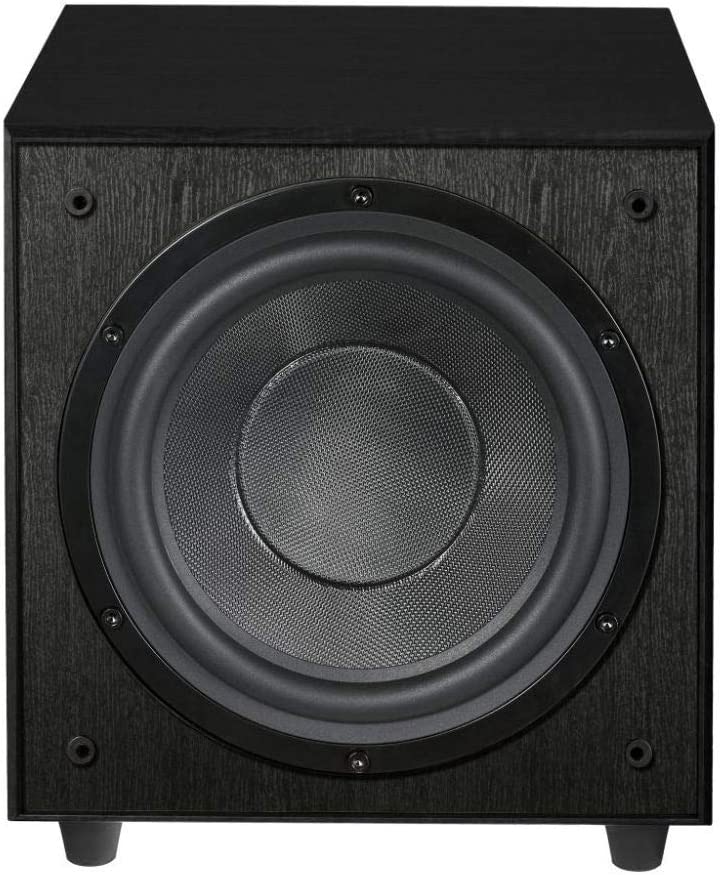

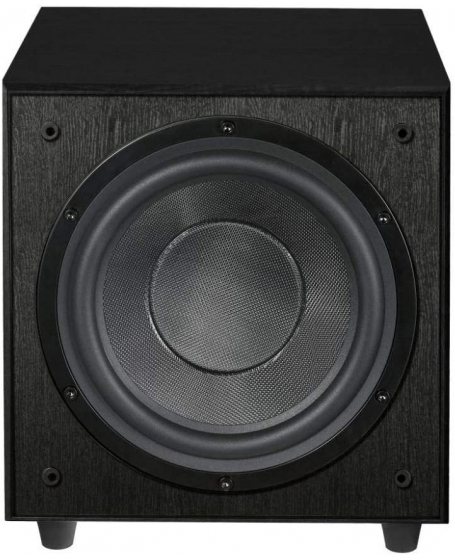

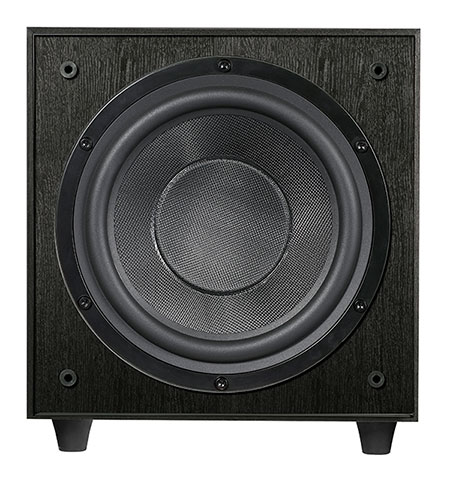

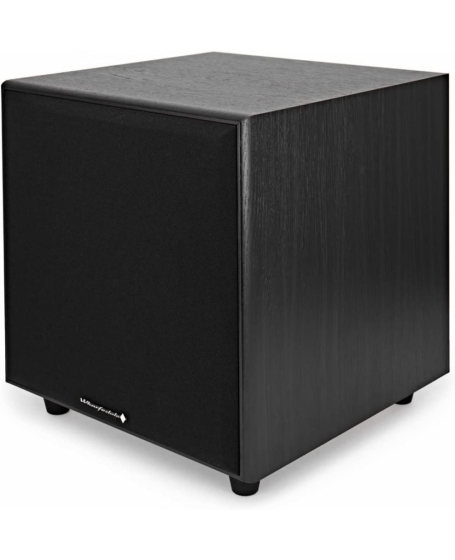

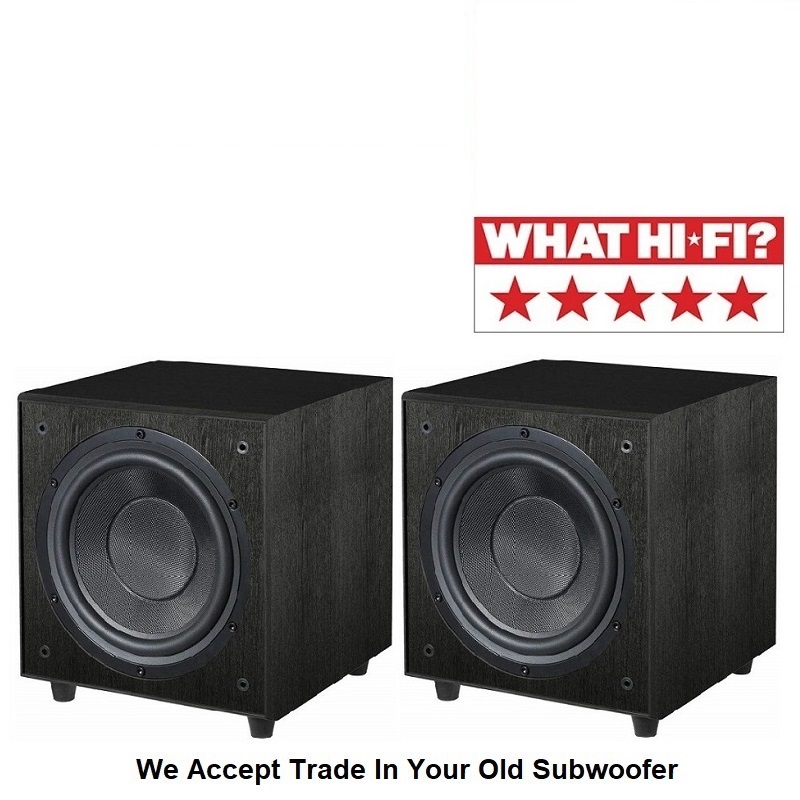

Wharfedale Diamond SW-150 10" Dual Subwoofer Combo
SKU: Wharfedale Diamond SW-150 ComboBass Driver : 250mm (10”)
Amplifier Power : 150W RMS
Frequency Response :35Hz to 110Hz
* Not Valid For Subwoofer Voucher*

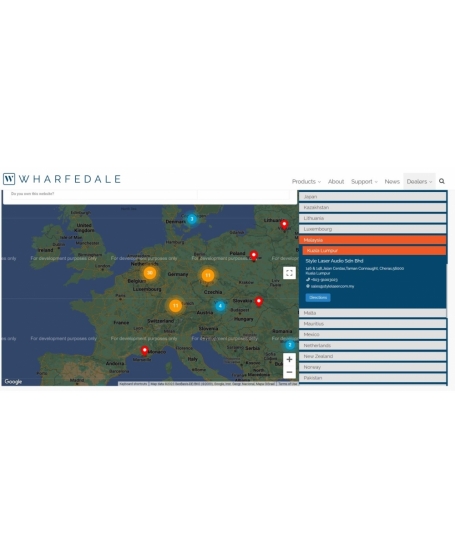

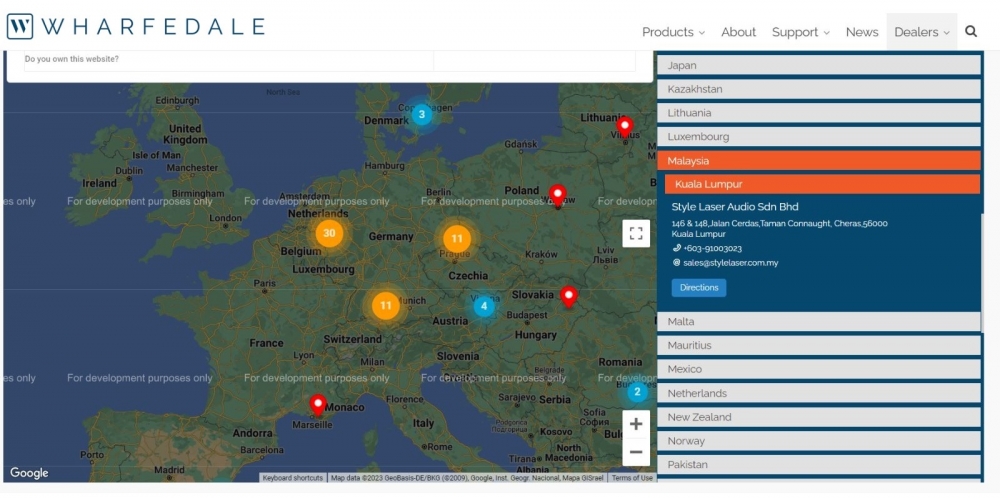

We are authorized distributor for Wharfedale in Malaysia and are responsible for the after sales and service of Wharfedale products in the country. We will not provide any parts or services for PARALLEL IMPORT Wharfedale products that are not imported by us.
SW-150
The SW series of subwoofers offer a level of performance previously unheard of in their class. Revolutionary drive units, amplifier modules and filter stages feature on every model. They strike the perfect balance between power and sound quality, offering remarkable sound pressure levels, yet retaining enough control to be considered audiophile in quality. This is possible only through the use of some space-age materials and cutting-edge technology in our drive units.
Solid, well-engineered power amplifiers, dedicated to the production of low-frequency energy are used across the range. Power is targeted specifically at the most important section of the bass spectrum, with very little loss and a controlled roll-off allowing for superb integration with all hi-fi and home cinema systems. The filter section controls the integration with your main speakers and ensures the transition is seamless. Designed using six discrete circuits, signal purity is regarded as paramount. Each circuit has a different crossover frequency (35Hz to 85Hz in 10Hz steps). The filter is 12dB/octave on the SW-150 and 24dB/octave on the larger models. In each model, it is possible to switch off all filters and allow the AV processor to control the effective frequency range of the subwoofer. This is preferable in high-end systems.

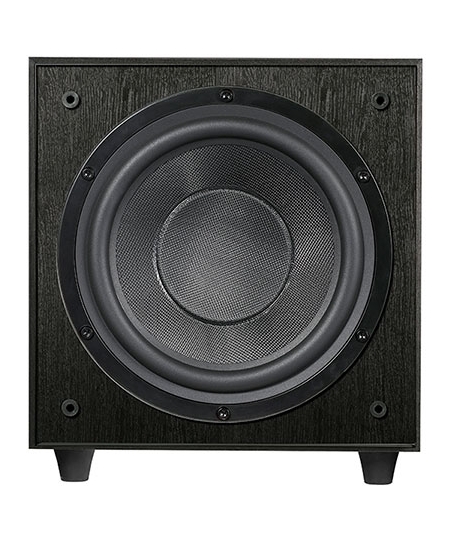

Finally, the Tri-lam cone is revolutionary in terms of technology and performance. Detailed elsewhere in this brochure, it is one of the most advanced cones ever seen in a moving-coil loudspeaker, coupled with an elongated voice coil with a maximum excursion of 24mm.
Specification | |
---|---|
Bass Driver | 250mm (10”) |
Amplifier Power | 150W RMS |
Input impedance | 10kΩ |
Frequency Response | 35Hz to 110Hz |
Maximum SPL (Ref: 1M) | 107dB |
Low Pass filter range | 35–85Hz (10Hz steps) |
Size including feet | 330 x 330 x 370 (mm) |
(H x W x D) | |

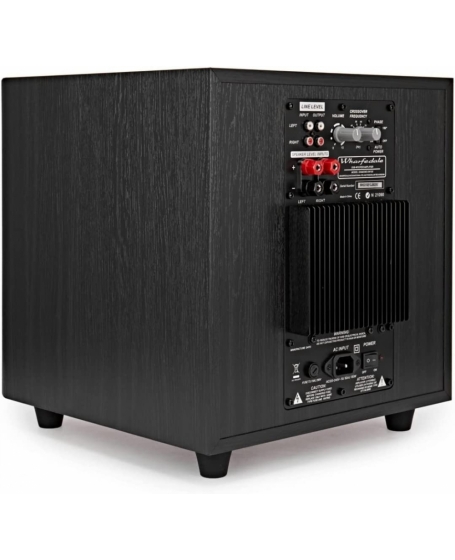

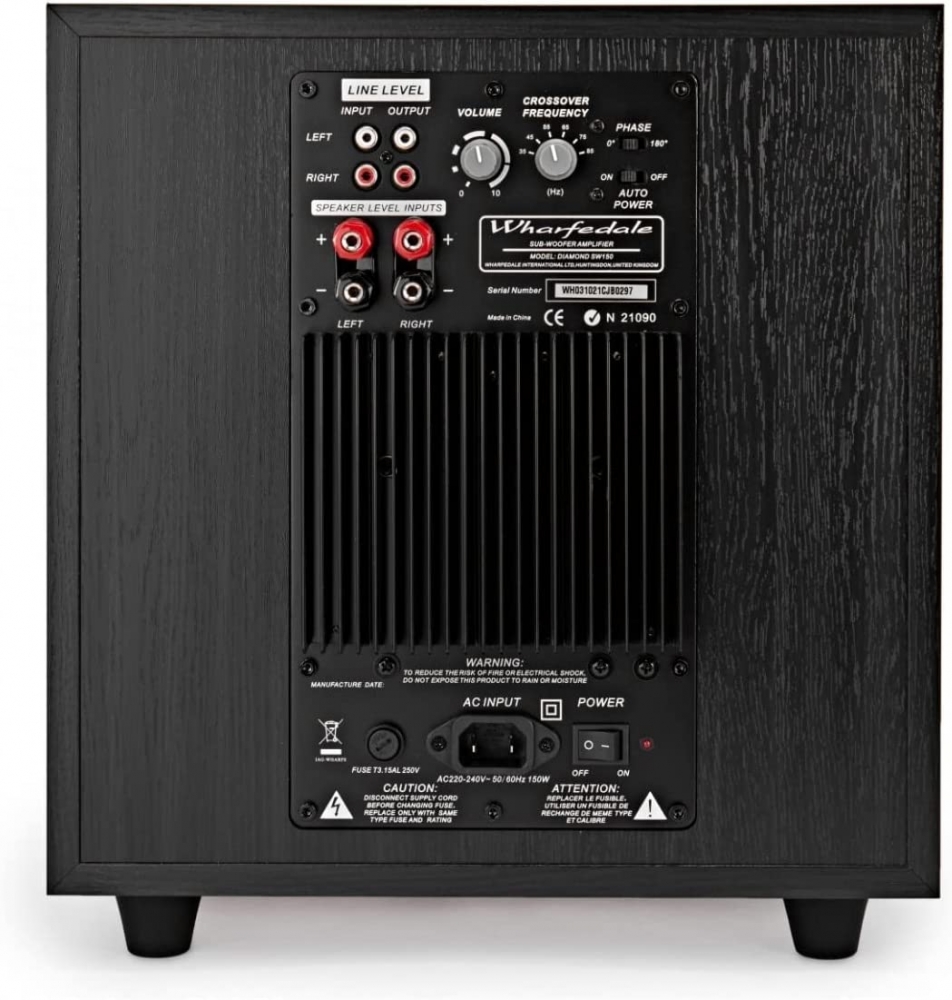

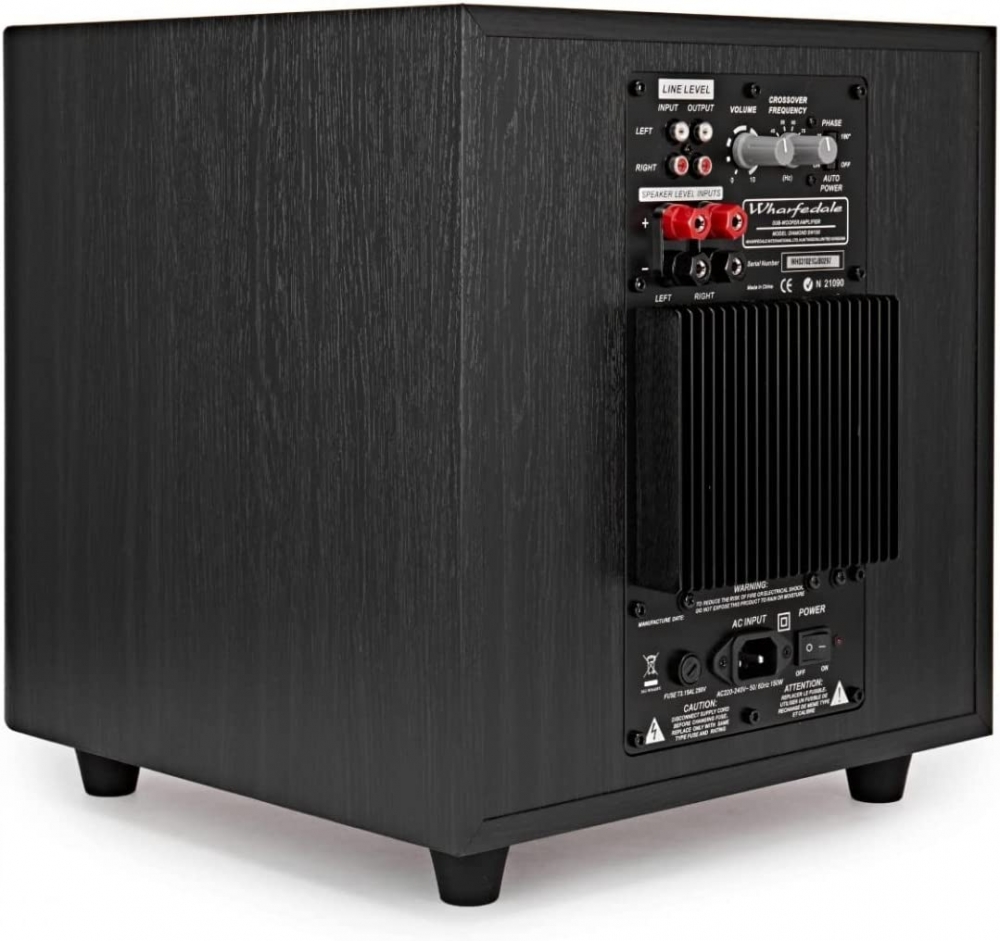

Features | 0-180º phase switch |
Line and high level inputs | |
Reflex ported |
