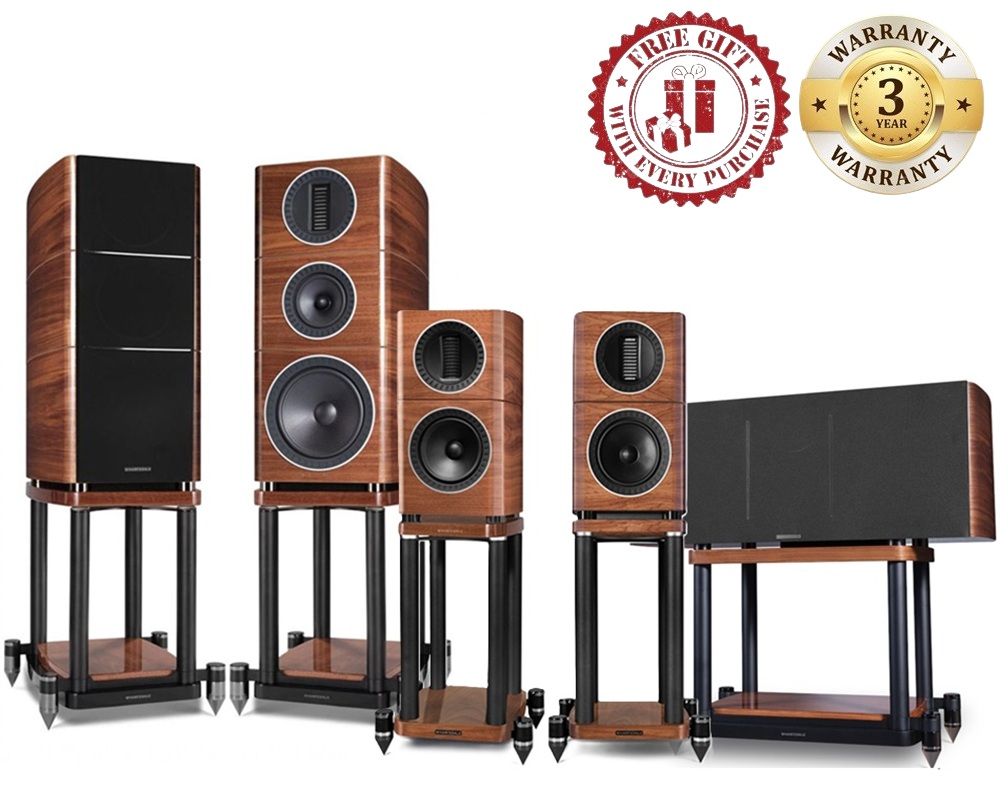

Wharfedale Elysian 2+Elysian C+Elysian 1 Speaker Package

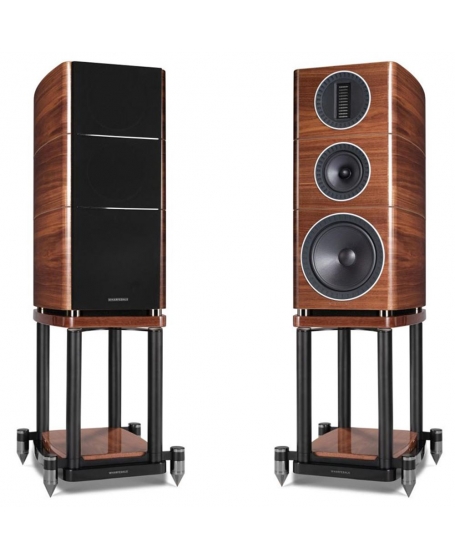

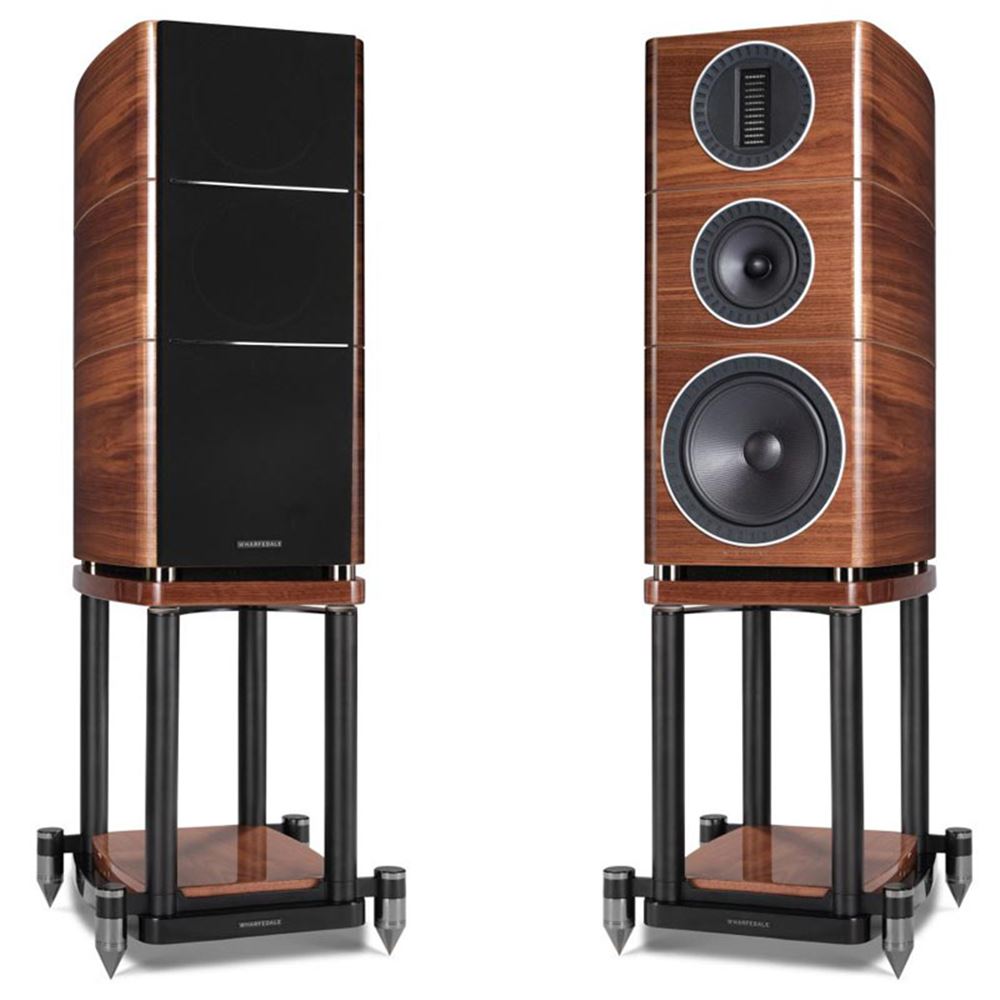

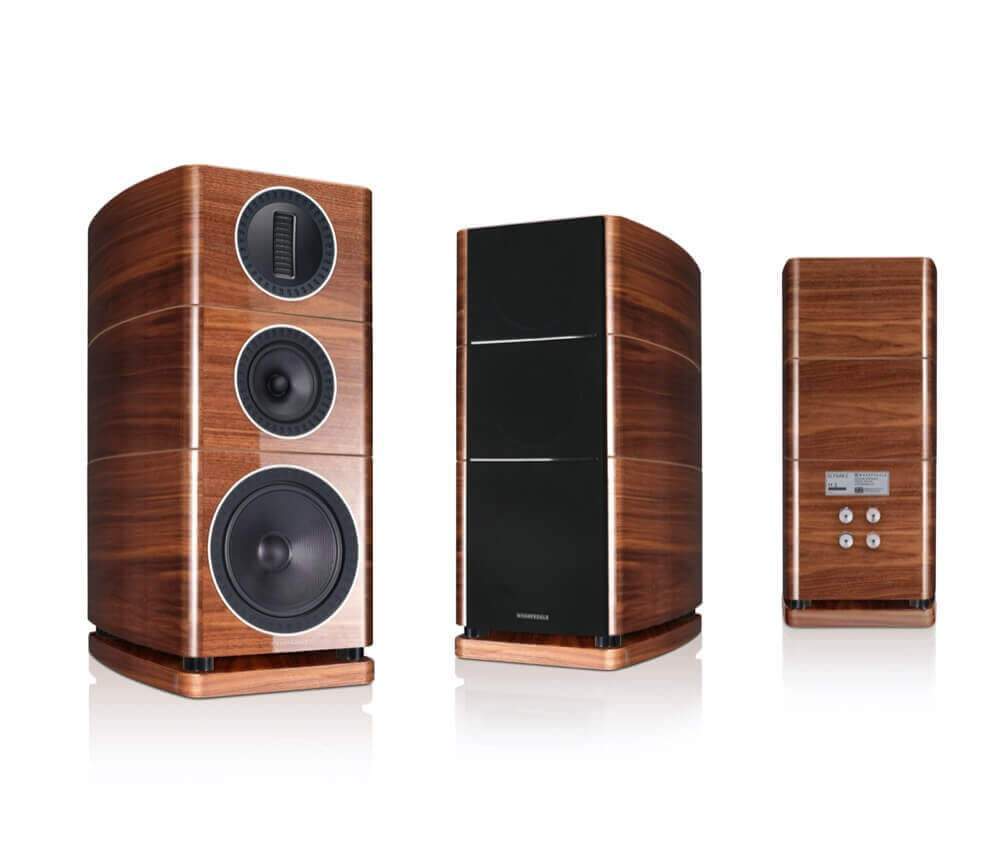

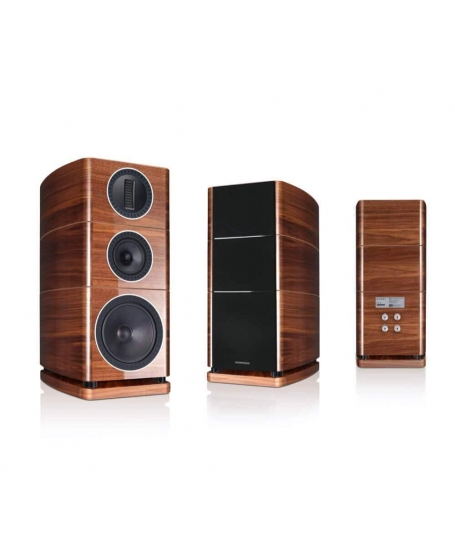

Elysian 2

A genuine example of luxury audio, ELYSIAN offers indulgence in design, materials aesthetic and performance. A thorough and no compromise approach has lead the Wharfedale engineers to create a benchmark in affordable, audiophile-grade luxury loudspeakers. Cutting edge design and class-leading technology are combined to deliver musical reproduction that will proudly challenge the world’s finest loudspeakers.

From the Piano-Lacquer finished cabinet, created with details of true craftsmanship, through to the AMT (Air Motion Transformer) high frequency transducers and European manufactured bass drivers, ELYSIAN represents a new standard in the world of home audio experiences.

The resultant sound, from the finely balanced driver selection and expert crossover design, matches the pristine design with a degree of natural transparency that will leave you breathless.

One for the connoisseur and one for the history books, ELYSIAN will leave you questioning, how is this possible in this price-class?

ELYSIAN is truly an audio engineering work of art.

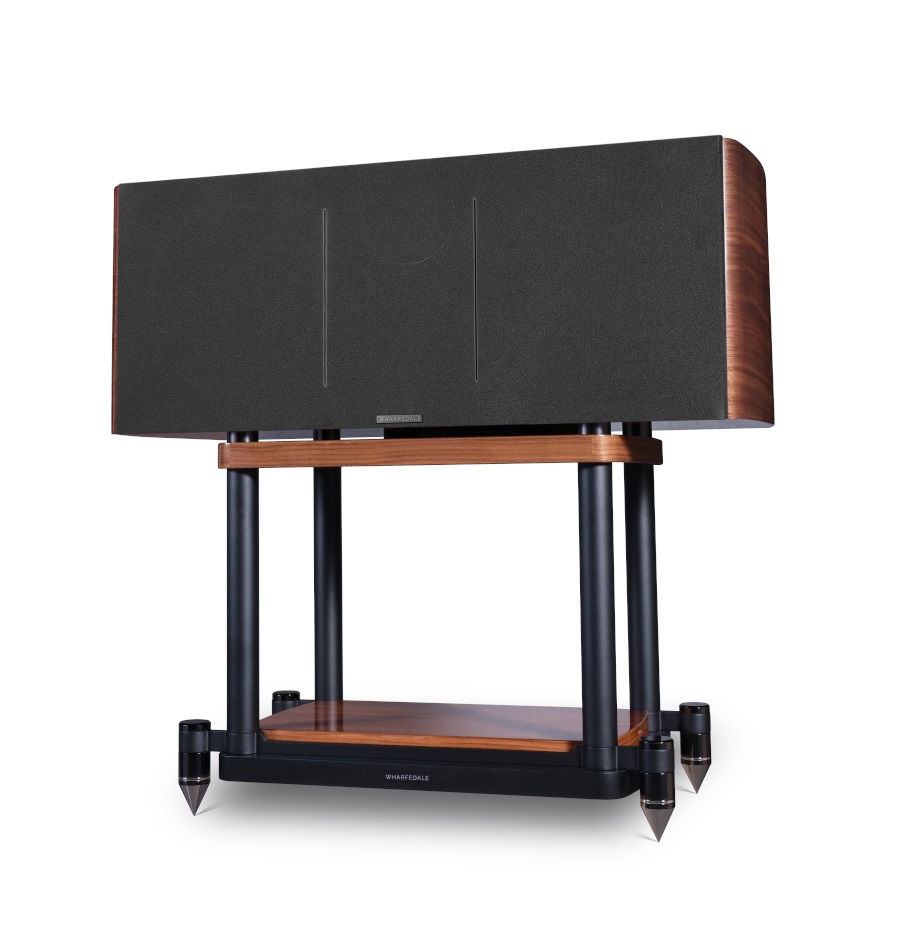

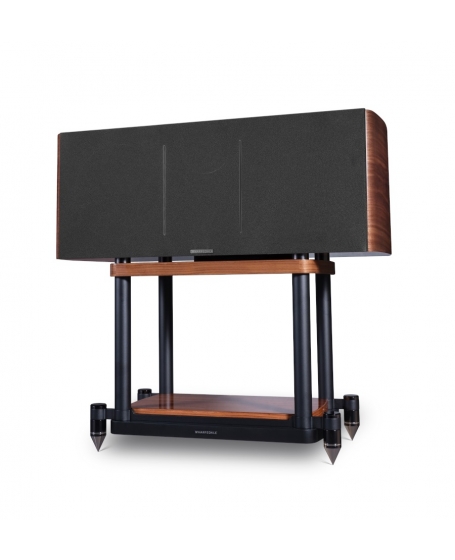

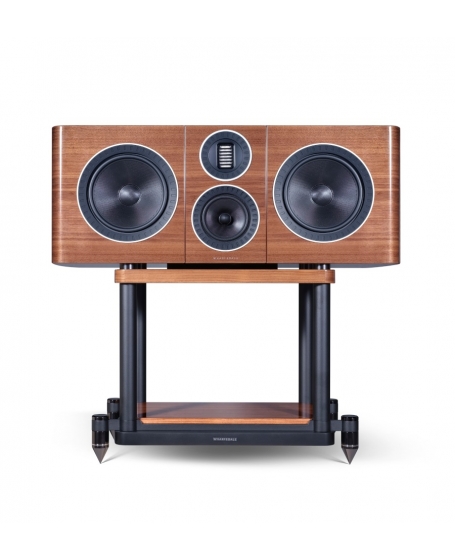

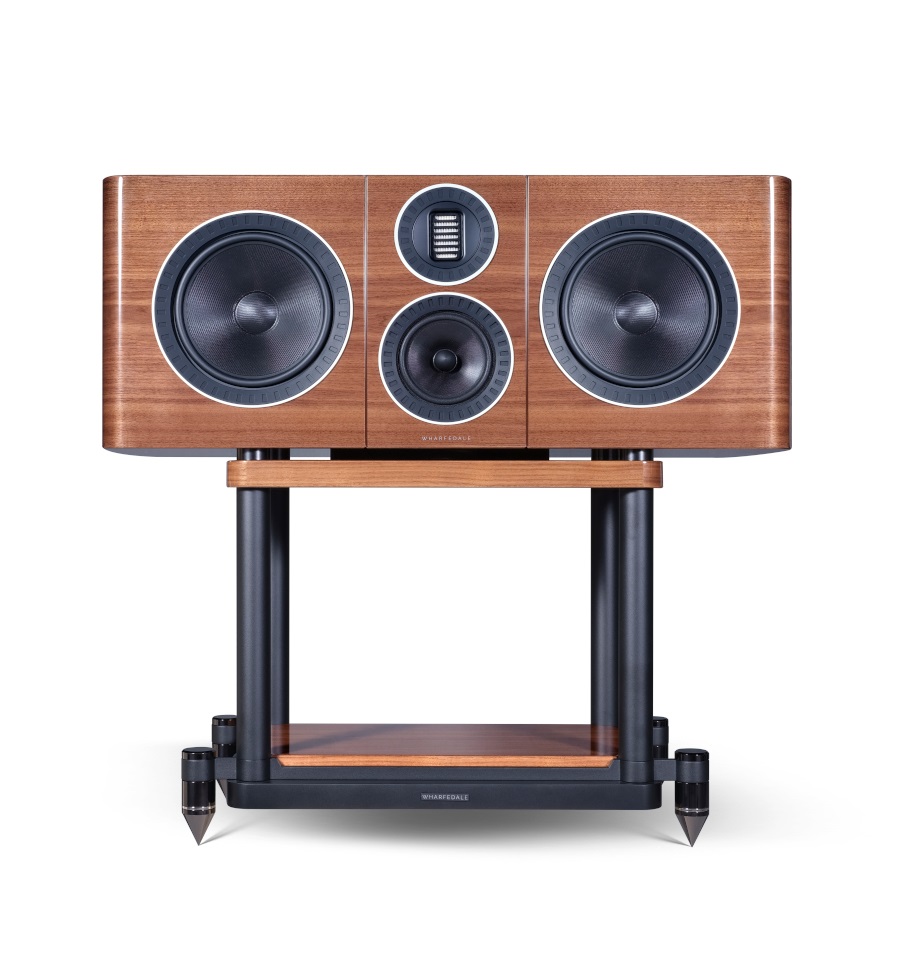

ELYSIAN C

ELYSIAN Centre brings a new dimension to the ELYSIAN series performance, tuning the application for mind-blowing home theatre settings.

Each component part is engineered to the very highest standard. The drivers, the crossover, the cabinet – every aspect has been developed in harmony and without cost constraint to push the project to its performance limit. This thorough and no compromise approach has led the Wharfedale engineers to create a benchmark in affordable, audiophile-grade luxury loudspeakers. Cutting edge design and class-leading technology are combined to deliver musical reproduction that will proudly challenge the world’s finest loudspeakers.

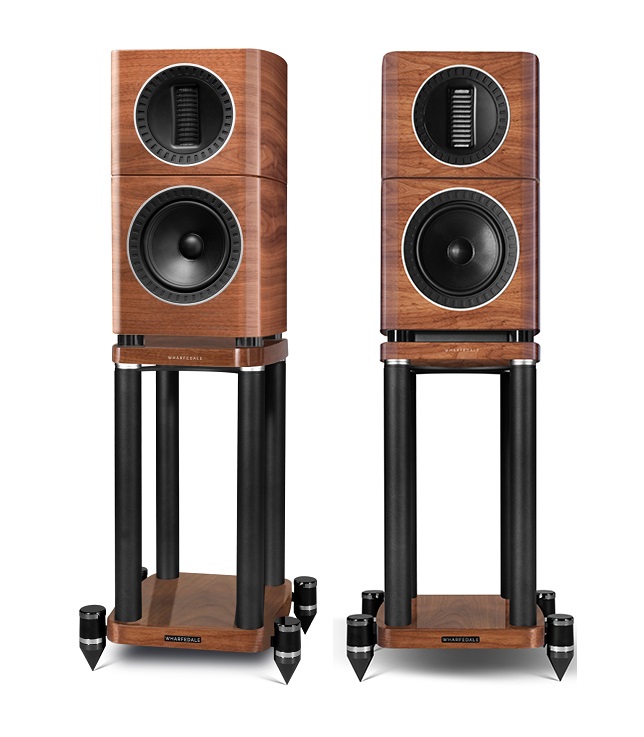

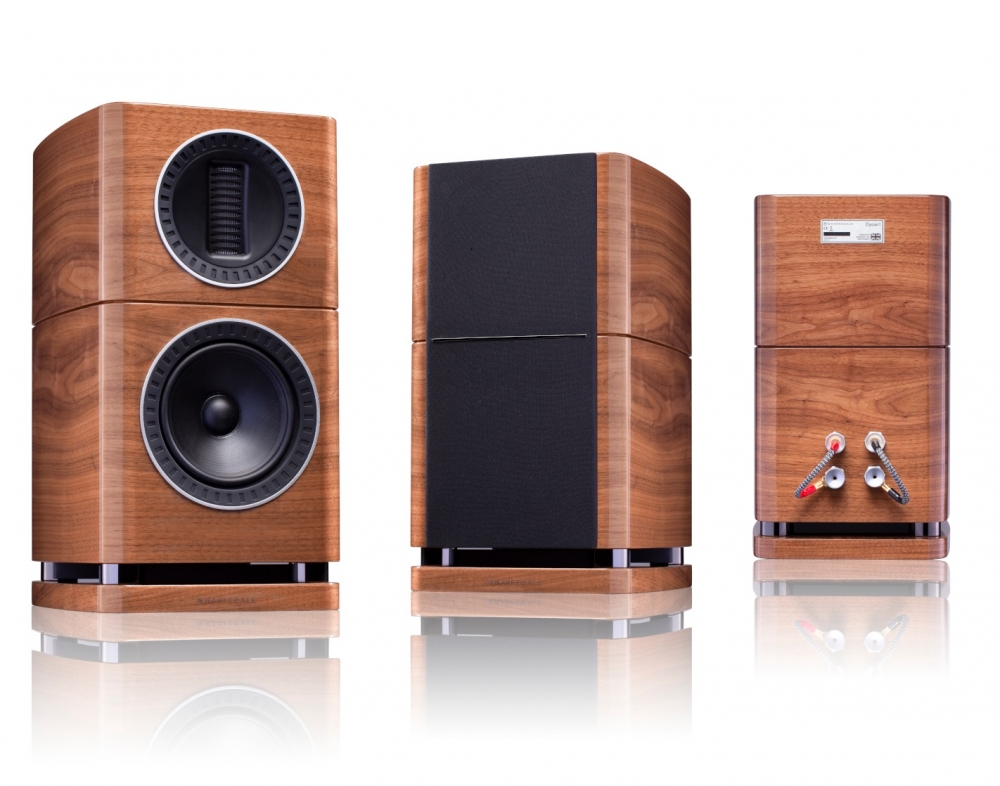

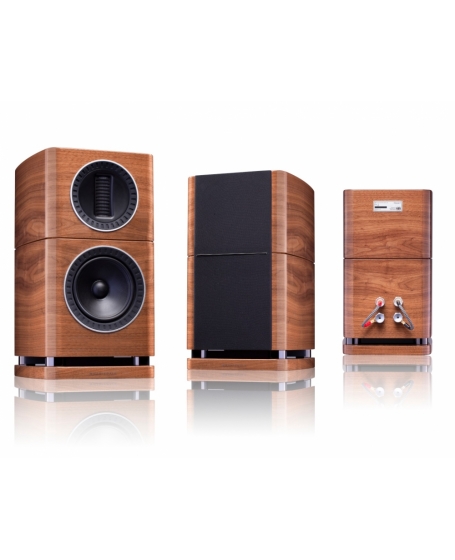

ELYSIAN 1

ELYSIAN 1 is the latest addition to the flagship loudspeaker series from Wharfedale, pushing the boundaries of capability and performance. A genuine example of luxury audio, ELYSIAN 1 offers indulgence in design, materials aesthetic, and performance, now in a more compact standmount format.

Each component part is engineered to the very highest standard. The drivers, the crossover, the cabinet every aspect has been developed in harmony and without cost constraint to push the project to its performance limit. This thorough and no-compromise approach has led the Wharfedale engineers to create a benchmark in affordable, audiophile-grade luxury loudspeakers. Cutting-edge design and class-leading technology are combined to deliver musical reproduction that will proudly challenge the world’s finest loudspeakers.

Elysian 2
System    3-way Standmount Speaker
Driver
Treble    27x90mm AMT
Midrange    6.0" (150mm) coated fibre glass matrix cone
Bass    8.5" (220mm) coated fibre glass matrix cone
Nominal Impedance    4Ω (compatible 8Ω )
Crossover Frequency    360Hz, 2.9kHz
Frequency Response    35Hz ~ 22kHz (+/-3dB)
Sensitivity    89dB (2.83V @1m)
Recommended Amplifier Power    25 - 250W
Weight    30.5kg/pcs
Dimensions (H x W x D)mm    700 on plinth x 334 x (432+30) with terminals

Elysian Centre
General description    3-way centre speaker
Design philosophy and core technology
Enclosure type    bass reflex
Transducer complement    3-way
ABR
Bass driver    8.5" (220mm) Coated Fibre Glass Matrix Cone x2
Midrange driver    6" (150mm) Coated Fibre Glass Matrix Cone
Treble driver    27*45mm AMT
Full-range driver
AV shield    No
Sensitivity (2.83V @ 1m)    91dB
Recommended amplifier power    25-150W
Peak power handling
Peak SPL    110dB
Nominal impedance    6Ω (Compatible 8Ω )
Minimum impedance    3.5Ω
Frequency response(+/-3dB)    35Hz ~ 22kHz
Bass extension(-6dB)    27Hz
Crossover frequency    360Hz, 2.9kHz
Cabinet Volume(in litres)    5.7L, 64.0L
Dimensions (mm)
Height (on plinth)    320mm
Width    830mm
Depth (with terminals)    (340+30)mm
Carton size    965*495*455mm
Net weight    30.2kg/pcs
Gross weight    35.0kg/ctn
Finish    Walnut
Standard accessories    rubber feet

Elysian 1
General description    2-way standmount speaker
Design philosophy and core technology
Enclosure type    bass reflex
Transducer complement    2-way
ABR
Bass driver    7"(180mm) Coated Fibre Glass Matrix Cone
Midrange driver
Treble driver    27*90mm AMT
Full-range driver
AV shield    No
Sensitivity (2.83V @ 1m)    89dB
Recommended amplifier power    25-175W
Peak power handling
Peak SPL    108dB
Nominal impedance    4Ω (Compatible 8Ω )
Minimum impedance    3.8Ω
Frequency response(+/-3dB)    49Hz ~ 22kHz
Bass extension(-6dB)    44Hz
Crossover frequency    2.5kHz
Cabinet Volume(in litres)    21..6L
Dimensions (mm)
Height (on plinth)    490mm
Width    263mm
Depth (with terminals)    (285+30)mm
Carton size    690*445*625mm
Net weight    15kg/pcs
Gross weight    33.2kg/ctn
Finish    Walnut
Standard accessories    rubber feet
