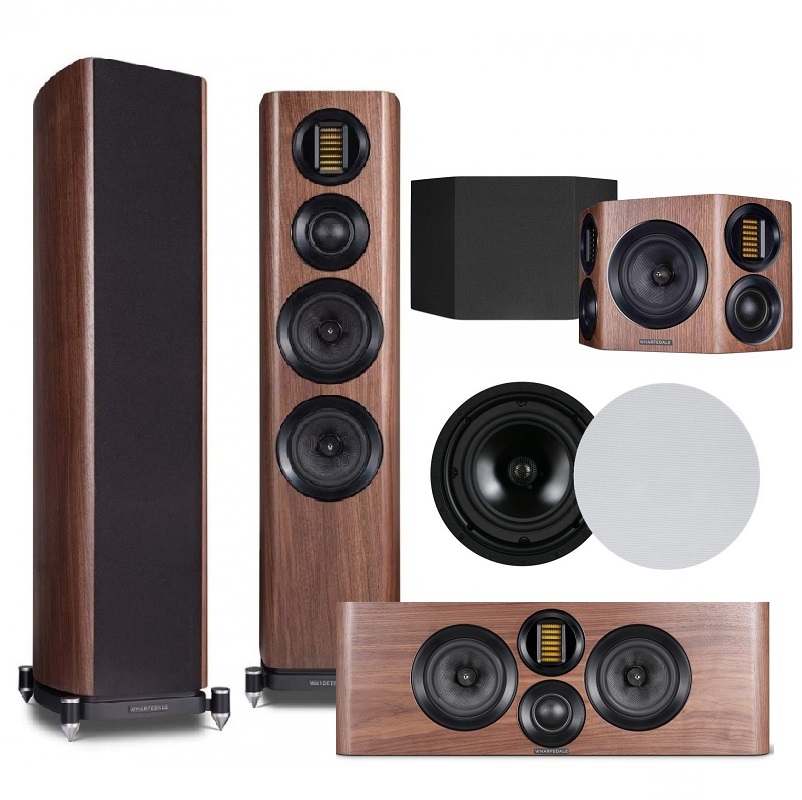

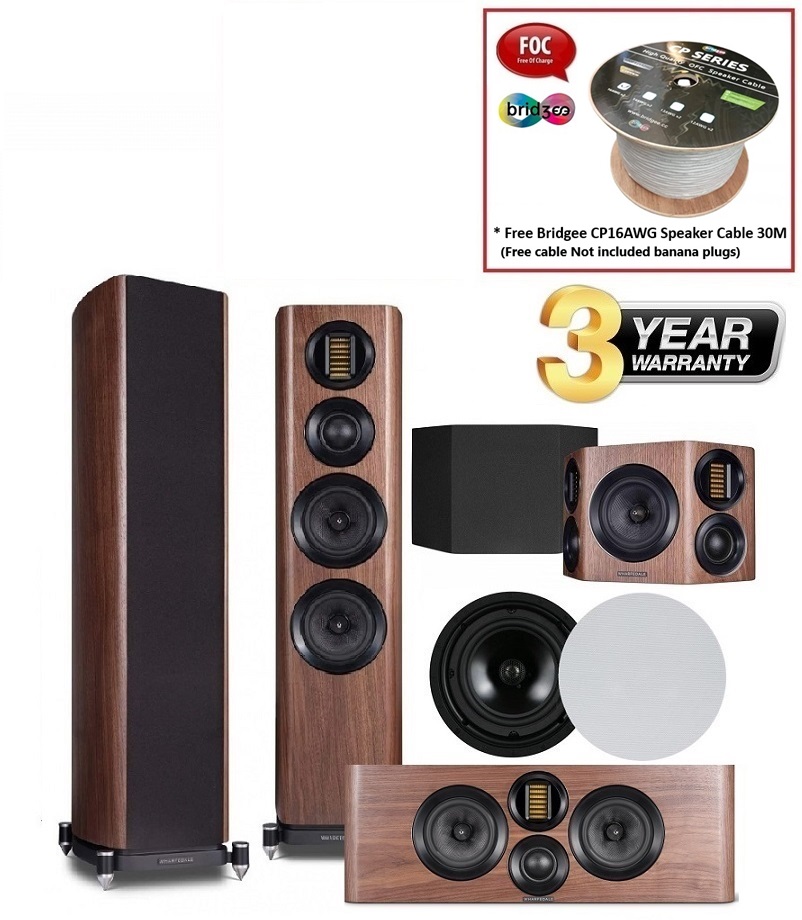

Wharfedale EVO 4.4 Speaker Package

Wharfedale EVO 4.4 Speaker Package

Wharefdale Evo 4.4

Wharefdale Evo 4.4 Speakers are an exceptional pair of 3 way speakers that have won the 2019 What Hi-fi award for the best floor-standing speaker.

They are the flagship floorstanders in the Evo range of speakers. Featuring 6.5" Woven Kevlar Bass Driver,  2" Soft Dome mid, and 55x80mm AMT HF driver system.

The Evo 4.4's pack an impressive punch when it comes to sound performance, feature advanced technology and are available in a range of colours that will stylishly sit in any room.

High-performance at an accessible price

The Wharfedale Evo 4.4 speakers have been developed with technologies and quality materials to provide a high quality sound at an affordable price. Working to evolve the sound quality, Wharfedale have based the Evo series off concepts from their popular Elysian speakers to promise high-end sound but with a smaller price tag.

AMT Tweeter

Evo 4.4 incorporate the same technology as Wharfedale's flagship Elysian speakers such as the Air Motion transformer (AMT) tweeter, a high-frequency driver that provides minimal distortion and maximum accuracy by moving the air in a different way then a conventional dome.

Dynamic performance from anywhere in the room

The Evo 4.4 is designed with large scale sound in mind, ideal for home cinema systems. Combining the AMT tweeter with with a fabric dome mid-range the speakers ensures listeners are met with a dynamic reach and clear defined sound wherever they are in the room.

Excellent Sound

Alongside this the speakers reach great volumes with ease. The large floor-standing speakers are as impressive to look at as they are to listen to. Music will sound refined and superbly detailed; the Evo 4.4's truly showcase premium quality performance.

Wharfedale Evo 4.C

45-Pound Center-Channel Loudspeaker Is Serious About Home Theater: Wharfedale EVO 4.C Features Two 6.5-Inch Kevlar Woofers, Plays with Crispness, Focus, Heft, and Clarity

Wharfedale takes home theater seriously. Just consider EVO 4.C, a center-channel loudspeaker packed with trickle-down technology from the U.K.-based company's top-of-the-line Elysian Series. Weighing nearly as much as the EVO 4.4 towers, EVO 4.C plays with explosive dynamics and sweet, refined upper-register detail. If you want to catch every word of critical dialogue and feel the full impact of center-stage action, EVO 4.C will elevate your movie and gaming experiences.

Equipped with dual 6.5-inch, bidirectional, black-woven Kevlar cone woofers that incorporate a self-damping material that reduces resonances to extremely low levels – as well as a fixed, profiled phase plug to ensure a smooth acoustic roll-off that enables the drivers to mesh with EVO 4.C's specially designed Air Motion Transformer tweeter and two-inch silk midrange driver – this high-value component delivers incredibly wide dispersion of high-frequencies, articulate bass, and immersive soundstaging.

EVO 4.C's crossover also deserves special mention. Using the company's custom-designed Computer Aided Optimization technology during extensive listening tests, Wharfedale engineers carefully fine-tuned the crossover to the point that EVO 4.C achieves balanced integration of its driver, woofer, and tweeter.

Measuring 9.8 x 29.5 x 13.8 inches (HWD) and weighing a shade more than 45 pounds, EVO 4.C fits in tight cabinet spaces all the while its 90dB sensitivity means it can be driven by a wide range of amplifiers.

Beauty with Purpose
The EVO4 cabinet is purpose designed from the ground-up. Not just the sleek curves, which stand out from the competition, but the materials, composites, internal bracing and damping too. All of this ensures the sonic character is not compromised by aesthetic.

AMT
The AMT (Air Motion Transformer) high-frequency transducer excels above any rival model within this class. The point-source-replicating, high-volume air movement results in lower distortion and higher accuracy in HF reproduction.

Accuracy
Articulate and accurate bass is perfected by the bi-directional weaved Kevlar cones, a material that is naturally self-damping to reduce and distribute resonances to virtually negligible levels. In addition, a fixed, profiled phase plug ensures smooth acoustic roll-off, further aiding integration with the AMT HF unit and midrange drivers.

Versatile in Application
EVO4 Series is refined to appeal to the audiophile and the home-theater enthusiast alike. 4C offers enhanced clarity of dialogue in home-cinema applications while the 4S surround speakers immerse the user in a genuine theater experience.

Evo4.s

Wharfedale’s new EVO4 has grown out of the extensive research and development that produced the ELYSIAN flagship loudspeakers and borrows much of the technology involved in ELYSIAN.

The primary focus is on the AMT development resulting in a radically different way of reproducing high frequency detail efficiently and accurately. Similar cabinet technology to ELYSIAN provides a stable and solid foundation for the drive units with radiused edges to help integrate the driver output with the room acoustics. In addition the unique SLPP bass reflex system, as developed for ELYSIAN, is now incorporated in EVO4.

沃夫代爾（Wharfedale）的新型EVO4源於廣泛的研發工作，該研究產生了ELYSIAN旗艦揚聲器，並藉鑑了ELYSIAN涉及的許多技術。

主要關注點是AMT的發展，這導致了一種根本不同的有效且準確地再現高頻細節的方式。與ELYSIAN類似的機櫃技術為帶圓角邊緣的驅動器單元提供了穩定而堅實的基礎，有助於將驅動器輸出與室內聲學集成在一起。此外，為ELYSIAN開發的獨特的SLPP低音反射系統現已納入EVO4。

WCM-80

Wharfedale WCM-80 In-Ceiling Speakers (Pair) brings Wharfedale sound to the Custom Installation market at an affordable price point. WCM-80 features a 1" Titaninum swivel NEO tweeter for optimised positioning.

Trimless

WCM-80 incorporates an edgeless design for discreet installation with magnetically attached grilles, optionally available in a square shape, which ensures a flawless blend with the wall or ceiling. The simplistic and discreet exterior hides the advanced drivers and crossover networks that are housed within.

High Quality

The robust polypropylene cone is paired with an ultra-durable, high-excursion rubber surrounds maintaining stability under high pressure and extensive bass output. Titanium dome tweeters with highly efficient neodymium motor systems complete the wide frequency response with a scintillating high frequency and wide dispersion.

Features

WCM-80 speakers also feature gold plated spring loaded terminals, an easy install safe lock mechanism as well as thermal tweeter protection. It also offers +/- 3dB bass & treble controls.

Wharfedale EVO 4.4
3-way floorstanding speaker
wall-mounted installation possible by bass reflex in the base
2 x 150mm bass driver
1 x 50mm midrange driver
55x80mm AMT tweeter
90 dB efficiency
30 - 200 watts recommended amplifier power
4 ohms impedance
Frequency range 38Hz-24kHz
Dimensions (HxWxD) 1060 x 257 x (345 + 10) mm
Weight per speaker 25.6 kg

Wharfedale EVO 4.C
General Description    3-way centre speaker
Enclosure Type    bass reflex
Transducer Complement    3-way
Bass Driver    6.5"(165mm) black woven Kevlar® cone x 2
Midrange Driver    2"(50mm) soft dome
Treble Driver    30x60mm AMT
AV Shield    No
Sensitivity (2.83V @ 1M)    90dB
Recommended Amplifier Power    25-150W
Peak SPL    108dB
Nominal Impedance    8Ω Compatible
Minimum Impedance    4.3Ω
Frequency Response (+/-3dB)    48Hz ~ 22kHz
Bass Extension (-6dB)    42Hz
Crossover Frequency    1.5kHz,3.9kHz
Dimensions (HxWxD)    245 x 750 x (340+10)mm
Net Weight    15.8kg/pcs

Wharfedale EVO 4.S
General Description    3-way surround speaker
Enclosure Type    closed box
Transducer Complement    3-way
Bass Driver    6.5"(165mm) black woven Kevlar® cone x 2
Midrange Driver    2"(50mm) soft dome x2
Treble Driver    30x60mm AMT x2
AV Shield    No
Sensitivity (2.83V @ 1M)    88dB
Recommended Amplifier Power    25-120W
Peak SPL    106dB
Nominal Impedance    8Ω Compatible
Minimum Impedance    3.9Ω
Frequency Response (+/-3dB)    70Hz ~ 22kHz
Bass Extension (-6dB)    65Hz
Crossover Frequency    1.5kHz,4.4kHz
Dimensions (HxWxD)    245 x 400 x (145+10)mm
Net Weight    11.8kg/pcs

Wharfedale WCM-80
Type
- Speaker: Mono
- Power: Passive
- Enclosure: Open design
- Tweeter: Pivoting
- Bass: Fixed flat (8")
- Build: Circular, White (Paintable)

Dimensions
- 268mm (Diameter) x 108mm
- Cutout diameter: 245mm
- Mounting depth: 103mm

Performance
- Freq range: 45Hz - 20kHz
- Impedance: 8 - 8 Ohms
- Compatible amp: 30 - 140W RMS
- Sensitivity: 87dB
- Sound pressure: 97dB
- Crossover: 12dB Per Octave

Net Weight - 1.8kg
