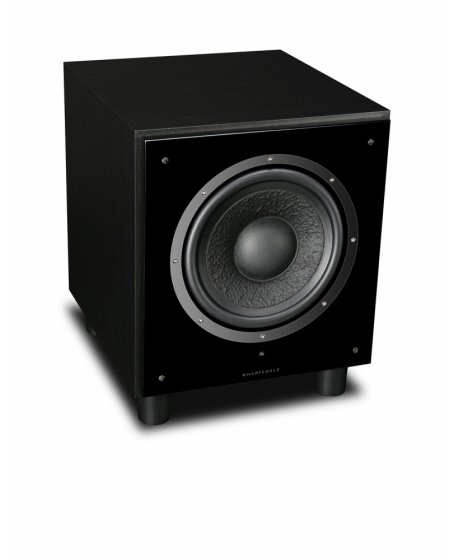

SW-12

The SW series of subwoofers offer a level of performance previously unheard of in their class. Revolutionary drive units, amplifier modules and filter stages feature on every model. They strike the perfect balance between power and sound quality, offering remarkable sound pressure levels, yet retaining enough control to be considered audiophile in quality.

SW系列低音炮提供了同类产品中前所未有的性能水平。每种型号都有革命性的驱动单元，放大器模块和滤波器级。它们在功率和声音质量之间达到了完美的平衡，提供了卓越的声压级，但仍保留了足够的控制权，可以认为是发烧级的声音。

The new range of SW subwoofers comes with a host of new features. They now come with Non-pressed paper cones for increase self-damping, improved transient impact and intern increased the structural rigidity of the cone itself. The centre vents are copper lined to reduce the magnetic distortion and improve the heat dissipation.

新系列的SW超低音扬声器具有许多新功能。现在，它们带有非压制纸锥，可增加自阻尼，改善瞬态冲击，并提高实习生锥本身的结构刚度。中心通风孔衬有铜衬，以减少磁失真并改善散热。

Still utilising the solid, well-engineered power amplifiers the SW subwoofers are optimised for high impact at low frequencies and are ideal for movies or music. With the various finishes to the cabinets – Blackwood Vinyl with Hi-gloss baffle – these subwoofers look great with matching floorstanding speakers.

SW低音炮仍利用坚固，设计精巧的功率放大器进行了优化，可在低频下产生高冲击力，是电影或音乐的理想选择。音箱的饰面-黑木乙烯树脂，带高光泽隔板，这些低音炮搭配相匹配的落地式扬声器看起来很棒。

Description/Format    Active Dynamic-Drive IB subwoofer system
Drive Units    1 x (12”)300mm cone long-throw
Frequency Response    35- 120Hz ±3dB
Amplifier Power Output    300W
Peak Power Output    450W
Line Input Sensitivity    200mv for maximum output
Crossover Range    30 - 150Hz
Inputs    "Stereo Line In (2 x RCA Phono)
Mono (LFE) Line In (RCA Phono)
Input Impedance    Line Input 10kΩ
LFE 5kΩ
Signal-to-noise ratio (S/N)    ≥85dB
Avg. Max Output @1m    118dB
Features    Phase inversion, Auto on-off
Dimensions    Height: (430+58)mm(with feet)
Width: 395mm
Depth: (442+15)mm
Net weight    22.1kg
