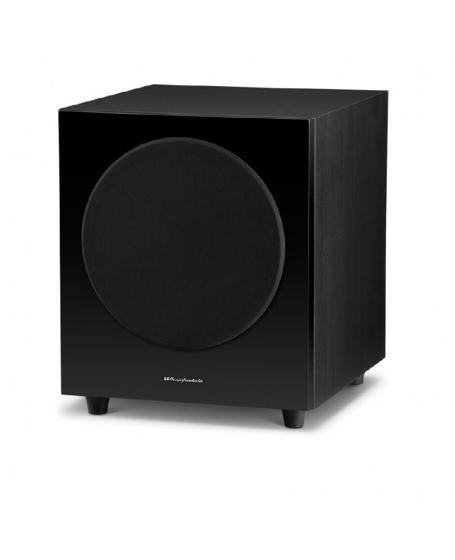

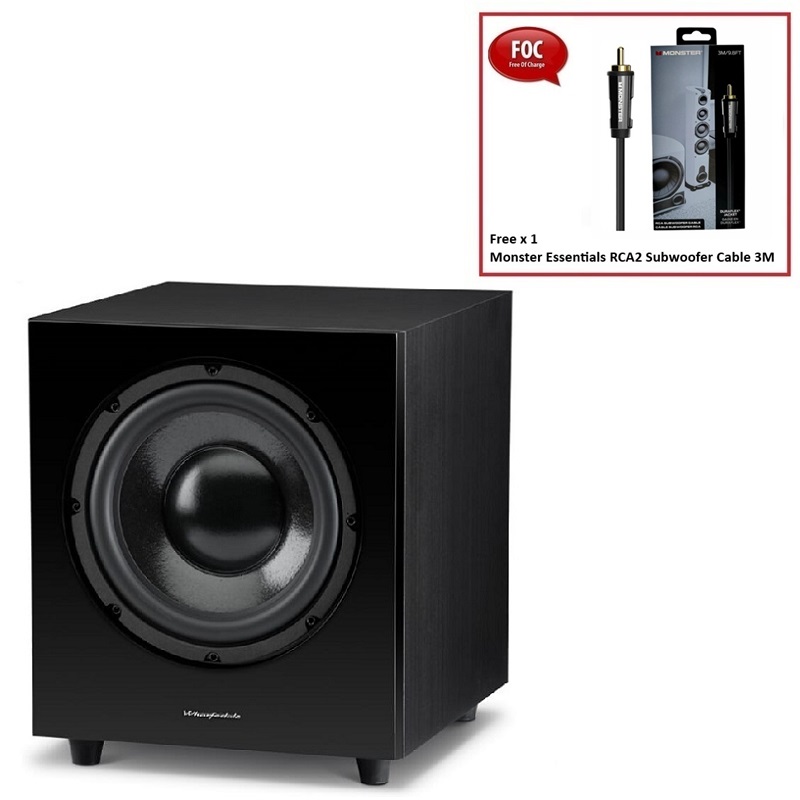

WH-D8

The D8 and D10 subwoofers are the perfect way of enhancing your stereo or home system to produce an excellent low-end performance. The cabinet construction of the D8 has been aesthetically enhanced, with new high-gloss lacquered front baffles and cosmetically enhanced veneers. Not only is this a significant improvement, but the new look is also designed to match perfectly with the new and award-winning Diamond 200 series, which is already gaining outstanding reviews internationally.

Aside from newly improved aesthetics, the two new subwoofers are built to elevate the performance of any AV setup. The D8 features an active dynamic drive subwoofer system in a sealed box, providing fast, accurate, and intensive bass response. The D10 also employs a custom-designed class-d balanced drive power amplifier which provides power and dynamics unheard of in products at a comparable.

Key Features

• Low pass filter slope continuously adjustable from 40Hz – 150Hz
• Phase invert switch
• Low-frequency bass extension (below 30Hz), with a wide 86dB dynamic range
• Low-level inputs, dedicated LFE input
• Auto power sensor

Description/Format    Active Reflex Subwoofer System
Drive Units    1 x (8'') 200mm Cone Long-throw
Enclosure Type    Vented Box
Frequency Response (+/-3dB)    30Hz - 200Hz
Bass Extension    30Hz
Amplifier Power Output    70W
Peak Power Output    150W
Line Input Sensitivity    200mV for Maximum Output
Crossover Range    40Hz - 150Hz
Inputs    Stereo Line In (2 x RCA Phono); Mono(LFE)Line In (RCA Phono)
Input Impedance    Line In: 20kOhms LFE: 5 Ohms
Signal-to-noise Ratio (S/N)    ≧86dB
Peak SPL    110dB
Features    Phase Inversion, Low Pass Filter Slope; Adjustment, Auto On/Off
Dimensions (H x W x D)    330 x 268 x 327 (mm)
Net Weight    8.6kg
