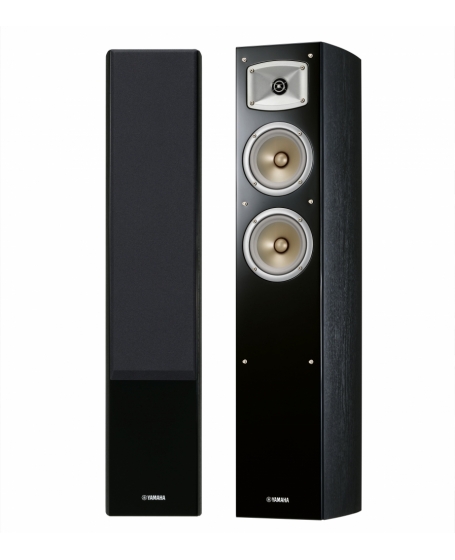

NS-F330

All-new high resolution compatible tweeter and PMD cone woofer. 2-way, 3-speaker floorstanding speaker unit that brings out subtle audio differences with all the latest music formats.

• New 3 cm (1”) aluminium dome tweeter compatible with high resolution sound sources
• PMD cone with a proven track record. A pair of 13 cm (5”) woofers produce massive, rich low-end
• Unique waveguide horn controls the directivity of the tweeter
• Rounded shape suppresses standing waves, and its double structure finish strengthens the front baffle
• Large, gold-plated screw terminals with bi-wiring connectivity
• Front baffle features a black or white mirror piano finish
• Beautiful black side panels with an elegant round shape

Supple and Clear Mid-to-High Range and Expansive Bass that Envelopes You

As a new cornerstone tallboy speaker equipped with a newly designed unit, this is a speaker system developed with music as its focus. It employs an all-new high resolution compatible dome tweeter that puts it in a different league from ordinary speakers that claim high resolution compatibility: 40 kHz. Equipped with dual woofers, its massive, expansive bass tones are more than a match for its high frequencies. It brings out all the subtle differences among a wide variety of music formats, from high resolution source sources to streaming to CDs.

Expansive, Glistening Sound. A New 3 cm (1”) Aluminium Dome Tweeter that Reproduces 45 kHz (–10 dB) High Frequencies

With the characteristics and sound quality you would expect from a next generation unit, it features a new structure that places an aluminium dome inside the voice coil. The aluminium’s Black Anodised processing suppresses the aluminium-specific character of its sound, producing a natural, glistening sound quality. The diffuser features a new shape, and the voice coil is comprised of CCAW (copper-coated aluminium wire) reengineered in material and linearity. While maintaining the amount of information and energy in the audible band, it achieves 45 kHz (–10 dB) reproduction with extended high frequencies. Compared to other speakers you will hear a whole new dimension of high resolution high frequency sound.

Tweeter Features a Unique Waveguide Horn for Directivity Control

The unique waveguide horn and tweeter utilise the same waveguide technology used for directivity control in studio monitor speakers to control the incidence of indirect sound. The vertical and horizontal directivity control provides an energy balance unaffected by the room environment.

Massive Rich and Mellow Low End. A Pair of 13 cm (5”) Woofers Utilising PMD Cones

The NS-F330’s 2-way, 3-speaker configuration employs the lightweight, high rigidity PMD cone and woofer used with proven success in Europe and Japan in the Modern Cherry Series, achieving ideal internal loss and high elasticity characteristics. The new design put both the voice coil and spider under the knife, achieving powerful but mellow deep tones. As a double woofer tallboy speaker, its low end is truly massive and expansive.

Rounded Front Baffle with Double Structure

The cabinet features a rounded shape that curves smoothly to both sides. By reducing the number of parallel surfaces it minimises standing waves and unwanted resonance. The front baffle has a double structure with a mirror-like piano finish. With reinforced strength, it produces more natural, extremely transparent high tones.

Massive Power for Optimum Sound Performance
