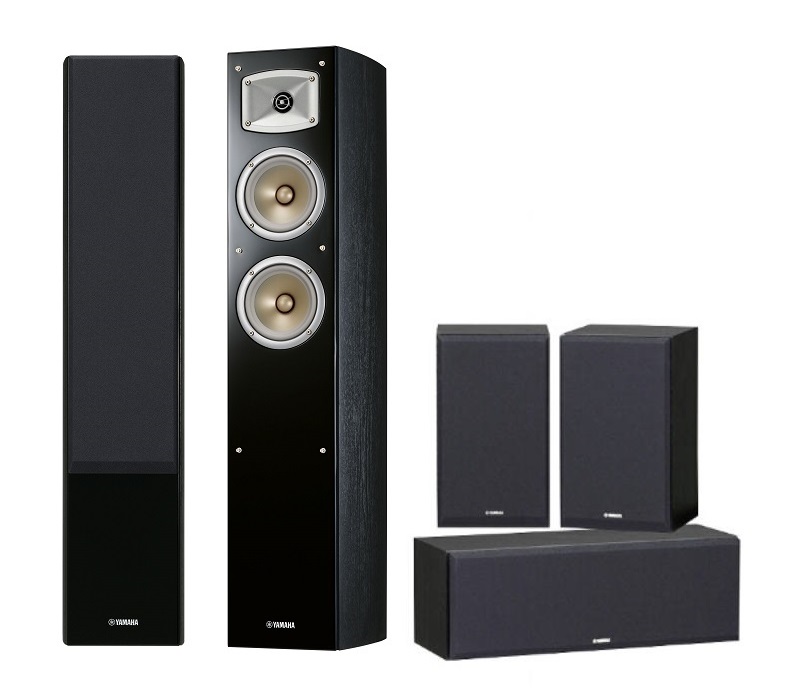

Yamaha NS-F330 + P350 Home Theatre 5.0 Speaker Package

Ready Stock

Yamaha NS-F330 + P350 Home Theatre 5.0 Speaker Package

SKU: Yamaha NS-F330 + P350

RM 4,399.00

Home Theatre 5Pc Speaker Package
18 Months Warranty By Yamaha Malaysia.

Get it with 0% Credit Card Instalment Plan Up to 36 months
1) Maybank Credit Card up to 12 months ( Lazada )
2) Maybank Credit Card up to 18 months ( Shopee )
3) PBB Credit Card up to 12 months ( Shopee )
4) OCBC Credit Card up to 36 months ( SLAV )

Description
Specification

NS-F330

All-new high resolution compatible tweeter and PMD cone woofer. 2-way, 3-speaker floorstanding speaker unit that brings out subtle audio differences with all the latest music formats.

New 3 cm (1”) aluminium dome tweeter compatible with high resolution sound sources
PMD cone with a proven track record. A pair of 13 cm (5”) woofers produce massive, rich low-end
Unique waveguide horn controls the directivity of the tweeter
Rounded shape suppresses standing waves, and its double structure finish strengthens the front baffle
Large, gold-plated screw terminals with bi-wiring connectivity
Front baffle features a black or white mirror piano finish
Beautiful black side panels with an elegant round shape

Supple and Clear Mid-to-High Range and Expansive Bass that Envelopes You

As a new cornerstone tallboy speaker equipped with a newly designed unit, this is a speaker system developed with music as its focus. It employs an all-new high resolution compatible dome tweeter that puts it in a different league from ordinary speakers that claim high resolution compatibility: 40 kHz. Equipped with dual woofers, its massive, expansive bass tones are more than a match for its high frequencies. It brings out all the subtle differences among a wide variety of music formats, from high resolution source sources to streaming to CDs.

Expansive, Glistening Sound. A New 3 cm (1”) Aluminium Dome Tweeter that Reproduces 45 kHz (–10 dB) High Frequencies

With the characteristics and sound quality you would expect from a next generation unit, it features a new structure that places an aluminium dome inside the voice coil. The aluminium’s Black Anodised processing suppresses the aluminium-specific character of its sound, producing a natural, glistening sound quality. The diffuser features a new shape, and the voice coil is comprised of CCAW (copper-coated aluminium wire) reengineered in material and linearity. While maintaining the amount of information and energy in the audible band, it achieves 45 kHz (–10 dB) reproduction with extended high frequencies. Compared to other speakers you will hear a whole new dimension of high resolution high frequency sound.

Tweeter Features a Unique Waveguide Horn for Directivity Control

The unique waveguide horn and tweeter utilise the same waveguide technology used for directivity control in studio monitor speakers to control the incidence of indirect sound. The vertical and horizontal directivity control provides an energy balance unaffected by the room environment.

Massive Rich and Mellow Low End. A Pair of 13 cm (5”) Woofers Utilising PMD Cones

The NS-F330’s 2-way, 3-speaker configuration employs the lightweight, high rigidity PMD cone and woofer used with proven success in Europe and Japan in the Modern Cherry Series, achieving ideal internal loss and high elasticity characteristics. The new design put both the voice coil and spider under the knife, achieving powerful but mellow deep tones. As a double woofer tallboy speaker, its low end is truly massive and expansive.

Rounded Front Baffle with Double Structure

The cabinet features a rounded shape that curves smoothly to both sides. By reducing the number of parallel surfaces it minimises standing waves and unwanted resonance. The front baffle has a double structure with a mirror-like piano finish. With reinforced strength, it produces more natural, extremely transparent high tones.

Massive Power for Optimum Sound Performance

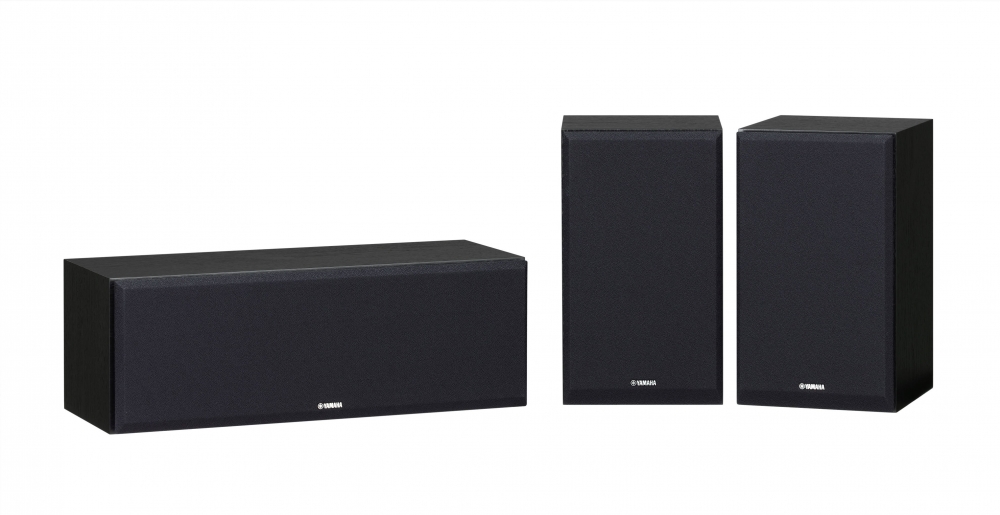

NS-P350

Producing finely detailed sound, this speaker package including a centre and two surround speakers is designed to team with the NS-F350 for a smooth, seamless surround sound field. Every channel features an all-new tweeter and PMD cone woofer. Enjoy every bit of audio data in the AV source with 5-channel output.

New 3 cm (1”) aluminium dome tweeter generates 45 kHz (–10 dB) high frequency reproduction that is truly outstanding
The 13 cm (5”) woofer features PMD cones that have a proven track record, produce massive, clear low frequencies
Unique waveguide horn that enhances the sound field sensation of theatre sound
Wall mountable

Yamaha’s Sound Concept: The Ability to Fully Play All the Latest AV Sources

If the sound quality is not good enough in 2-channel playback, there is no chance of properly reproducing the source in surround sound. This is the idea that led to the development of these surround back and centre speakers for a 5-channel system. Both speakers use an all-new tweeter and PMD cone woofer combination. They have large cabinets to handle audio-rich data, ensuring that expansive and seamless theatre sound will fill your room.

Expansive, Glistening Sound. A New 3 cm (1”) Aluminium Dome Tweeter that Reproduces 45 kHz (–10 dB) High Frequencies

As a next-generation unit, the NS-PC350 and NS-PB350 employ a new structure that puts an aluminium dome inside the voice coil. The aluminium’s Black Anodised processing suppresses the aluminium-specific character of the sound, providing expansive and accurate reproduction of the texture and nuance of the high frequencies. With a new diffuser shape and a new voice coil using CCAW (copper-coated aluminium wire) it achieves 45 kHz (–10 dB) reproduction with extended high frequency range while maintaining the amount of information and energy in the audible band.

Featuring a Unique Waveguide Horn that Controls Directivity

Based on the idea of controlling spatial representation from the speaker, the waveguide horn directs the sound to reflect from walls and other surfaces. Thanks to the directivity of a left-right directional range of 135 degrees and a vertical range of 120 degrees optimised for home theatre use, it precisely recreates the sound field while minimising the impact of the room.

Supple and Strong. 13 cm (5”) Woofer Utilises a PMD Cone with a Proven Track Record in Europe and Japan

Incorporating 30% high quality white mica, the 13 cm (5”) woofer utilises a lightweight, high rigidity PMD (Polymer-injected Mica Diaphragm) cone that achieves ideal internal loss and high elasticity characteristics. The new design put both the voice coil and spider under the knife, achieving massive, expansive low tones.

Wall Mountable

The NS-PC350 and NS-PB350 have keyholes on the back so they can be quickly and securely wall mounted.

NS-F330
Specifications
Type   2-way bass-reflex floorstanding speakers
Woofers   Dual 13cm (5”) cone
Tweeter   3cm (1”) aluminium dome
Frequency Response   40 Hz–45 kHz
Nominal Input Power   50 W
Maximum Input Power   200 W
Sensitivity   89 dB/2.83 V/1 m
Crossover Frequencies   3.2 kHz
Impedance   6 ohms
Dimensions (W x H x D)   202 x 950 x 297 mm; 8” x 37-3/8” x 11-3/4”
Weight   18.2 kg; 38.8 lbs./unit

NS-P350
Specifications
Type   2-way acoustic suspension (NS-PC350) / 2-way bass-reflex (NS-PB350)
Center Speaker   Woofers   Dual 13cm (5”) cone
Tweeter   3cm (1”) aluminium dome
Frequency Response   58 Hz–45 kHz
Nominal Input Power   100 W
Maximum Input Power   200 W
Sensitivity   90 dB/2.83 V/1 m
Crossover Frequencies   2.8 kHz
Impedance   6 ohms
Dimensions (W x H x D)   500 x 174 x 202 mm; 19-5/8” x 6-7/8” x 8”
Weight   6.3 kg; 13.9 lbs./unit
Surround Speaker   Woofers   13cm (5”) cone
Tweeter   3cm (1”) aluminium dome
Frequency Response   57 Hz–45 kHz
Nominal Input Power   50 W
Maximum Input Power   150 W
Sensitivity   88 dB/2.83 V/1 m
Crossover Frequencies   3 kHz
Impedance   6 ohms
Dimensions (W x H x D)   186 x 320 x 208 mm; 7-3/8” x 12-5/8” x 8-1/4”
Weight   4.8 kg; 10.9 lbs./unit
