TRUE X BAR 50A

Dolby Atmos Sound bar with Wireless Subwoofer

Make a true home theater in any space. The TRUE X BAR 50A gives you the cinematic immersion of Dolby Atmos in a slim sound bar and powerful wireless subwoofer. Add portable wireless surround speakers for a flexible home theater. With Alexa Built-in, Wi-Fi and Bluetooth® none of your entertainment is left out of the fun!

• Dolby Atmos technology with up-firing drivers for more realistic and encompassing sound
• True X Surround ready: Add True X portable surround speakers for a flexible home theater (True X Speakers sold separately)
• Wireless subwoofer for deep bass that will rock your movies and your world
• Play music and podcasts with Bluetooth, AirPlay 2, Spotify Connect, and TIDAL Connect
• Alexa built-in for voice control of your sound bar, playing music, setting alarms and timers, controlling smart home devices and more
• Clear Voice for enhanced dialogue clarity
• Simple setup with HDMI or optical connections
• Wall-mountable with built-in keyholes

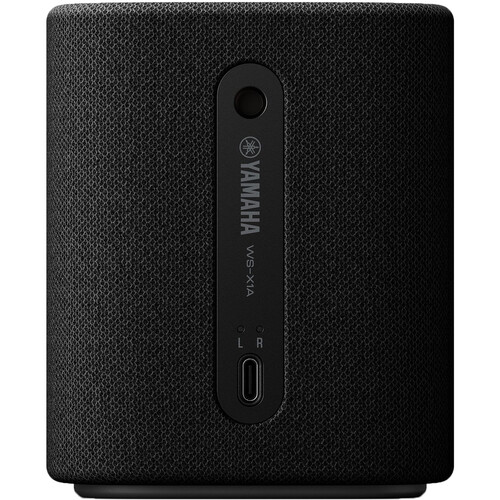

TRUE X SPEAKER 1A WS-X1A

True X Speaker. Bluetooth® and the dedicated rear speaker for True X Surround.

• True X Surround (Separately sold True X bars are required to play contents with True X surround.)
• Bluetooth®
• IP67 grade (waterproof and dust resistant)
• 55 mm Speaker Unit x 1
• Battery charge via USB Type-C connection
• Up to 12 hours of playback on a full charge (approx. 3 hours)
• 88 x 105 x 88 mm (W x H x D)
• Wall mountable with key hole for a unified coarse screw

THE TRUE X SERIES REDEFINES HOME ENTERTAINMENT

Discover a revolutionary new crossover in sound. The True X Series brings together the cinematic immersion of Dolby Atmos® for your TV with the freedom of portable speakers you can take anywhere, at the touch of a button. True X sound bars along with True X speakers create True X Surround: exhilarating realism and clarity for your movies and games with remarkable flexibility.

IMMERSIVE AND FLEXIBLE REAL SURROUND SOUND

If you thought you knew what a home theater was, think again. Escape in your favorite movies and music with the freedom of easy placement. The True X bars connect wirelessly to the surround True X speakers, which can be put anywhere in your room. Set your sound free.

True X speakers and sound bars sold separately.

ULTIMATE PORTABILITY

Portable. Flexible. Rechargeable. The True X speakers also function as portable Bluetooth® speakers. Just hit the Solo button and you've got music wherever you go!

MUSIC IS LIFE

True X lets you take your entertainment anywhere you want, anytime you want. And the more you use it, the more it blends into your daily life. Create the soundtrack to your life!

True X speakers and sound bars sold separately.

YAMAHA TRUE SOUND WITH DOLBY ATMOS®

Enter an exciting new sonic world where our unique True Sound heritage intersects with Dolby Atmos®— and creates a breathtakingly three-dimensional state-of-the-art sound space.

AMAZINGLY WIDE SOUND FIELD

The sonic possibilities created by height speakers are stunning and beyond what you can imagine. Carefully selected by our sound engineers, these speakers produce a three-dimensional sound field to create spatial depth not found in any other manufacturer.

ROOM-FILLING BASS

Ready to feel like you are in the middle of the action? With a wireless subwoofer, the True X Bar 50A adds powerful and expressive bass that transforms your space into a sonic universe that you can feel.

THE OPTIMAL EXPRESSION OF TRUE SOUND

The True X Bar 50A has been engineered for true sound optimization. Everything from the rear chamber to the uniquely designed bass reflex port to the fabric were chosen for their ability to reproduce delicate nuances in sound.

THIS IS YOUR NEW ENTERTAINMENT HUB

CONNECT TO YOUR MUSIC

Discover new music with Spotify Connect, TIDAL Connect and AirPlay 2 via the dedicated smartphone app.

RESPONDS TO YOUR VOICE

No need for a remote control or even an app! Control volume, inputs and music just by giving vocal commands.

CONTROL-LINKED TO YOUR TV

Since it features HDMI-CEC and eARC compatibility, you can connect to a TV with a single cable, and use your TV remote control to operate basic functions on the True X Bar, like on/off and volume.

OTHER ADVANCED FEATURES

CLEAR VOICE

Find it hard to hear TV dialogue? Our Clear Voice technology makes human voices more audible. Hear every word—from YouTube videos to movies and shows, especially when background music and sound effects try to take center stage.

FOUR SOUND MODES

With four different sound modes, you can match the sound to your content and mood. Stereo mode works great for music and podcasts. Standard mode is ideal for TV programs. Try Game mode to immerse yourself in your latest battle, and use Movie mode to create an expansive theater experience.

BASS EXTENSION

The SR-X50A incorporates a built in 3" subwoofer units. In addition to the 6.3" wireless subwoofer, Bass Extension enhances any bass signal to ensure a rich and powerful sound.

APP

SOUND BAR CONTROLLER

The Sound Bar Controller app provides easy operation for select Yamaha Sound Bars using your smartphone and tablet device.

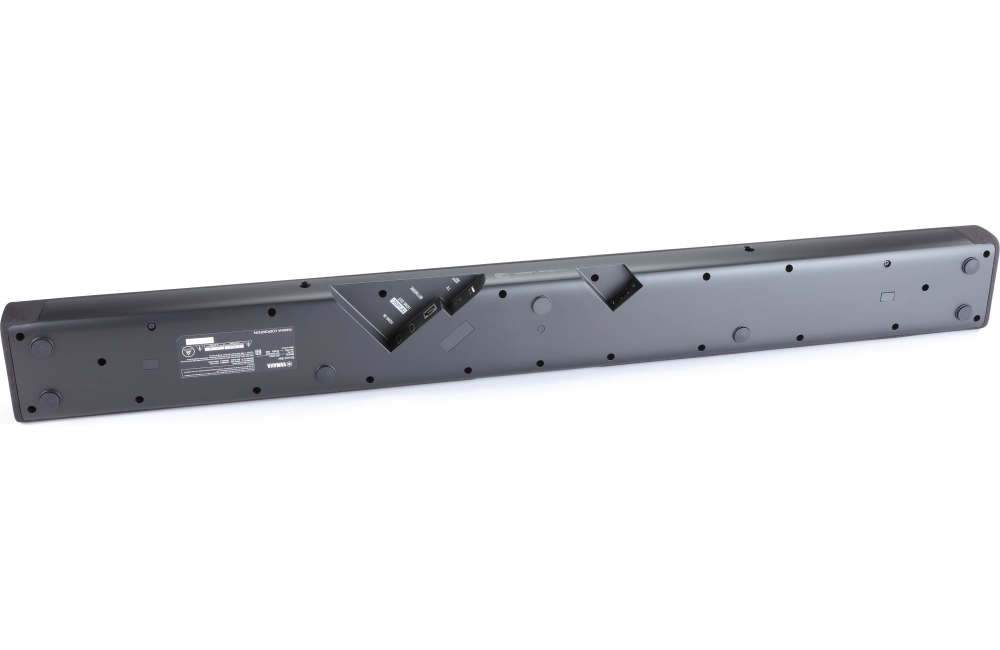

TRUE X BAR 50A
Sound Bars
General    Drivers    Front L/R: 1-3/4 × 2-5/8" cone × 2, Height L/R: 2" cone × 2, Built-in Subwoofer: 3" cone × 2 Subwoofer: 6.3" cone
Output Power    280 W (Front L/R: 30 W × 2-ch, Height L/R: 30 W × 2-ch, Built-in subwoofer: 30 W × 2, Subwoofer: 100W )
Power Consumption    Center unit: 36 W, Subwoofer: 18 W
Standby Power Consumption    0.5 W (HDMI control off, Bluetooth® standby off), 2.0 W (HDMI control on, Bluetooth® standby off), Subwoofer: 2.0 W
Dimensions (W x H x D)    Center unit: 40" × 2-1/2" × 4-3/8", Subwooer: 7-3/8” × 16” × 16-1/8”
Weight    Center unit: 8.5 lbs, Subwoofer: 20.7 lbs
Input / Output    HDMI    1 in / 1 out (eARC)
Digital Optical    Yes
Subwoofer output    No
Analog Audio    No
HDMI    4K Pass-through    Yes
CEC    Yes
Auto Lip-Sync    max 500 msec
Sound Technology    Virtual Surround Technology    Dolby Atmos
Surround Mode    Stereo, Standard, Movie, Game
Compressed Music Enhancer    No
Bass Extended    Yes
Audio Formats    Dolby Digital    Yes
Dolby Pro Logic II    No
DTS Digital Surround    No
Connectivity    Built-in music streaming services    Yes
Wi-Fi    Yes
AirPlay    AirPlay 2
Bluetooth Version/Profile    Version: Ver 5.0 / Profiles: A2DP / Codecs: SBC, AAC
Bluetooth Maximum Communication Range    Approx. 33 ft (without obstructions)
Wireless Subwoofer    Yes
Other Features    App Control    Yes (Sound Bar Controller)
Learning Function    No
Front Surround System
HDMI    eARC/ARC    eARC/ARC
Connectivity    MusicCast Surround    No
Other Features    True X Surround    Yes

TRUE X SPEAKER 1A
DESKTOP AUDIO SYSTEM
Wi-Fi    No
MusicCast Surround    No
MusicCast Stereo    No
True X Surround    Yes
AirPlay    No
Bluetooth    Version/Profile    Ver. 5.0 / A2DP, AVRCP
Maximum Communication Range    10 m / 32.8 ft. 10 in. (without interference)
Ethernet    No
Alarm    No
Speaker Unit    55 mm (2-1/8") full range x 1, Passive radiator x 2
Maximum Output Power    10 W (1 kHz, 10 % THD)
Power Supply    USB Type C or Charging teminal (CC-T1A)
Battery    Continuous Playback Time    Up to 12 hrs
Charging Time    Approx. 3 hrs
Waterproof Rating    IP67
Dimensions (W x H x D)    88 × 105 × 88 mm; 3-1/2" × 4-1/8" × 3-1/2"
Weight    0.50 kg; 1.10 lbs
Colours    Black, Carbon Gray, Light Gray
