Z30 PRO

Functional overview

*New generation Amlogic S928X-K 64-bit penta-core A76 + A55 high-performance multi-functional processor.
* 6GB DDR4 RAM + 64GB eMMC storage, providing smooth operation, meets the needs for installing numerous applications.
* HDMI 2.1® supports 8K 60Hz point-to-point output, supports HDR (HDR10/HLG/HDR10+/Dolby Vision).
*Supports AV1/VP9/H.265/AVS3/AVS2 video codecs, 12-bit, BT.2020 wide color range; supports Atmos/DTS X audio pass-through output.
* Built-in VS10 image quality engine is highly customizable, significantly improving image quality by custom mapping different video modes.

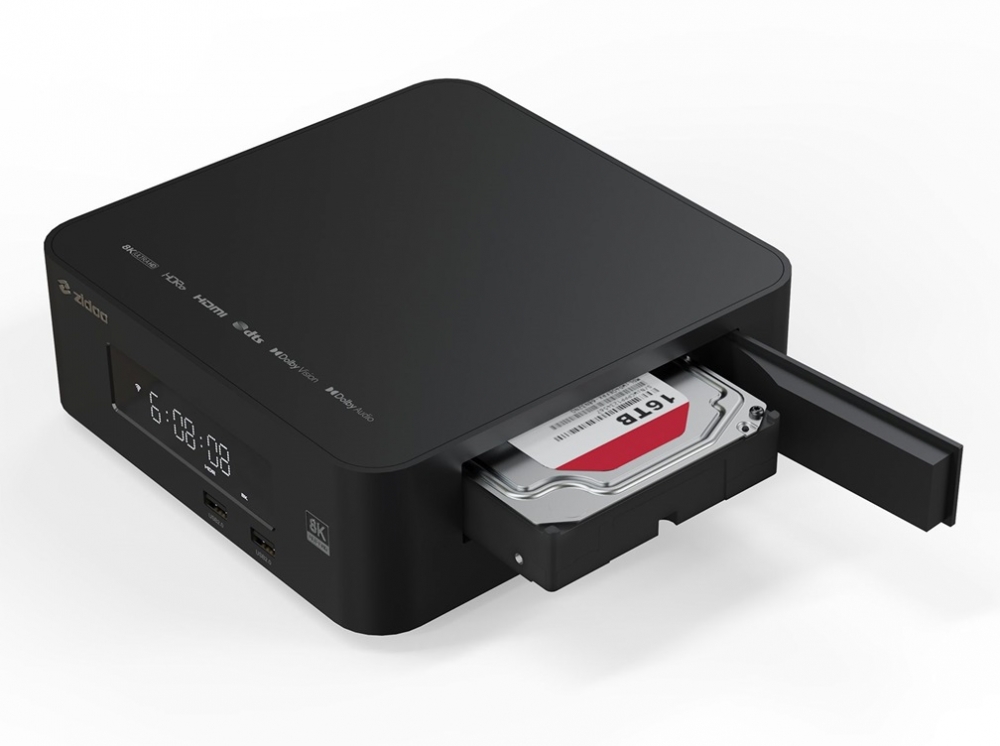

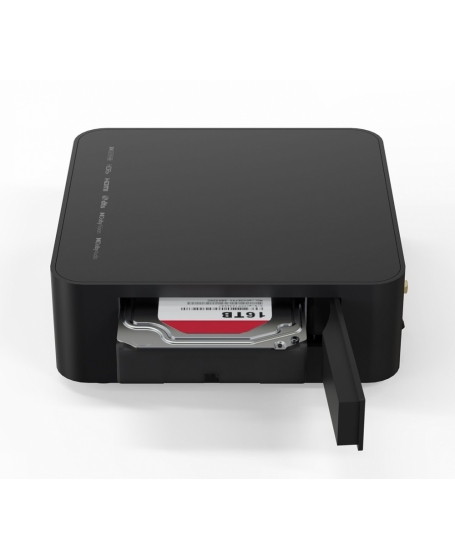

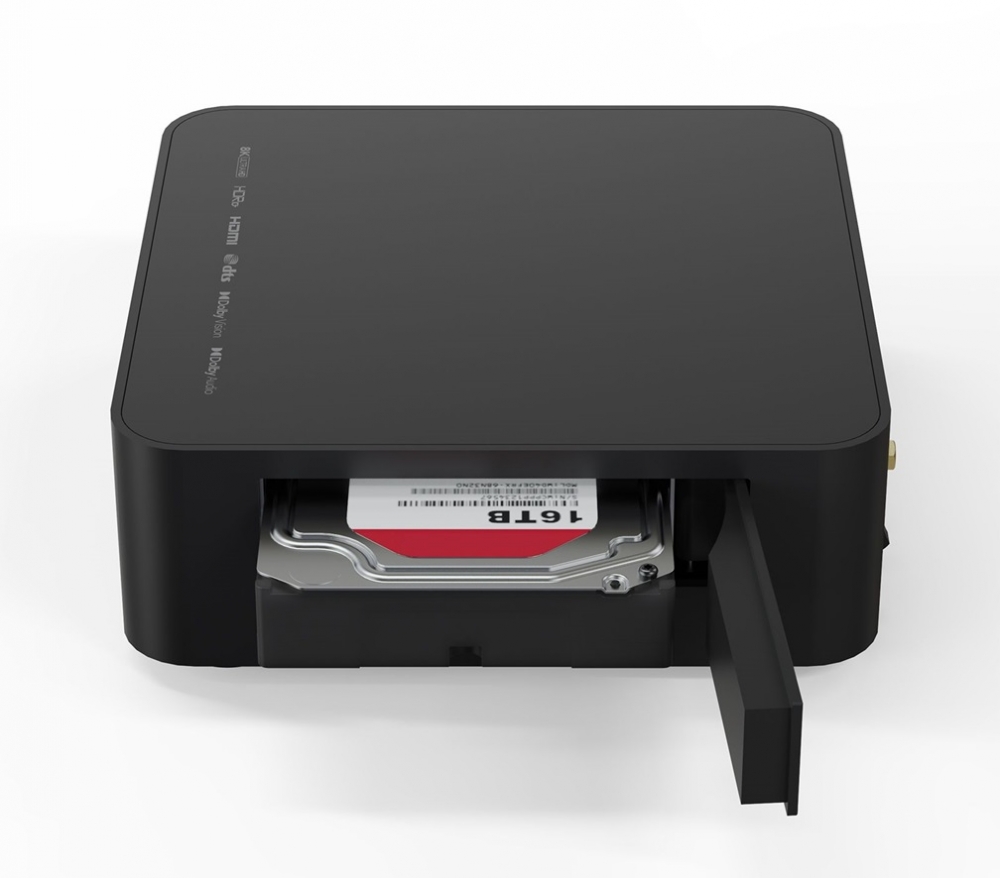

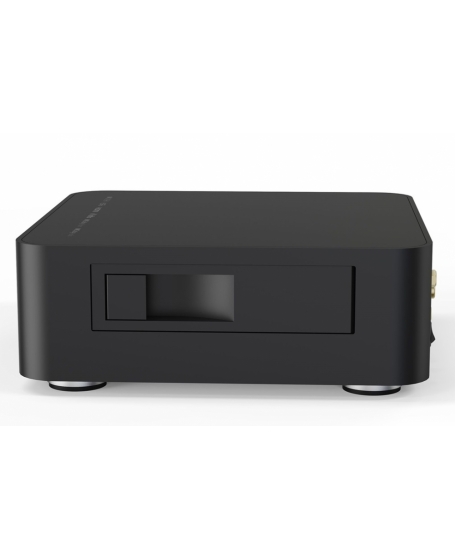

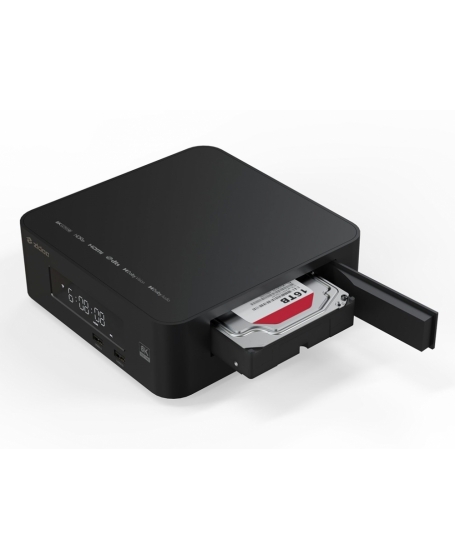

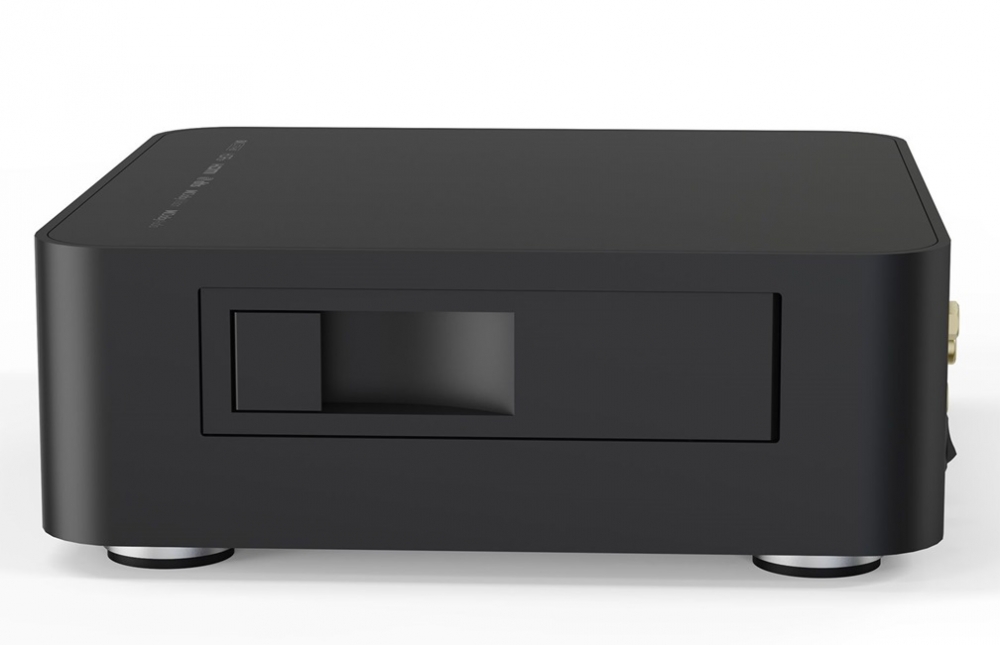

*Built-in HDD bay (SATA 3.5), supports loading 16TB large capacity SATA hard drive; also supports external CD-Rom to play original CDs.
*New Poster Wall 4.0 supports movie trailers and user-friendly custom classification and management.
*Supports lossless music playback in formats like DSD (SACD ISO, DSF, DFF), WAV, APE, DTS.
*Upgraded music player 8.0 with brand new UI main interface, supports lossless playback and decoding, personalized settings, song data matching.
*Supports multiple music streaming methods, such as DLNA, Tidal Connect, etc.
*Smooth Android 11 OS significantly improved system performance and stability.
*Processing HDR10 static metadata (MaxFall, MaxCll) more accurately which shows higher brightness and deeper darkness level.
*Supports acquiring and processing HDR10+ dynamic metadata, colors and brightness are processed frame by frame and scene by scene.
*Advanced Dolby Vision technology supports LLDV (Player Led) and Standard mode (TV Led) output.
*Automatic frame rate 23.976 and resolution switching output ensures smooth movie playback without interruption (supports local playback and online streaming).
*Supports BD/UHD Blu-ray menu playback and gapless branching playback of Blu-rays with complex MPLS structure.
*Supports special effect subtitles, automatic download of network subtitles; supports dual forced subtitles for Blu-ray and MKV.
*Supports access to network protocols like NFS, SMB v1/v2/v3, UPnP, Web DAV, and built-in SMB service.
*Supports standard WOL function; supports power-on and standby settings.
*Supports HDMI 2.1® CEC control, RS232 control, Control 4, seamless integration into smart home.
*Supports the exclusive Zidoo Controller APP for iOS and Android mobile phones, iPad landscape mode and Android tablet landscape mode, which can seamlessly play and control Zidoo media players.

Model Z30 PRO

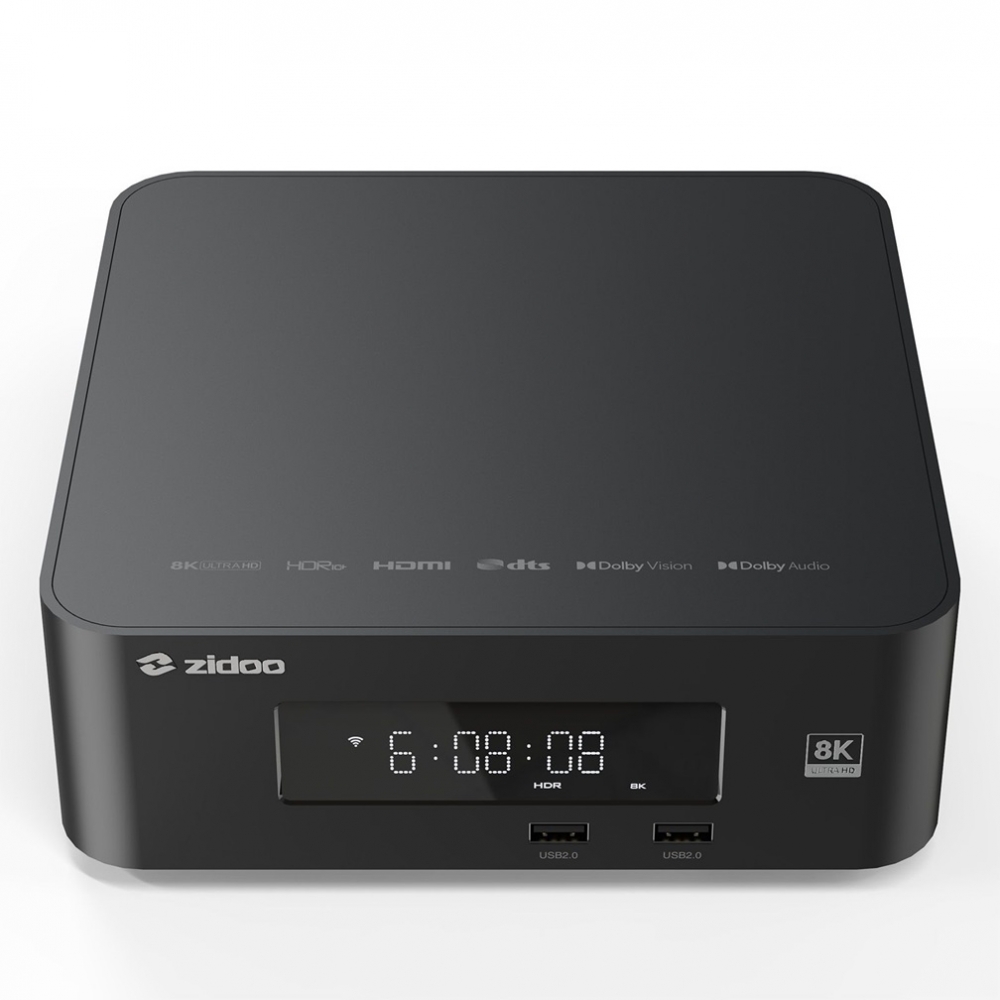

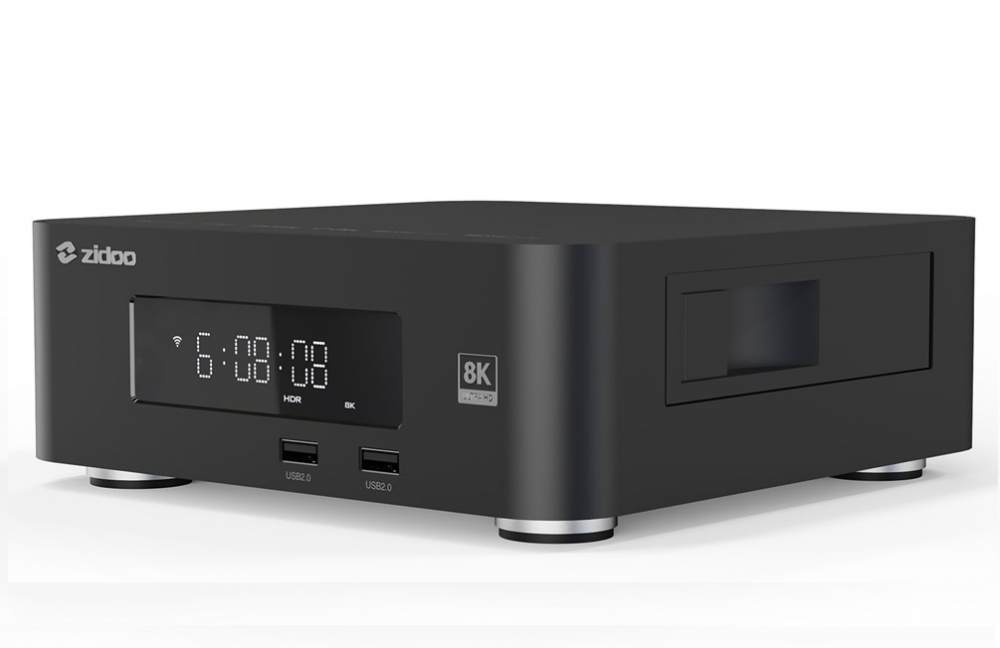

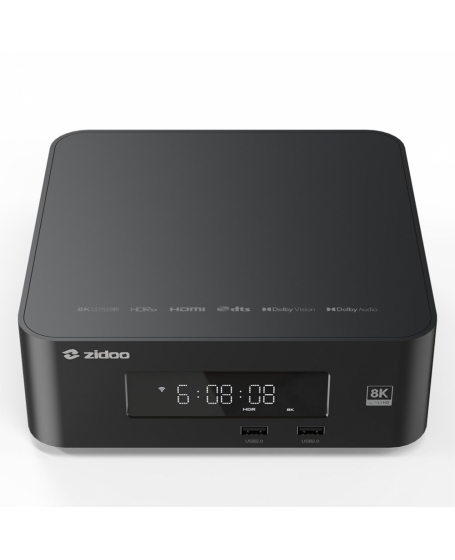

Display Screen LED

Chassis Aluminum Alloy

OS Android 11

CPU Amlogic S928X-K ARM Cortex-A76+Cortex-A55 (Penta-core)

GPU ARM Mali-G57 MC2

RAM 6GB DDR4

Internal Storage 64GB eMMC

Bluetooth BT 5.2

WiFi 2.4G + 5G dual-band WiFi, 802.11 a/b/g/n/AC/AX 2T2R , 802.11ax MIMO OFDM

Ethernet RJ-45 Ethernet jack (10/100/1000Mbps) * 1

HDMI Output HDMl2.1a, supports up to 8K@60p, HDR10+,12Bit color depth, BT2020 wide color range; Supports HDR10, HDR10+,HLG, Dolby Vision; Supports Dolby Atmos and DTs X audio pass-through

Video Decoding 8K@60p AV1/VP9/H.265/AVS3/AVS2; HDR10,HDR10+, HLG, Dolby Vision

Audio Decoding Supports Dolby/DTS format (supports up to Dolby TrueHD Atmos and DTS X)decoding

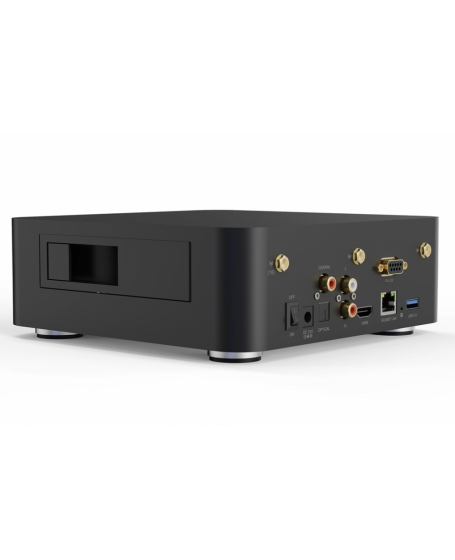

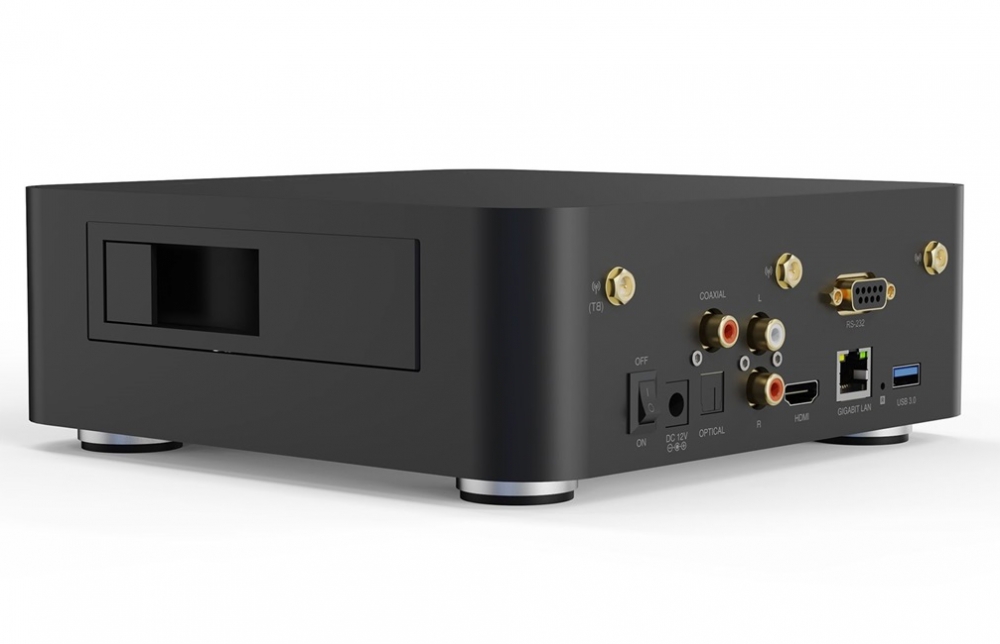

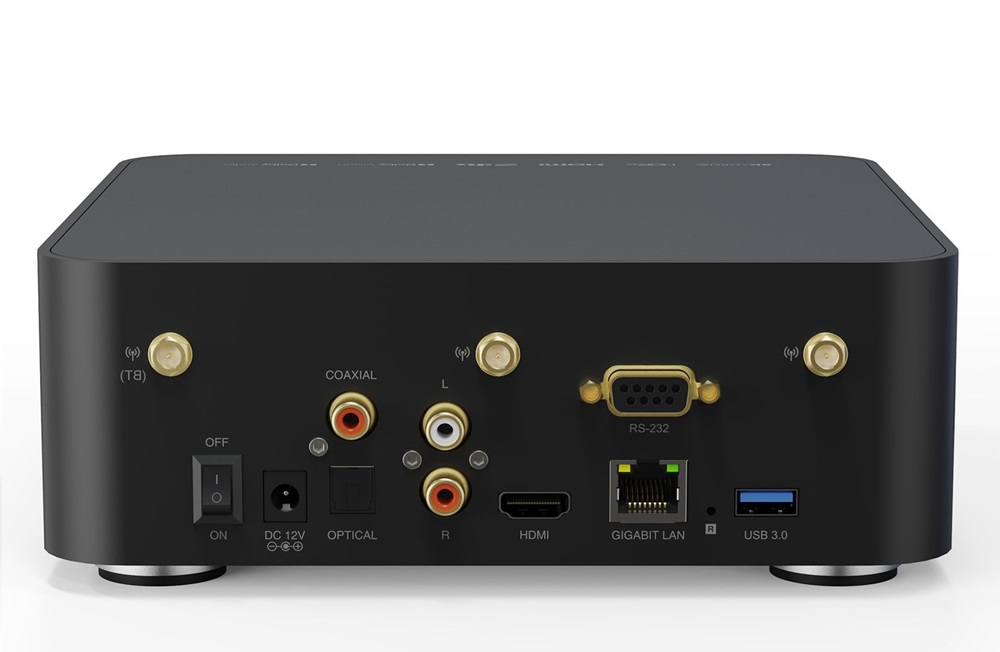

Audio Output USB output, Optical output*1,Coaxial output*1,RCA L/R channel output*1

Intelligent Control APP control for iPhone,iPad landscape mode,Android phone,Android tablet landscape mode, RS-232, TCP/IP control (supports WOL)

SATA SATA 3.0 * 1

USB USB 3.0 * 3 USB 2.0 * 2

Power Supply DC 12V/2A

Other Interface Infrared receiver*1,RS232*1

Accessories Remote control * 1 Power adapter * 1 SATA cable *1 HDMI cable *1 High-gain antennas * 3 User manual * 1

Dimensions 197mmx197mmx64.8mm

Product weight (excluding accessories): 1.4Kg
