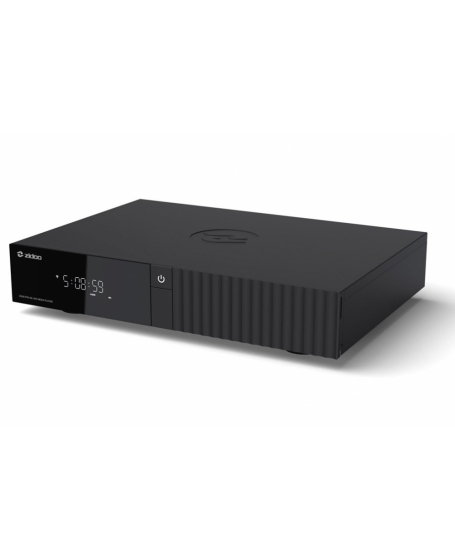

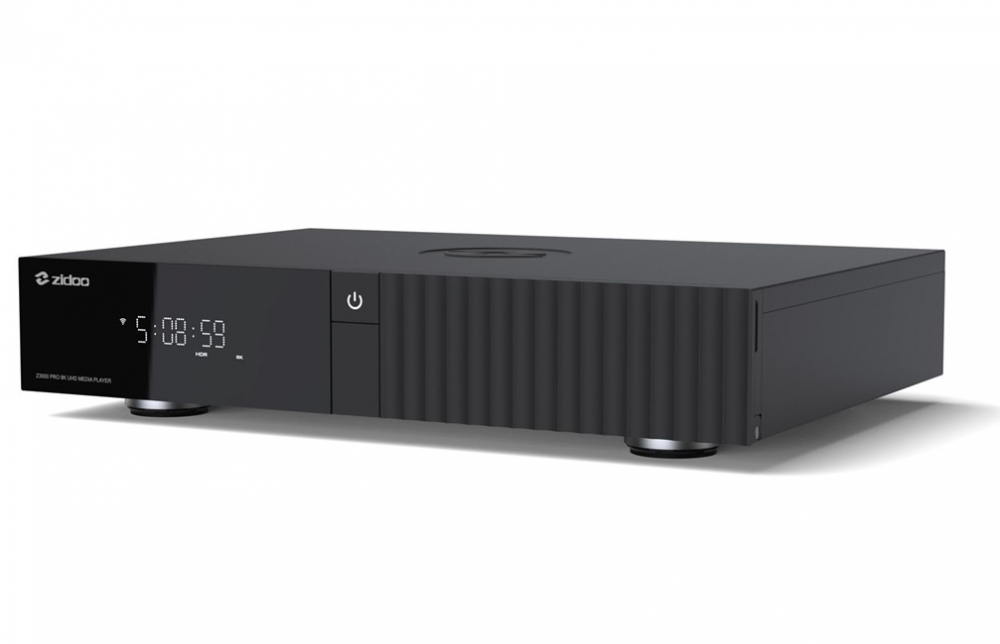

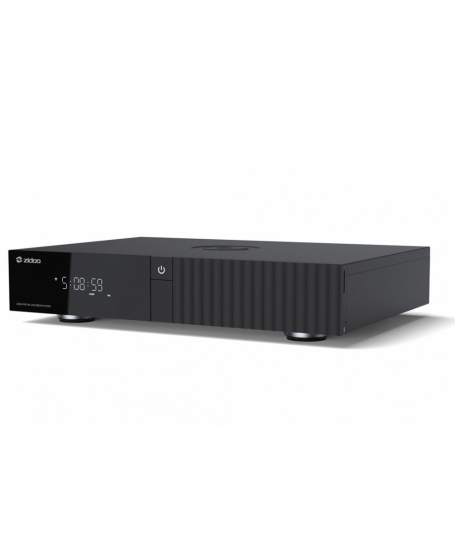

Z3000 PRO

Functional overview

*New generation Amlogic S928X-K 64-bit penta-core A76 + A55 high-performance multi-functional processor.
*8GB DDR4 RAM + 64GB eMMC storage, providing smooth operation, meets the needs for installing numerous applications.
*Dual HDMI audio and video separate output can enjoy 4K video and HD audio at the same time without upgrading AV receiver.
*Smooth Android 11 OS significantly improved system performance and stability.

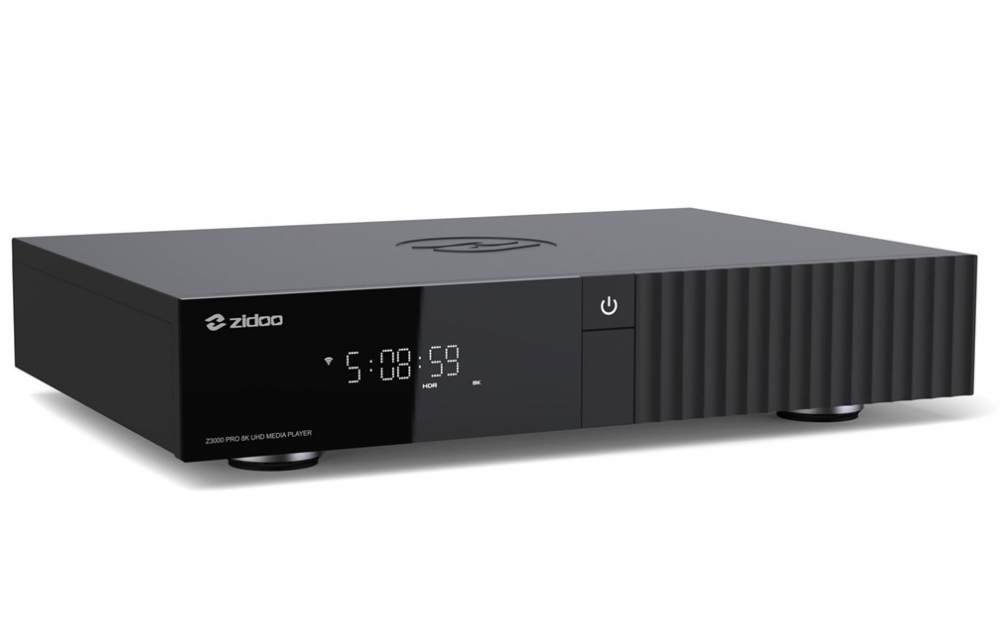

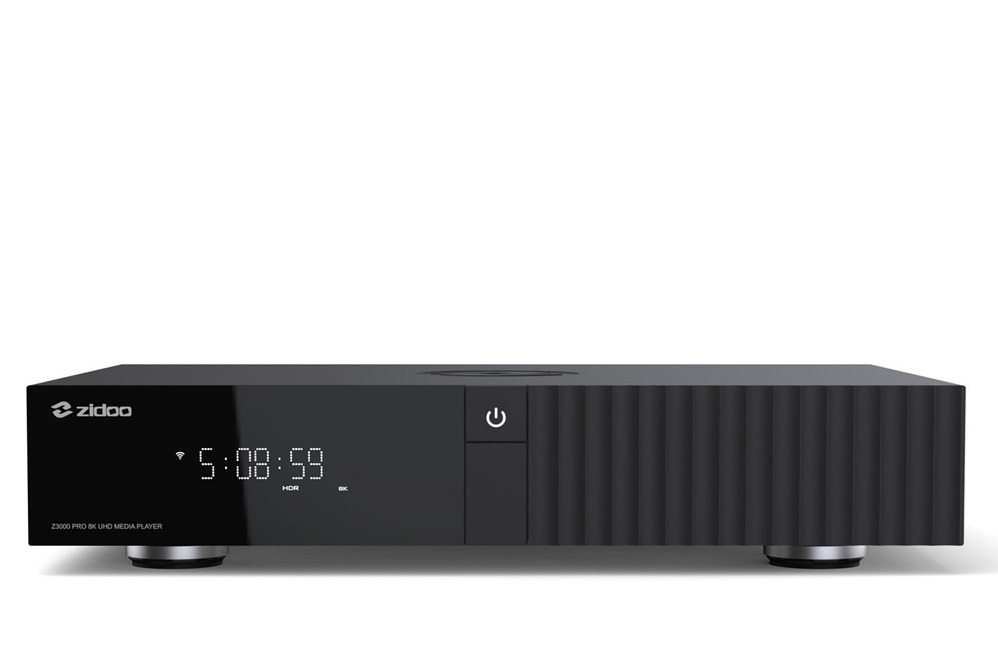

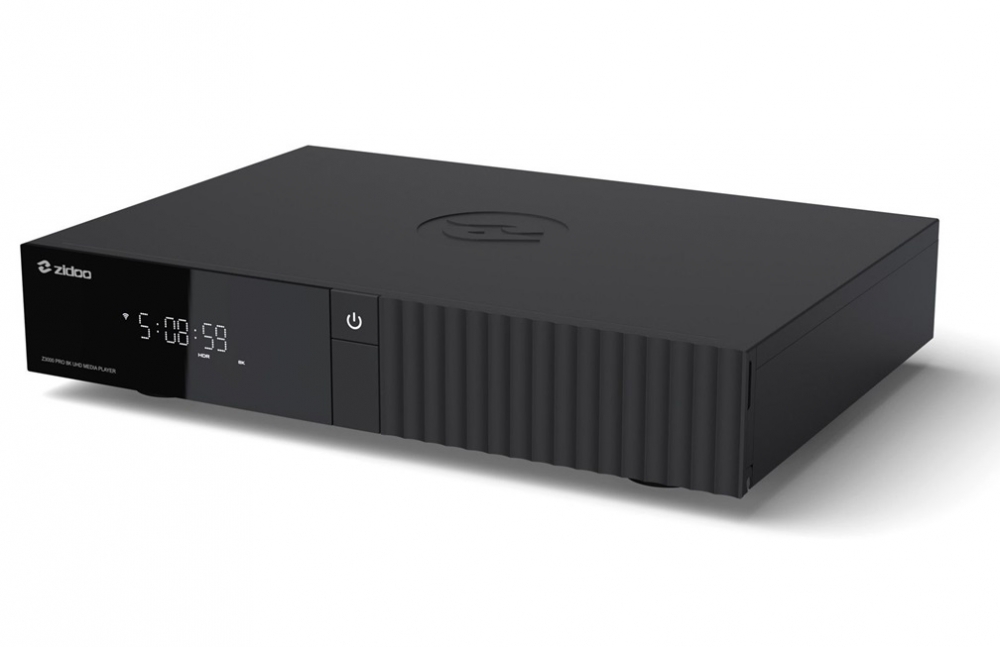

*Aluminum alloy brushed panel, large LED display panel, high quality switch power supply.
* Hidden NSS patented HDD bay supports capacity up to 16TB; Built-in Wi-Fi and BT Antenna.
*HDMI 2.1® supports 8K 60Hz point-to-point output, supports HDR (HDR10/HLG/HDR10+/Dolby Vision).
*Supports AV1/VP9/H.265/AVS3/AVS2 video codecs, 12-bit, BT.2020 wide color range; supports Atmos/DTS X audio pass-through output.
*Built-in VS10 image quality engine is highly customizable, significantly improving image quality by custom mapping different video modes.
*Processing HDR10 static metadata (MaxFall, MaxCll) more accurately which shows higher brightness and deeper darkness level.
*Supports acquiring and processing HDR10+ dynamic metadata, colors and brightness are processed frame by frame and scene by scene.
*Automatic frame rate 23.976 and resolution switching output ensures smooth movie playback without interruption (supports local playback and online streaming).
*Supports BD/UHD Blu-ray menu playback and gapless branching playback of Blu-rays with complex MPLS structure.
*Supports lossless music playback in formats like DSD (SACD ISO, DSF, DFF), WAV, APE, DTS.
*Supports special effect subtitles, automatic download of network subtitles; Zidoo is the only one among the field to support Blu-ray and MKV dual forced subtitle.
*Supports multiple music streaming methods, such as DLNA, Tidal Connect, etc.
*New Poster Wall 4.0 supports movie trailers and user-friendly custom classification and management.
*Upgraded music player 8.0 with brand new UI main interface, supports lossless playback and decoding, personalized settings, song data matching.
*Supports HDMI® CEC control, RS232 control, Control 4, seamless integration into smart home.
*Supports the exclusive Zidoo Controller APP for iOS and Android mobile phones, iPad landscape mode and Android tablet landscape mode, which can seamlessly play and control Zidoo media players.
*Supports access to network protocols like NFS, SMB v1/v2/v3, UPnP, Web DAV, and built-in SMB service.

Model Z3000 PRO

Display Screen LED

Chassis Material Aluminum Alloy

OS Android 11

CPU Amlogic S928X-K ARM Cortex-A76+Cortex-A55 (Penta-core)

GPU ARM Mali-G57 MC2

RAM 8GB DDR4

Internal Storage 64GB eMMC

Bluetooth BT 5.2

WI-FI 6 2.4G + 5G dual-band Wi-Fi, 802.11 a/b/g/n/ac/ax 2T2R , 802.11ax MIMO OFDM

Ethernet RJ-45 Ethernet jack (10/100/1000Mbps) * 1

HDMI Out (Main) HDMl 2.1a, supports up to 8K@60p, HDR10+,12Bit color depth, BT2020 wide color range; Supports HDR10, HDR10+,HLG, Dolby Vision; Supports Dolby Atmos and DTS X audio pass-through

HDMI Out (Audio Only) HDMI separate audio and video output, supports Dolby Atmos and DTS X audio pass-through, as well as multi-channel PCM and DSD output

Video Decoding 8K@60p AV1/VP9/H.265/AVS3/AVS2; HDR10, HDR10+, HLG, Dolby Vision

Audio Decoding Supports Dolby/DTS format (up to Dolby TrueHD Atmos and DTS X) decoding

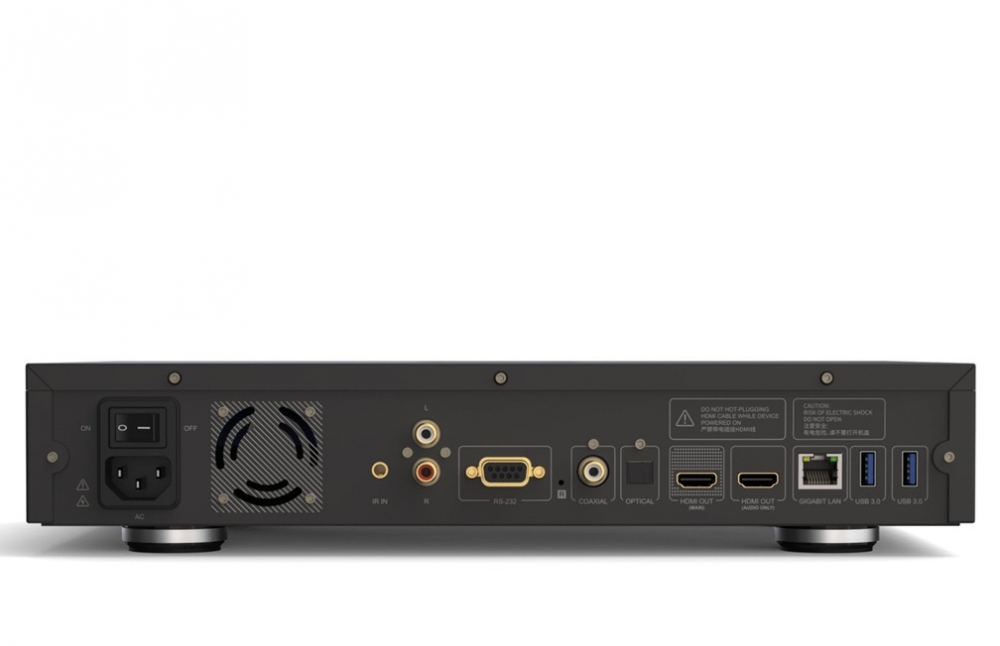

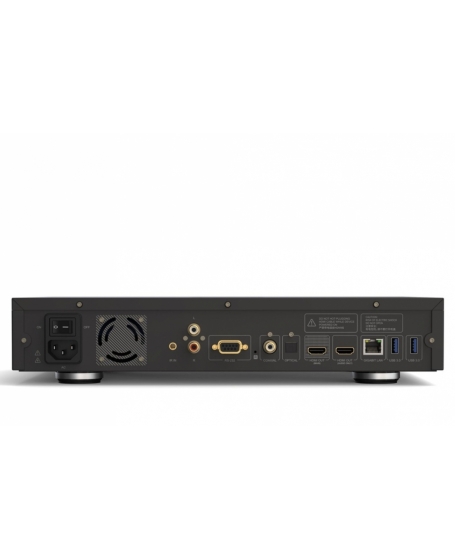

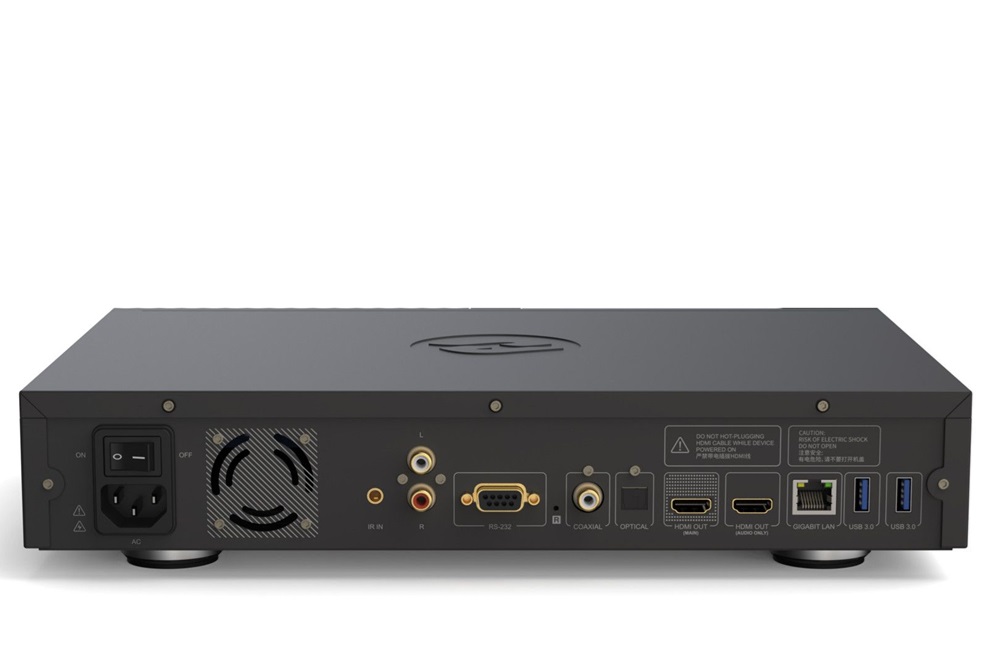

Audio Output USB output, Optical output*1, Coaxial output*1, RCA L/R channel output*1

Intelligent Control APP control for iPhone,iPad landscape mode,Android phone,Android tablet landscape mode, RS-232, TCP/IP control (supports WOL)

SATA One built-in 3.5''HDD bay with SATA 3.0 specification (HDD is not included)

USB USB 3.0 * 2, USB 2.0 * 1

Power Supply AC 110~120/220~240V 50/60Hz

Other Interface Infrared receiver*1, RS232*1, IR IN 3.5 headphone jack*1

Accessories Remote control * 1 Power adapter * 1 SATA cable *1 HDMI cable *1 User manual * 1

Dimensions 350mmx241mmx60mm

Product weight (excluding accessories): 2.9Kg
